This page has expired. Unfortunately this product is no longer available. Please view our full range of Fall Arrest Anchorage Devices or Contact us with your requirements for a possible suitable alternative.
This anchorage point is designed to be fitted into a pre-drilled hole on an existing steel structure to provide an anchorage point. It can then be removed after use and used elsewhere.
Specifications
Material treated steel.
Use vertical or horizontal.
Strength > 20 kN.
Hole diameter: 20 to 22 mm.
Inner eye diameter: 35 mm.
Vertical structure thickness, minimal thickness structure: 35 mm, maximum thickness 40 mm.
Horizontal structure thickness, minimum thickness 5 mm, maximum thickness 40 mm.
Weight 0.65 Kg
Complies with standards: CE0086, EN795 Class B, 0082/037/160/09/96/0200

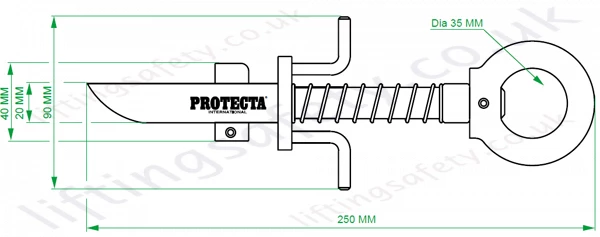

Dimensions
Pricing
Unfortunately, this product has been discontinued and/or is no longer available.
Please contact us for details on possible alternative products.
This page has expired. Unfortunately this product is no longer available. Please view our full range of Fall Arrest Anchorage Devices or Contact us with your requirements for a possible suitable alternative.
This anchorage point is designed to be fitted into a pre-drilled hole on an existing steel structure to provide an anchorage point. It can then be removed after use and used elsewhere.
Specifications
Material treated steel.
Use vertical or horizontal.
Strength > 20 kN.
Hole diameter: 20 to 22 mm.
Inner eye diameter: 35 mm.
Vertical structure thickness, minimal thickness structure: 35 mm, maximum thickness 40 mm.
Horizontal structure thickness, minimum thickness 5 mm, maximum thickness 40 mm.
Weight 0.65 Kg
Complies with standards: CE0086, EN795 Class B, 0082/037/160/09/96/0200
Dimensions
