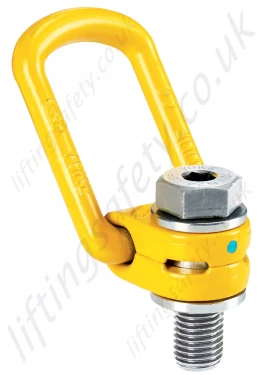

Yoke 'Type 211' Metric Thread Swivel Lifting Point, Standard Length Bolt, Thread Range from M8 to M48

Metric thread swivel hoist / rotating load rings / eye bolt with pivot link. WLL Range from 0.30t to 20t

Model:

YMTS-5233


Description

+
  • Lifting Point uses can be as follows:
    • Suited for lifting objects with no obvious attachment points
    • Mold and die handling
    • Pump and valve handling
    • Ideal for lashing attachment points
    • Suitable for attachment to lifting beams and spreader beams
  • Rotates through 360° and pivots 90°.
  • Manufactured from alloy steel, quenched and tempered.
  • Manufactured and tested in accordance with EN1677-1.
  • Certified by DGUV GS-OA 15-04.
  • Load-rated parts are 100% magnaflux crack detected.
  • Individual forged parts and cap screw are traceable to Test Certification.
  • Bolts are Metric thread (ASME / ANSI B18.3.1M).
  • Proof tested to 2.5 times the WLL.
  • Fatigue rated to 1.5 times the WLL.
  • Design Factor 4 : 1.
  • All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
  • Quick and simple assembly, just a tapped hole is required.

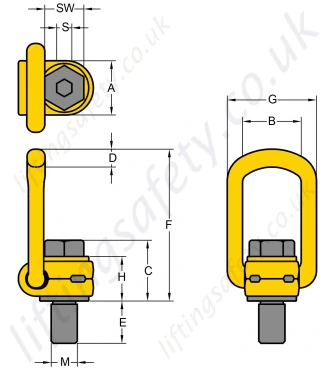

Yoke 211 Lifting Point Dimensions

Dimension & Specifications

WLL
tonnes		 Thread
M
mm		 A
mm		 B
mm		 C
mm		 D
mm		 E
mm		 F
mm		 G
mm		 H
mm		 S
mm		 SW
mm		 Torque
in Nm		 Mass
kg
0.3 M8 x 1.25 30 35 35 11 11 86 55 29 6 13 30 0.3
0.63 M10 x 1.50 30 35 36 11 16 86 55 29 6 17 60 0.4
1 M12 x 1.75 33 38 44 14 18 99 57 36 8 19 100 0.5
1.2 M14 x 2.00 33 38 45 14 21 99 57 36 10 22 120 0.5
1.5 M16 x 2.00 33 38 46 14 24 99 57 36 10 24 150 0.6
2 M18 x 2.50 50 54 57 16 26 143 82 44 12 30 200 1.3
2.5 M20 x 2.50 50 54 56 16 31 142 82 43 12 30 250 1.6
4 M24 x 3.00 50 54 59 16 36 143 82 44 14 36 400 1.9
4 M27 x 3.00 60 65 79 23 38 171 99 62 17 41 400 2.9
5 M30 x 3.50 60 65 81 23 49 170 99 62 17 46 500 3.1
7 M36 x 4.00 60 65 75 23 56 171 99 58 22 55 700 3.1
8 M36 x 4.00 77 85 101 27 62 225 124 78 22 55 800 5.9
10 M42 x 4.50 77 85 104 27 72 225 124 78 24 65 1000 6.3
15 M42 x 4.50 95 104 112 36 64 258 158 86 24 65 1500 10.9
20 M48 x 5.00 95 104 120 36 73 260 158 90 27 75 2000 12.1
Pricing

+
Part N° WLL (t) Thread (mm) Useable Thread Length (mm) Weight (kg) Unit Price Quantity
5233-T27347 0.3 M8 x 1.25 11 0.3 £  40.90
5233-T27348 0.63 M10 x 1.50 16 0.4 £  42.10
5233-T27349 1.0 M12 x 1.75 18 0.5 £  46.90
5233-T27350 1.2 M14 x 2.00 21 0.5 £  52.46
5233-T27351 1.5 M16 x 2.00 24 0.6 £  54.40
5233-T27352 2.0 M18 x 2.50 26 1.3 £  69.00
5233-T27353 2.5 M20 x 2.50 31 1.6 £  70.50
5233-T27354 4.0 M24 x 3.00 36 1.9 £  72.00
5233-T27355 4.0 M27 x 3.00 38 2.9 £  150.00
5233-T27356 5.0 M30 x 3.50 49 3.1 £  151.90
5233-T27357 7.0 M36 x 4.00 56 3.1 £  159.50
5233-T27358 8.0 M36 x 4.00 62 5.9 £  307.00
5233-T27359 10 M42 x 4.50 72 6.3 £  358.00
5233-T27360 15 M42 x 4.50 64 10.9 £  472.00
5233-T27361 20 M48 x 5.00 73 12.1 £  512.00
Add to Quote Basket   ?
  • Lifting Point uses can be as follows:
    • Suited for lifting objects with no obvious attachment points
    • Mold and die handling
    • Pump and valve handling
    • Ideal for lashing attachment points
    • Suitable for attachment to lifting beams and spreader beams
  • Rotates through 360° and pivots 90°.
  • Manufactured from alloy steel, quenched and tempered.
  • Manufactured and tested in accordance with EN1677-1.
  • Certified by DGUV GS-OA 15-04.
  • Load-rated parts are 100% magnaflux crack detected.
  • Individual forged parts and cap screw are traceable to Test Certification.
  • Bolts are Metric thread (ASME / ANSI B18.3.1M).
  • Proof tested to 2.5 times the WLL.
  • Fatigue rated to 1.5 times the WLL.
  • Design Factor 4 : 1.
  • All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.
  • Quick and simple assembly, just a tapped hole is required.
Yoke 211 Lifting Point Dimensions

Dimension & Specifications

WLL
tonnes		 Thread
M
mm		 A
mm		 B
mm		 C
mm		 D
mm		 E
mm		 F
mm		 G
mm		 H
mm		 S
mm		 SW
mm		 Torque
in Nm		 Mass
kg
0.3 M8 x 1.25 30 35 35 11 11 86 55 29 6 13 30 0.3
0.63 M10 x 1.50 30 35 36 11 16 86 55 29 6 17 60 0.4
1 M12 x 1.75 33 38 44 14 18 99 57 36 8 19 100 0.5
1.2 M14 x 2.00 33 38 45 14 21 99 57 36 10 22 120 0.5
1.5 M16 x 2.00 33 38 46 14 24 99 57 36 10 24 150 0.6
2 M18 x 2.50 50 54 57 16 26 143 82 44 12 30 200 1.3
2.5 M20 x 2.50 50 54 56 16 31 142 82 43 12 30 250 1.6
4 M24 x 3.00 50 54 59 16 36 143 82 44 14 36 400 1.9
4 M27 x 3.00 60 65 79 23 38 171 99 62 17 41 400 2.9
5 M30 x 3.50 60 65 81 23 49 170 99 62 17 46 500 3.1
7 M36 x 4.00 60 65 75 23 56 171 99 58 22 55 700 3.1
8 M36 x 4.00 77 85 101 27 62 225 124 78 22 55 800 5.9
10 M42 x 4.50 77 85 104 27 72 225 124 78 24 65 1000 6.3
15 M42 x 4.50 95 104 112 36 64 258 158 86 24 65 1500 10.9
20 M48 x 5.00 95 104 120 36 73 260 158 90 27 75 2000 12.1
Part N° WLL (t) Thread (mm) Useable Thread Length (mm) Weight (kg) Unit Price Quantity
5233-T27347 0.3 M8 x 1.25 11 0.3 £  40.90
5233-T27348 0.63 M10 x 1.50 16 0.4 £  42.10
5233-T27349 1.0 M12 x 1.75 18 0.5 £  46.90
5233-T27350 1.2 M14 x 2.00 21 0.5 £  52.46
5233-T27351 1.5 M16 x 2.00 24 0.6 £  54.40
5233-T27352 2.0 M18 x 2.50 26 1.3 £  69.00
5233-T27353 2.5 M20 x 2.50 31 1.6 £  70.50
5233-T27354 4.0 M24 x 3.00 36 1.9 £  72.00
5233-T27355 4.0 M27 x 3.00 38 2.9 £  150.00
5233-T27356 5.0 M30 x 3.50 49 3.1 £  151.90
5233-T27357 7.0 M36 x 4.00 56 3.1 £  159.50
5233-T27358 8.0 M36 x 4.00 62 5.9 £  307.00
5233-T27359 10 M42 x 4.50 72 6.3 £  358.00
5233-T27360 15 M42 x 4.50 64 10.9 £  472.00
5233-T27361 20 M48 x 5.00 73 12.1 £  512.00
Add to Quote Basket   ?
