RUD "RBG" & "VRBG" Bolt-on Load Rings, Metric thread Options - Range from 3000kg to 50000kg

Model:  RUD RBG/VRBG / BLR-57

Model
Quantity


Unit Price £ 69.49
Part N°: 57-183445   Add to Quote Request

Bolt-on Load Rings - RUD RBG/VRBG.

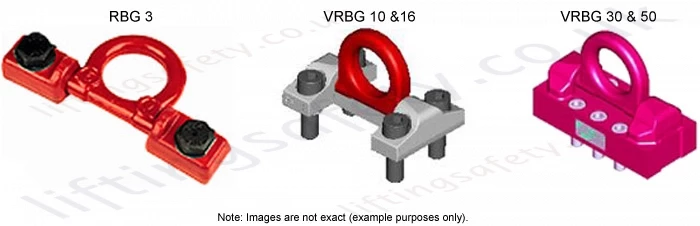

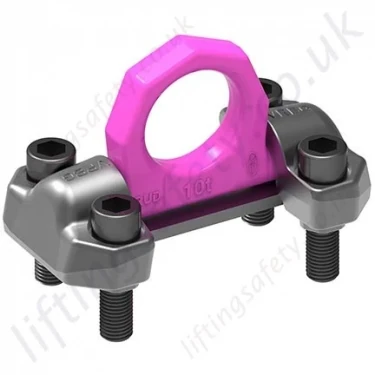

RUD Bolt on Load Rings - RBG 3 - VRBG 10 and 16 - VRBG 30 and 50

Lifting points ready for bolting with patented relief naps

Lifting points ready for bolting with patented relief naps (up to RBG 15 t), protecting the fixing screws against bending- and shearing loads. All versions with 100% crack detected bolts.

Eye Plate-threaded RBG-3 Information

The patented relief lugs (DBP3123175) protect the securing bolt against bending and shearing loads. This provides additional safety.
Stowable with smaller bolts and thus low profile.
A forged ring according to EN 1677-1, quality grade 80, electromagnetic crack detected and coloured red. It is in compliance with the approval requirements of the respective employers' liability insurance association (BG).
Mounting instructions:
Only the provided crack detected bolts should be used. Make sure the bolting surface is plain.
Work piece material, at least 1.0037 (St 37).
For light metals, nonferrous heavy metals and grey cast iron, the thread type allocation must be done in such a way that, the WLL of the thread type fulfils the requirements of the respective work piece.
Scribing and drilling according to the tolerance range of RBG (refer to the scale drawing).
1. First scribe a pocket hole - relief bore size "F" drill and countersink according to the sizes "H, G, K".
2. After inserting and adjusting the bolting blocks straight, the bore for the taped hole can be drilled.
3.Drill the core hole and cut the thread. Drill only size "H" for through bolts.
Impact loaded or when operated in environments with vibrations, unintentional loosening can happen.
Securing possibilities: Use of a liquid thread securing medium eg. Loctite ( follow the manufacturer`s recomendations) or the positive bolt securing eg. castellated nut with a split pin, counter nut e.t.c. After being used over a longer period of time, inspect the bolts to make sure they are still tight.

Eye Plate-threaded VRBG-10t/16t Information

The patented relief lugs (DBP3123175) protect the securing bolt against bending and schearing loads. This provides additional safety.
Stowable with smaller bolts and thus low profile.
A favourable distribution of the introduced forces.
A forged ring according to EN 1677-1, quality grade 80, 100% electromagnetic crack detected and coloured red. It is in compliance with the approval requirements of the respective employers' liability insurance association (BG).
Only the provided crack detected hexagon socket bolts according to DIN 912 should be used. Make sure the bolting surface is plain.
Scribing and drilling according to the tolerance range of RBG.
Work piece material, at least 1.0037 (St 37).
For light metals, nonferrous heavy metals and grey cast iron, the thread type allocation must be done in such a way that, the WLL of the thread type fulfils the requirements of the respective work piece.
Impact loaded or when operated in environments with vibrations, unintentional loosening can happen.
Securing possibilities: Use of a liquid thread securing medium eg. Loctite ( follow the manufacturer`s recomendations) or the positive bolt securing eg. castellated nut with a split pin, counter nut e.t.c.
After being used over a longer period of time, inspect the bolts to make sure they are still tight.

Load Ring VRBG-30t/50t welded on boltable plate Information

Load ring VRBS, welded on a boltable plate.
Smaller bolt diameter, favourable distribution of the introduced forces.
The ring is 100% electromagnetic crack detected.
Only the provided crack detected hexagon socket bolts according to DIN 912 should be used.
Use property class 12.9
Make sure the bolting surface is plain.
Scribing and drilling according to the tolerance range of RBG.
After being used over a longer period of time, inspect the bolts to make sure they are still tight.
Impact loaded or when operated in environments with vibrations, unintentional loosening can happen.
Securing possibilities: Use of a liquid thread securing medium eg. Loctite ( follow the manufacturer`s recomendations). Work piece material, at least 1.0037 (St 37).
For light metals, nonferrous heavy metals and grey cast iron, the thread type allocation must be done in such a way that, the WLL of the thread type fulfils the requirements of the respective work piece.

Proof Testing

There is no requirement to Proof Test RUD Products, either Bolt or Weldable after Installation if the user instructions for welding are carried out correctly. The welding should be carried out by a suitably qualified and competent welder/person.

The supporting structure, or the load, should be of adequate strength to take the stresses involved and this is the responsibility of the engineering designer or equivalent.

RUD Lifting and Lashing Products are Manufactured and conform to EN 1677. No further Proof Testing in the field is required. In fact it would be considered that the Product had been overloaded if a Load more than the recommended Working Load Limit had been applied.

RUD products should be regularly inspected in line with the requirements of LOLER and as per our user instructions at intervals decided by a competent person.

User Instructions

1. Reference should be made to German Standards accord.
BGR 500 or other country specific statutory regulations and inspections are to be carried out by competent persons only.

2. Before installation and every use, visually inspect RUD lifting points, paying particular attention to any evidence of corrosion, wear, weld cracks and deformations. Please ensure compatibility of bolt thread and tapped hole.

3. The material construction to which the lifting point will be attached should be of adequate strength to withstand forces during lifting without deformation. The German testing authority, BG, recommends the following minimum for the bolt lengths:
1 x M in steel (min. quality S235JR [1.0037])
1.25 x M in cast iron (e.g. GG25)
2 x M in aluminium
2.5 x M in aluminium-magnesium alloys
(M = thread Ø, e.g. M 20)

When lifting light metals, nonferrous metals and cast iron the thread has to be chosen in such a way that the WLL of the thread corresponds to the requirements of the corresponding base material.
RUD-VRBG/RBG are delivered with 100 % crack tested bolts.
Variable bolt length available when using DIN EN ISO 4014 (DIN 931) e.g DIN EN ISO 4762 (DIN 912) bolts. When using your own bolts they have to be 100% crack tested. You have to use at least a hexagon bolt according to ISO 4014 (DIN 931) with quality 10.9 (for RBG 3) or a hex head bolt accord. ISO 4762 (DIN 912) with quality 8.8 (for RBG 8) and quality 12.9 (for RBG 15 and VRBG 16) with the correct nom. diameter.

4. The lifting points must be positioned to the load in such a way that movements are avoided during lifting.
a.) For single leg lifts, the lifting point should be vertically above the centre of gravity of the load.
b.) For two leg lifts, the lifting points must be equidistant to/or above the centre of gravity of the load.
c.) For three and four leg lifts, the lifting points should be arranged symmetrical around the centre of gravity in the same plane if possible.

5. Load symmetry:
The required WLL of the individual RUD lifting point are calculated using the following formula and are based on symmetrical loading:

WLL =
       G
n x cos ß
WLL = Working Load Limit
G = Load Weight (kg)
n = Number of load bearing legs
ß = Angle of inclination of the chain to the vertical

The calculation of load bearing legs is as follows:

No. Legs Symmectrical Asymmetrical
Two Leg 2 1
Three / Four Leg 3 2

(See Tables below)

6. A plane bolting surface must be guaranteed. The holes must be drilled in the recommended tolerance field and with a sufficient depth in order to guarantee compatibility with the supporting surface.
Drilling sequence for the RBG 3:
a) Mark the blind hole (Dim F) then drill and countersink the dimensions H,G,K.
b) After fitting and and adjustment of the welding blocks the bore for the tapped hole can be drilled.
c) The core hole and thread can be machined. For through holes drill only the dimension ”H“.

7. The VRBG/RBG-Ring must be able to pivot 180° after assembly. For single use just tighten with spanner. For long term application the VRBG/RBG should be tightened with torque accord. chart 2 (+/-10%) inclusive using the locking washer.

VRBG 30t and 50t specific:

7. For single straight pull use just tighten with spanner. For long term application or using the lifting points under inclination angle conditions the tightening has to be done with the torque mentioned on the plate.
The permissible weight of load for the different loading methods has to be defined by the user (authorised and trained person) according to the WLL indication on the connecting plate and the factors mentioned in table 1.
With turning processes and in permanent operation, the bolts have to regularly be examined with regard to their torque prescribed (for turning processes, we recommend to use the RUD lifting point PowerPoint WBG-V or WBG).

8. To prevent unintended dismounting through shock loading, rotation or vibrations thread locking devices are recommended. Therefore different locking systems are possible. Liquid locking fluid such as Loctite (respect manufacturer specifications) or form closed versions such as hex castel nut, counter nut, etc.

9. All fittings connected to the VRBG/RBG should be free moving. When connecting and disconnecting the lifting means (sling chain), pinches and impacts should be avoided. Damage of the lifting means caused by sharp edges should be avoided as well.
10. Effects of temperature:
Due to the DIN/EN bolts that are used with the VRBG/RBG the working load limit should be reduced accordingly:
-40° to 100°C no reduction (-40°F to 212°F)
100° to 200°C minus 15% (212°F to 392°F)
200° to 250°C minus 20% (392°F to 482°F)
250° to 350°C minus 25% (482°F to 662°F)
Temperatures above 350°C (662°F) are not permitted.

11. RUD lifting points must not be used under chemical influences such as acids, alkaline solutions and vapours e.g. in pickling baths or hot dip galvanising plants. If this cannot be avoided, please contact the manufacturer indicating the concentration, period of penetration and temperature of use.

12. The position where the lifting points should be attached should be clearly marked with colour.

13. After fitting, an annual inspection, or sooner if conditions dictate, should be undertaken by a competent person examining the continued suitability. Also after damage and special occurrences.

Inspection criteria concerning paragraphs 2 and 13:

  • Ensure correct bolt size, quality and length
  • Ensure compatibility of bolt thread and tapped hole
  • The Lifting point should be complete
  • Deformations of the components parts such as body fittings
  • and thread
  • Mechanical damages such as notches, especially in high
  • stress areas.
  • Wear should be not more than 10% of cross sectional
  • diameter.
  • Evidence of corrosion.
  • Evidence of cracks.
  • Damage to the bolt and/or thread.

A non-adherence to this advice may result in damage of persons and/or materials.

Technical Dimensions

Measurements are in mm unless otherwise stated.

Rud  rbg-3 load ring dimensional drawing
RBG 3
Rud  rbg-16 load ring dimensions
VRBG 10 and 16
Model WLL (tonnes) Weight (kg) A (mm) B C D E F G H J K L M N T Screw Screw Thread Pitch (mm) Torque Reference
RBG 3 3 1 34 16 5 48 22 92 6 18 30 1 178 16 71 67 ISO 4014 (DIN 931) M16x50-10.9 2 120 Nm 0051817
VRBG 10 10 4.5 120 22 6 65 143 78 8 30 50 45 194 20 100 103 M20 2.5  -  -
VRBG 16 16 11.3 170 30 8 90 198 104 10 46 70 63 270 30 134 131 ISO 4762 (DIN 912) M30x90-12.9 3.5 600Nm 7993255
Rud  vrbg-30 load ring dimensions

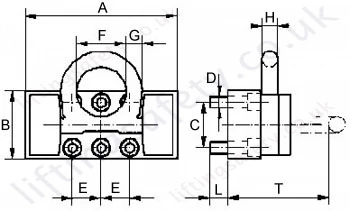

VRBG 30
Rud  vrbg-50 load ring dimensions
VRBG 50
Model WLL (tonnes) Weight (kg) A (mm) B C D E F G H J K L M N T Screw Screw Thread Pitch (mm) Torque Reference
VRBG 30 30 67 400 180 120 30 75 130 42 42 - - 46 - - 265  - - 900 Nm 7985866
VRBG 50 50 219 650 270  200 36 100 230 70 70 - - 58 - - 412   - - 1000 Nm 7985867

Load Capacities

Method of lift Load Method 1 Load Method 2 Load Method 3 Load Method 4 Load Method 5 Load Method 6 Load Method 7 Load Method 8
Number of legs 1 1 2 2 2 2 2 3 and 4 3 and 4 3 and 4
Angle of inclination <ß 90° 90° 0-45° 45-60° unsymm. 0-45° 45-60° unsymm.
Factor 1 1 2 2 1,4 1 1 2,1 1,5 1
Type WLL in metric tonnes
RBG 3 t 3 t 3 t 6 t 6 t 4,2 t 3 t 3 t 6,3 t 4,5 t 3 t
VRBG 16 t 16 t 16 t 32 t 32 t 22,4 t 16 t 16 t 33,6 t 24 t 16 t
VRBG 30 t 30 t 30 t 60 t 60 t 42 t 30 t 30 t 63 t 45 t 30 t
VRBG 50 t 50 t 50 t 100 t 100 t 70 t 50 t 50 t 105 t 75 t 50 t
Type WLL in imperial lbs
RBG 3 t 6600 lbs 6600 lbs 13200 lbs 13200 lbs 9240 lbs 6600 lbs 6600 lbs 13860 lbs 9900 lbs 6600 lbs
VRBG 16 t 35200 lbs 35200 lbs 70400 lbs 70400 lbs 49300 lbs 35200 lbs 35200 lbs 74000 lbs 52800 lbs 35200 lbs
VRBG 30 t 66100 lbs 66100 lbs 122000 lbs 122000 lbs 92500 lbs 66100 lbs 66100 lbs 138800 lbs 99200 lbs 66100 lbs
VRBG 50 t 110200 lbs 110200 lbs 220400 lbs 220400 lbs 154300 lbs 110200 lbs 110200 lbs 231400 lbs 165300 lbs 110200 lbs
