Crosby IPBKZ Transfer & Stacking Clamp - Range from 750kg to 3750kg

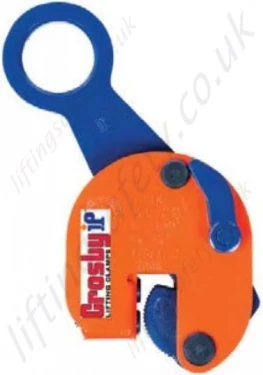

Crosby IP Horizontal Transfer and Stacking Clamp.

Model:

Crosby IPBKZ / TSC-896


Unfortunately this product is no longer available. Please view our full range of Steel Section Lifting Clamps or Contact us with your requirements for a possible suitable alternative.

  • Lifting clamp IPBKZ is suitable for the lifting, transfer and stacking of steel beams.
  • The IPBKZ lifting clamp is fitted with a locking device for both open and closed positions, which ensures complete safety.
  • The IPBKZ lifting clamp keeps the flanges of the beam vertical during the transfer, which facilitates stacking the beams in flanges.
  • For correct use of the clamp, please consult loading angles below.
  • Higher WLL and different jaw-apertures upon request.
  • The minimum working load must be at least 10% of the rated WLL.
  • Welded alloy steel body for strength and smaller size. Forged alloy components, where required.
  • Individually Proof Tested to 2 times the Working Load Limit with certification.
  • Company name (CrosbyIP), logo, Working Load Limit and jaw opening permanently stamped on body.
  • Each product is individually serialized, with the serial number and Proof Load test date stamped on body. Serial number is included on the test certificate with maintenance and warranty logbook.
  • Optional IP-5000 Stinger assembly available. Allows for easy connection between the clamp and hoist hook.
  • Maintenance replacement parts are available.
  • Manufactured by a ISO 9001 facility.
  • All sizes are RFID EQUIPPED.

Dimensions & Specifications

Part N° WLL per pce (tonnes) Jaw (mm) - A B C D E F G H J Weight per pce (kg)
2705780 0.75 5-15 43 132 192 45 113 47 38 10 3.5
2705781 1.5 5-25 62 210 300 70 163 61 50 16 7.0
2705782 3.75 5-28 75 260 415 100 202 78 52 20 15.5

Dimensions are in milimeters.

Dimensions

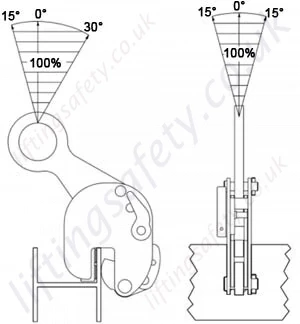

Loading Angles

Loading Angles

Unfortunately this product has been discontinued and/or is no longer available. Please contact us for details on possible alternative products.
