Steel Beam Girder lifting / Suspension Clamps, UB, RSJ, "I" Section, "H" Beam.
Camlok CG Girder Lifting Clamp - Range from 1000kg to 8000kg
Product Images
Camlok series of CG general purpose clamps can be used on rolled steel joists, beams, fabrications and RSJ's up to a surface hardness of 300 Brinell. This clamp can lift and turn girders through 90° and has been designed to meet the requirements of the heavy steel industry. It...
- Model: Camlok CG

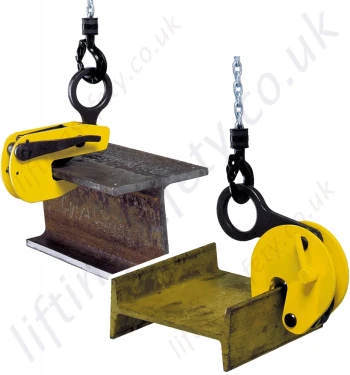

Camlok TTR Girder Section Lifting Clamp - Range from 750kg to 3000kg
Product Images
The TTR Series of Clamps have been designed to lift and transport structural steel beams in the horizontal position i.e. with the flanges in the vertical position. The clamp is designed with the hook ring as near as to the centre of gravity of the beam as possible, thus resulting in a near...
- Model: Camlok TTR
Camlok TTG 'I' Position Girder Clamp - Range from 1500kg to 7500kg
Product Images
The TTG Girder Clamp is designed to lift and transport structural steel beams in the vertical position i.e with the flanges in the horizontal position. The clamp is fitted with a Camlok spring operated safety lock and is operated by pulling the locking handle upwards. Long beams should be lifted with two clamps...
- Model: Camlok TTG
Camlok TTT Girder Section Clamp - Range from 500kg to 3000kg
Product Images
The TTT Series Clamp is a variant of the TTG clamp but this clamp is designed to be used in pairs supported from a 2 legged chain sling. The bottom toe plate is split thus enabling the clamp to be attached to the end of the structural steel beam. The clamp is fitted with a spring operated safety lock. Particularly used...
- Model: Camlok TTT
Camlok SCT 92 Wide Flange Beam Clamp - Range from 3000kg to 5000kg
Product Images
This Fixed/Swivel beam clamp has a Wide Flange RangeOptions available: 3000kg=range 100-270 mm, 5000kg=range 75-305 mm
- Model: Camlok SCT 92
Camlok SCS Swivel Jaw Beam Clamp - Range from 2000kg to 10,000kg
Product Images
Fitted with swivelling jaws that provide a positive grip on the bottom flange of rolled steel joists. Jaw automatically rotates into the horizontal position ensuring the full width of the jaw is in contact with the flanges.
- Model: Camlok SCS
Camlok SCT Fixed/Swivel Beam Clamp - Range from 1000kg to 10,000kg
Product Images
The clamp can be quickly and easily attached to both beams via the screw mechanism. The SCT twin clamps can be supplied fixed at parallel, at 90º to each other or with a swivel mechanism that allows 360º rotation. Used for supporting vertical loads only. Enables one beam to be suspended beneath another.
- Model: Camlok SCT
Camlok TPR Profile Steel Grab - Range from 500kg to 3000kg
Product Images
This clamp is useful for various flange widths due to large jaw capacity. The clamping jaws hold the load firmly in place. Designed to transport girders, profile steel etc.
Models available: 500, 1500, 3000 kg
- Model: Camlok TPR

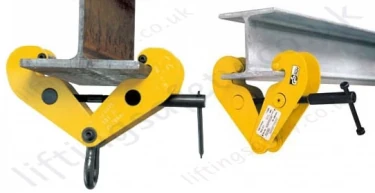

Yale YC Standard Beam Clamps - Range from 1000kg to 10,000kg
Product Images
Provides a quick and versatile rigging point for hoisting equipment, pulley blocks or loads. Flexible application due to wide adjustment range. The central threaded spindle allows easy attachment and a safe and secure grip so it doesn't slack.
Optionally can be supplied as a beam clamp with a shackle.
- Model: Yale YC
Yale YC-S Beam Clamp with Shackle - Range from 1000kg to 5000kg
Product Images
Provides a quick and versatile rigging point for hoisting equipment, pulley blocks or loads and comes complete with a locking device and is supplied with a shackle. Flexible application due to wide adjustment range. The central threaded spindle allows easy attachment and a safe and secure grip. This clamp comes...
- Model: Yale YC-S
Yale YRC Reinforced Beam Clamp - Range from 1000kg to 10,000kg
Product Images
Compact and rigid beam clamp to be used as a versatile rigging point for hoisting equipment and loads. The Yale YRC clamps have all the standard features associated with the YC beam clamp range but have the added benefit of being extremely tough and robust due to the reinforced side plates and jaws. This design change...
- Model: Yale YRC
Riley Superclamps USC Universal Beam Clamp for use Vertical or Horizontal Applications - Range from 3000kg to 10000kg
Product Images
This universal clamp has been designed not only for vertical use, but also for side load applications, where conventional clamps are not suitable. This clamp is truly versatile in application and can be used for lifting, pulling or as an anchor point. It can be...
- Model: Riley Superclamps USC
Riley Superclamps ES Budget Adjustable Girder Clamp - Range from 1000kg to 5000kg
Product Images
A lightweight low cost girderclamp with low headroom anchor point makes this a highly recommendable unit for most industrial applications.
- Model: Riley Superclamps ES
Riley Superclamps PFC1/2 Permanently Fixed Adjustable Girderclamps, WLL of 1000kg or 2000kg
Product Images
These girder clamps are designed for light industrial applications; particularly where a permanent overhead anchor point is required. These high strength inexpensive lightweight clamps are excellent for application in small garages and hobbyist workshops.As with all our...
- Model: Riley Superclamps PFC1/2

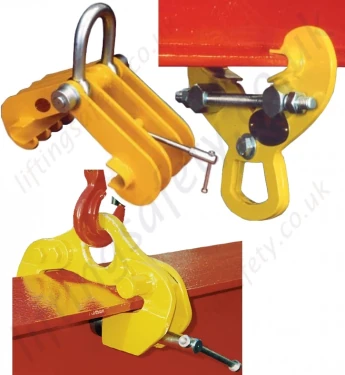

Riley Superclamps S Fixed Jaw Adjustable Girder Clamps - Range from 2000kg to 15000kg
Product Images
These girder clamps are truly versatile in application and may be used for lifting, pulling, or as an anchor point. Designed specifically to provide maximum jaw grip adjustment. These products are engineered for practical use where mobility is essential. The clamps are speedily applied and do not...
- Model: Riley Superclamps S
Riley Superclamps Sxx Fixed Jaw Adjustable Girderdogs - Range from 20000kg to 30000kg
Product Images
Girderdogs incorporate all the reputedly excellent and reliable design features for which our products are known. The design is enhanced by a well balanced distribution of side plates, ensuring maximum grip and hold over an adequate length of girder or beam flange. They are safe in use, and once in...
- Model: Sxx
Riley Superclamps S Swivel Jaw Adjustable Girder Clamps, W.L.L 3000kg to 10000kg
Product Images
Swivel jaw adjustable girder clamps incorporate the additional benefit of horizontal jaw adjustment. This enables the full length and a maximum width of the swivel jaw to anchor evenly on a considerable surface area of the beam flange. The ‘Swivel Jaw’ range of our SuperClamp products are...
- Model: Riley Superclamps S
Riley Superclamps S Adjustable Double Ended Monorail Construction Clamp - 3000kg or 4000kg
Product Images
These monorail construction clamps are designed to enable speedy erection of permanent or temporary overhead conveying systems, where existing steel girders are of an adequately balanced horizontal level. Both clamps are fully adjustable by operating the left and right hand threaded adjusting...
- Model: AD-3356
Crosby ITPKU Universal Beam, Hoisting / Lifting clamp - Range from 2000kg to 10,000kg
Product Images
The new and improved IPTKU beam clamp is not your "standard" beam clamp. It is the new standard. With an improved hinged hoisting eye that increases the loading angles and an optional new "Double locking Device", the versatility of the new IPTKU beam clamp makes it perfect for use as a temporary...
- Model: Crosby ITPKU

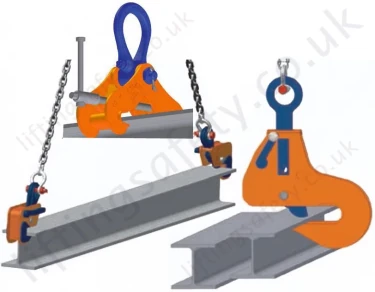

Crosby IPBSNZ Transfer & Stacking Clamp - Range from 1500kg to 4500kg
Product Images
Lifting clamp IPBSNZ is suitable for: Lifting, transfer and stacking of steel beams, lifting, mounting and transfer of steel constructions, as an auxiliary tool for assembling ship sections. The IPBSNZ lifting clamp is fitted with a locking device for both open and closed positions, which ensures complete...
- Model: Crosby IPBSNZ
Crosby IPBKZ Transfer & Stacking Clamp - Range from 750kg to 3750kg
Product Images
The lifting clamp IPBKZ is suitable for the lifting, transfer and stacking of steel beams. It is fitted with a locking device for both open and closed positions, which ensures complete safety. It keeps the flanges of the beam vertical during the transfer, which facilitates stacking the beams in flanges.
- Model: Crosby IPBKZ
Crosby IPBHZ Transfer & Stacking Clamp - Range from 750kg to 4500kg
Product Images
This lifting clamp IPBHZ is suitable for the lifting and transfer of steel beams and plates. It is fitted with a locking device for both open and closed positions, which ensures complete reliability. It is also suitable for working in conjunction with an angle bench, guillotine, round roller, etc. It can grip...
- Model: Crosby IPBHZ
Crosby STARTEC Tilting Beam Clamp - 1500kg or 2500kg
Product Images
The IP-STARTEC has been especially developed for lifting with the body in vertical position, controlled tilting, transportation and stacking of steel H - and I - profiles. By placing the chain guide in the appropriate position, it is straight forward to switch from lifting to tilting and back again, which shifts the centre of...
- Model: Crosby STARTEC
Crosby IPBC HPC891 Horizontal Plate Clamp - Range from 1000kg to 3000kg
Product Images
Horizontal lifting clamp IPBC is suitable for the lifting and transfer of steel beams and plates and for sagging plates. Fitted with a pretension device on the material, causing the clamp to remain on the plate after it is placed, even in unloaded position. The IPBC lifting clamps may only be used up to a top...
- Model: Crosby IPBC HPC891
Crosby ITP Screw Lock Beam Clamp - Range from 2000kg to 5000kg
Product Images
Multipurpose lifting clamp for steel beams. IPTK is suitable for application as a lifting clamp, tackle-eye clamp and as a lashing clamp. Load carrying capacity up to 15º from the centre line of the clamp. The IPTK clamp is fitted with a screwed spindle for attachment of the clamp to the beam.
Optional...
- Model: Crosby ITP

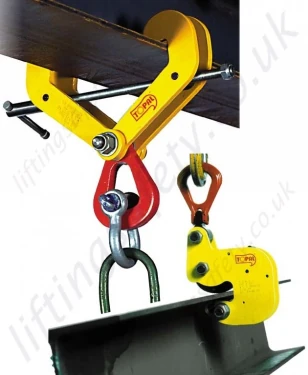

Tractel TOPAL KP Semi-Automatic Clamp for Lifting Girders - 1500kg or 3000kg
Product Images
This clamp is fitted with a safety spring mechanism allowing permanent contact of the cam on the load to be lifted, even when it is being laid down. This model is also equipped with automatic grasping ensuring the clamp closes when the plate or profile is positioned at the back of the clamp’s...
- Model: Tractel TOPAL KP
Tractel TOPAL PL Girder Clamp - Range from 1000kg to 4000kg
Product Images
These grabs are designed to be used in pairs with a lifting beam. These accessories are fitted with an open position locking system allowing to lay down the load without any intervention on the clamp.
- Model: Tractel TOPAL PL
Tractel TOPAL GP Beam Clamp - Range from 1000kg to 10,000kg
Product Images
This clamp is designed to provide a permanent or semi-permanent suspension point on girders, to suspend hoists, lifting beams, pulleys, etc. It can also lift girders when used in pairs with a lifting beam. These beam clamps are fitted with a screw allowing the locking in position for providing an hanging point. One of...
- Model: TTG-3299
