MANUAL - Modular, Knock Down Folding Floor Cranes - Range to 2000kg

Model:  RLC-2942

1000kg Floor Crane with Removable Legs
Floor Crane Stored Away
Broken Down - Folding Floor Crane
1000kg Floor Crane with Removable Legs Floor Crane Stored Away Broken Down - Folding Floor Crane
Crane Type ?
Part N° Capacity Guide Price Quantity
2942-T3771 250kg Quote Required
2942-T3772 500kg Quote Required
2942-T3773 750kg Quote Required
2942-T3774 1000kg Quote Required
2942-T3775 1500kg Quote Required
2942-T3776 2000kg Quote Required
Add to Quote Basket   ?

Floor Crane with Detachable Legs, lifting arm and column for ease of storage and transportation. Top quality made here in the UK.

Knock-down Crane - Detachable Floor Crane for ease of storage and transportation
Crane in Storage Position (folded)

We offer this as a top of the range mobile floor crane with one totally unique feature; the legs are totally and other component parts are removable for storage and transportation There are many circumstances that this is considered an advantage, namely; reduced weight for manual handling and a more compact design though more importantly that this floor crane can be set-up in locations that a standard folding floor crane simply cannot because there.

Note: The pictures shown are our artists impression only and are only indicative of our capability. (for display purposes only) All cranes are made individually and the the design may be subject to change according to your required specification; the pictures are not to scale, general arrangement drawings will be issued for approval on receipt of your order.

Available made from mild steel or stainless steel. Mild steel can be painted to offshore specification or power coated. Stainless steel Finnish is also suitable for offshore use, being corrosion resistant and extremely reliable. Many additional features are available for both options, see the tab above BUY/Quote for more information.

This is a unique feature for specialist applications and  Liftingsafety are the only supplier that we are aware of that can offer a folding floor crane that will breakdown in to individual components (a modular knock down version). The range of cranes are supplied with quick release hydraulic ram, quick release vertical column, horizontal jib arm and quick release self sealing hydraulic connectors. This will result in storage and manual handling being even easier though most importantly the floor crane will then be transportable by people around working areas within a factory, on an oil rig etc... getting the crane to what would otherwise be difficult or impossible to get to areas, for example needing to be taken up a flight of stairs because there is to overhead lifting facility or if there is no goods lift (or if the lift is out of order).

A choice of 6 capacities, 250kg, 500kg, 750kg, 1000kg, 1500kg and 2000kg.

Designed, manufactured, tested and certified in the UK this fold-away crane with detachable legs has a multitude of uses including use offshore, supplied with anti sparking features (some refer to as sparkproof or ATEX suitable) that the end user specifies, for example; stainless steel, bronze bushing, load hook, pivot pins etc and anti static Castor's.

Features

  • Heavy duty design - come apart floor crane.
  • Modular design, removable parts to customers specification (legs only removable as standard)
  • Fitted with a safety relief valve that prevents overloading
  • Hydraulics fitted with chrome plated piston rod on ram and pump also made in the UK.
  • Fitted with quality castors for easy movement of the crane when operational or folded.
  • Swivel hook fitted as standard though can also be fitted with adjustable height lifting hook
  • Individually load tested (1.25% SWL)
  • Fully CE certified
  • 12 month guarantee

Specials: made to order to customers dimensions and safe working loads. Contact us with your specification for a quote to supply you with special bespoke floor crane.

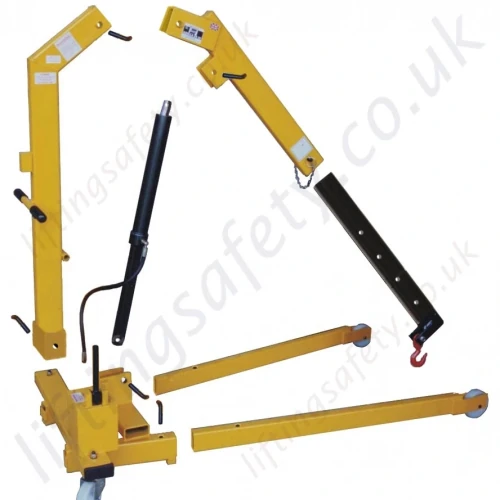

Full Breakdown Example

Fully Broken down version of the floor crane showing all removable parts, locking pins and fixing points.

Image for display purposes only.

Fully Broken Down Folding Floor Crane

Floor Cranes With Spark Resistant Features / Explosion proof.

For Floor cranes to be used in potentially explosive areas / atmospheres such as Zone 1 or 2, SELS can include any anti-sparking features that our customers specify - this will increase its anti-sparking properties and therefore make the crane more suitable for use in a potentially explosive environment!

SELS will not to take the responsibility of supplying our floor cranes described as 'spark proof' as this is ‘too broad’ a term. We believe that total compliance is probably impossible because of the mechanical operation and movement of a floor crane; i.e. we cannot offer a 100% guarantee that no part of the assembly is capable of generating a spark which could ignite a flame!  IE: SELS will supply / manufacture cranes with anti sparking features to our customer’s requirements though will not certified them as sparkproof / explosion proof. Our cranes have been successfully supplied to customers in the offshore Oil and Gas industry in the UK on this basis.

Folding_floor_crane_dimensions.pdf

Dimensional Drawings

Full technical and dimensional information. Indication purposes only.
(approx. 1.5Mb)
safe-use-of-floor-cranes.pdf

Safety Instructions

General safety instructions for the safe use of floor cranes.
(approx. 0.1Mb)
