Tractel "Blocfor R" Self Retracting Fall Arrest Retriever Inertia Reel Rescue Block With Retrieval Handle - 20 or 30 metre

Model:  Blocfor R / TRAF-3904

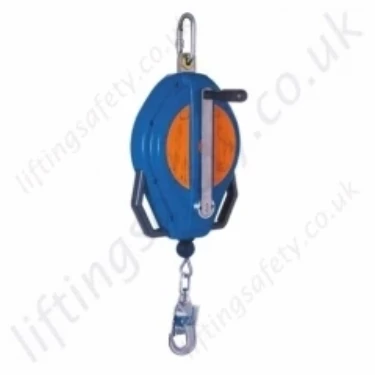

Tractel Blocfor R
Tractel Blockfor R 20m/30m
Model Required
Quantity


Choose Your Pricing Currency
Guide Price £ 1029.00
Part N°: 3904-8989667   Add to Quote Request

Tractel "Blocfor 20R and 30R". 20m or 30m fall arrest and rescue inertia reel block.

Blocfor R Retrieval Inertia

The Blocfor 20R and 30R are retractable lifelines (EN360) designed to protect the user in the event of a fall. They are equipped with a rescue device for lifting or lowering (EN 1496 class B, rescue device).

An automatic-return fall-arrester equipped with a rescue lifting device.

It is used vertically, secured to a tripod to evacuate, upward or downward, a person who has fallen.

The maximum utilization load of this device is 100 kg.

The cable moves freely at normal user speed but is continuously subject to a light return force by a spring which actuates a drum on which the lanyard is wound.

In the event of a fall, the user is stopped by the safety catches which engage.

Equipped with a manual winch allowing the rescuer to bring up or lower the user after a fall. This device can be disengaged.

The device is operated by means of a folding crank handle coupled to an automatic brake, by pressing the red locking button, the crank handle is engaged and allows winding or unwinding the cable.

The Blocfor 20R has a capacity for 20 meters of cable and the Blocfor 30R has a capacity for 30 meters.

Blocfor R Retrieval Inertia Features

Both are equipped with 2 handles to facilitate handling.

Can be mounted on one of the Tracpode legs by means of a mounting bracket.

NOT suitable for handking or securing a load.

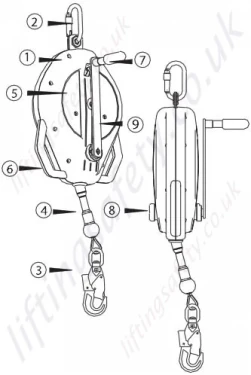

Features

  1. Housing
  2. Anchorage on Structure
  3. Anchorage on Harness
  4. End Stop
  5. Indentification Label
  6. Carrying Handle
  7. Folding Operating Handle
  8. Locking Button
  9. Hand Crank

Specifications

Model Weight (kg) Steel Cable Ø 4mm Steel Cable Ø 4.7mm Retractions Force (N) Braking Force (kN) Braking Distance (mm) Standards
Blocfor 20R 9.34 20m 18m 25 5 750 EN360, EN1496 class B
Blocfor 30R 16 30m 27m 25 5 750 EN360, EN1496 class B



Blocfor R datasheet watermark.pdf

Blocfor R datasheet

(approx. 0.3Mb)
Tractel tracpode and Blocfor R datasheet Operating and Maintenance watermark.pdf

Tractel tracpode and Blocfor R Operating and Maintenance

(approx. 0.9Mb)
