Tractel "Stopcable" Permanent Installation Vertical Wire Line Fall Arrest Lifeline For End User Installation

Product Images - (Mouse-over). Note: Some images may be for display purposes only and not necessarily included as standard.

tractel Stopcable

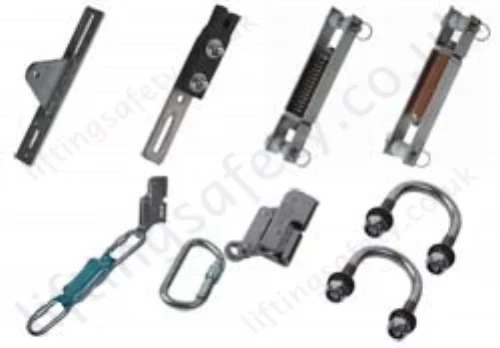

Accessories

Stopcable Is a vertical fall arrest wire line Vertical Lifeline for fixing to ladders etc...

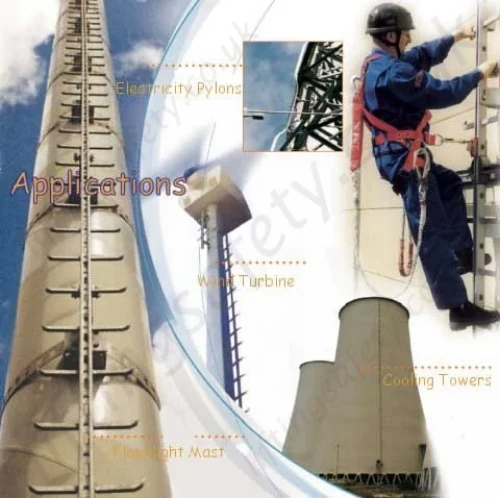

The use of a ladder to gain access to a high level workstation can pose an element of risk. The purpose of the stopcable system is to ensure the safety of personnel throughout their ascent.

The stopcable vertical lifeline is a mobile anchoring device to enable a person to move on a vertical axis in perfect safety and without having to disconnect themselves

It is made up of a fixed point and individual mobile equipment.

The stopcable vertical lifeline was designed, created and tested to comply with the requirements of the EN353-1 and EN 353-2 Standards.

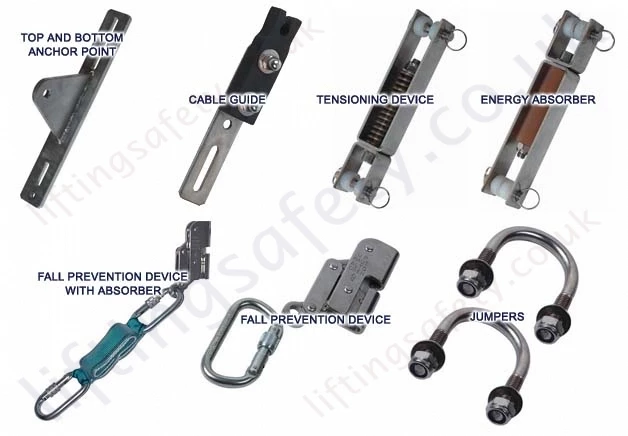

Top and bottom anchor points

• Materials: Galvanised and stainless steel

Jumpers

• The jumpers or stirrups enable the connection of the anchor terminal and the cable guides to the ladders rungs.
• Materials: Stainless Steel

Fall Prevention Device

• Supplied with M10 Connector



• Material: Stainless Steel

Fall Prevention Device with Absorber

• Supplied with M10 Connector
• Absorber webbing strap
• Material: Stainless Steel

Tensioning device

• Pre-tension indicator
• Material: Stainless steel clevis pin, spring tensioning device

Energy absorber

• Material: Stainless steel clevis pin, P.U. absorber

Cable guide

• Installed approximately every 10m, the purpose of the cable guide is to restrict cable play.
• Material: stainless steel and rubber
