Pfaff STW-V Steel Jacks (Adjustable Lifting Claw) DIN 7355 - Range from 3000kg to 10,000kg

Model:  STW-V / PS-3191
Showing 3 of 3

Steel Jacks with adjustable lifting claw.

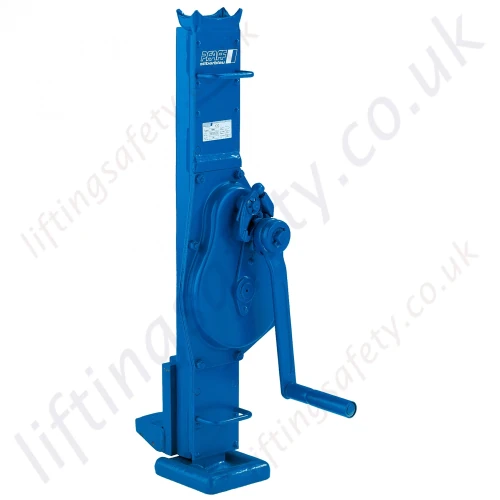

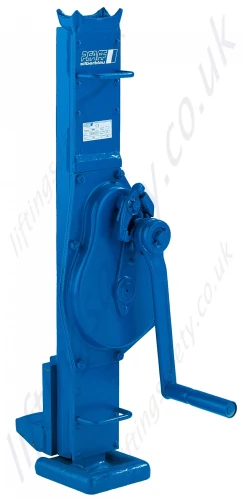

Pfaff Steel Jack Adjustable Claw

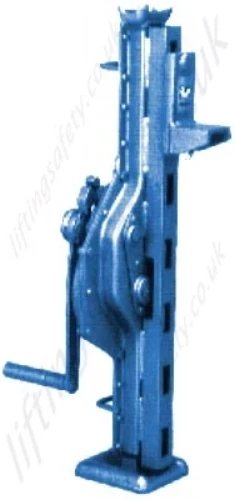

Toe Adjustment Example

Steel jacks with adjustable lifting claw designed for use in confined or tight areas. High quality spur gear and robust steel housing offer long service life.

Functionality

  • The steel jacks are toothed rack winches with spur gear.
  • The load is held in every position by load pressure brake.
  • The load can be positioned in such a way that the load is taken from head or claw. Due to reasons of safe position, it is only suited for lifting loads on one side.
  • The safe function of the load pressure brake is only guaranteed, depending on design (safety crank, safety ratchet crank), with loads off approx. 5% up to 10% of the nominal load.

Jack Specificatons

Type Dims 3000kg Model 5000kg Model 10000kg Model
Lifting capacity (head)
 kg 3000 5000 10000
Lifting capacity (toe) kg 3000 5000 10000
Minimum head height mm 720 720 792
Claw adjust. height - 1 mm 69 62 85
Claw adjust. height - 2 mm 166 159 191
Claw adjust. height - 3 mm 263 256 297
Claw adjust. height - 4 mm 360 353 403
Claw adjust. height - 5 mm 457 450 509
Claw adjust. height - 6 mm 554 547 615
Lift mm 350 300 300
weight kg 25 30 48

*Pfaff steel jacks are supplied with SIKu braked safety crank fitted as standard SIFeKu and RaKu cranks are available on request.

Dimensions

Dimensions

Type capacity [t] a x b [mm] c [mm] d [mm] e [mm] f [mm] g [mm] h [mm] i [mm] k [mm] k1 [mm] l [mm] m [mm] n [mm] o [mm] p [mm] r [mm] s [mm] t [mm] u [mm]
030001007* 1,5 25 x 35 78 33,5 125 207 347 86 60 60 - 720 35 250 130 60 90 50 130 140
030002003* 3 30 x 45 92 39,5 204 221 381 94 65 61 - 720 35 250 130 60 90 50 130 140
030003069* 5 40 x 50 100 51 189 244 402 105 70 62 - 720 33 250 130 68 110 68 145 155
030004006* 10 50 x 60 132 62,5 250 289 442 128 85 85 - 792 37 300 250 67 140 70 145 155
030005002* 15 50 x 70 127 62 260 300 480 131 90 100 - 800 50 300 250 85 140 75 150 170
030006009* 20 50 x 70 127 62 260 300 480 131 90 100 - 800 50 300 250 85 140 75 195 195
030014000* 1,5 25 x 35 78 33,5 125 207 287 86 60 60 - 600 35 250 130 60 90 50 130 140
030014004* 3 30 x 45 92 39,5 204 221 336 94 65 61 - 605 35 250 130 60 90 50 130 140
030014007* 5 40 x 50 100 51 189 244 352 105 70 62 - 600 33 250 130 68 110 68 145 155
030014011* 10 50 x 60 132 62,5 250 289 422 128 85 85 - 650 37 300 250 67 140 70 145 155
030014013* 1,5 30 x 45 92 39,5 204 221 381 94 65 61
1100 35 250 130 60 90 50 130 140
030014016* 3 40 x 50 100 51 189 244 402 105 70 62 - 1100 33 250 130 68 110 68 145 155
030008001* 3 30 x 45 92 39,5 204 268 381 94 65 61 5x97 720 35 250 130 60 90 50 130 140
030009008* 5 40 x 50 100 51 189 286 402 105 70 62 5x97 720 33 250 130 68 110 68 145 155
030010006* 10 50 x 60 132 62,5 250 322 442 128 85 85 5x106 792 37 300 250 67 140 70 145 155
steel_jack_adj_claw_op.pdf

Pfaff Silberblau Steel jacks with adjustable lifting claw.

Operating, safety and service instructions including all dimensions.
(approx. 0.9Mb)

Pfaff Steel Jack Adjustable Claw
Toe Adjustment Example
Pfaff Steel Jack Adjustable Claw Toe Adjustment Example
Part N° Lifting capacity (kg) Guide Price Quantity
3191-T20447
030008001 		3000kg ( £ 690.00 )
£  655.50
3191-T20448
030009008 		5000kg ( £ 815.00 )
£  774.25
3191-T20449
030010006 		10000kg ( £ 1322.00 )
£  1255.90
