Hydraulic Swaging Press Machines - 600t, 1000t and 1500t
Model: HSP-2703
Hydraulic Swaging Machines.
Quality Swaging
All these swaging machine are produced in accordance with the CE machinery directive & BS EN 693:2001.
Machine Warranty
Swaging Machines come with a 12 months defective parts warranty.
600t Swaging machine
- See 600t Swaging machine tab above for more information.
- This 6000 KN Two column Swaging Press is capable of pressing the following sizes
- Straight: zen 34 (Form A, EN 13411-3) & up to zen 42 in two bite
- Rounded: zen 34 (Form B, EN 13411-3)
- Tapered: zen 32 (Form C, EN 13411-3)
- Flemish Eye: No.6 – 38
1000t Swaging Machine
- See 1000t Swaging machine tab above for more information.
- This 10000 KN Two column Swaging Press is capable of pressing the following sizes:
- Straight: Z 50 (Form A, EN 13411-3) & up to 64 XL in two bite
- Rounded: Z 50 (Form B, EN 13411-3)
- Tapered: Z 40 (Form C, EN 13411-3)
- Flemish Eye: No.22 – 64
1500t Swaging Machine
- See 1500t Swaging machine tab above for more information.
- This 15000KN Two column Swaging Press is capable of pressing the following sizes:
- Straight: Z 56 (Form A, EN 13411-3) & up to XL 76 in two bite
- Rounded: Z 56 (Form B, EN 13411-3)
- Tapered: Z 52 (Form C, EN 13411-3)
- Flemish Eye: 90mm (3-1/2”)
- Swage Sockets:
- Full Shanks 32mm (1-1/4”)
- Progressive 51mm (2”)
600t Swaging machine
This 6000 KN Two column Swaging Press is capable of pressing the following size:
- Straight: zen 34 (Form A, EN 13411-3) & up to zen 42 in two bite
- Rounded: zen 34 (Form B, EN 13411-3)
- Tapered: zen 32 (Form C, EN 13411-3)
- Flemish Eye: No.6 – 38
Quality Swaging
This machine is produced in accordance with the CE machinery directive & BS EN 693:2001.
Machine Warranty
This machine comes with a 12 months defective parts warranty.
Technical Data
See Files tab for drawings.
Solenoid Control Twin Electric Footpedals
- Max. pressure capacity: 6000 KN
- Max. piston stroke: 65mm
- Max. oil pressure: 350 bar
- Unloaded stroke speed: 10 mm/s
- Loaded stroke speed: 1.9 mm/s
- Reversing speed: 12 mm/s
- Swaging die take up - Max: 110 x 156mm
with angle-packing 78 x 100mm - Operating height 1080mm
- Power supply 380v 50Hz 11KW
- Dimensions (LxWxH) 1285 x 1700 x 2000mm
- Weight 3100kg
- Oil capacity 130 Litres
- Oil ISO VG 32
- Other voltages available on request.
- We reserve the right to change technical data.
1000 tonne Swaging Press
This 10000 KN Two column Swaging Press is capable of pressing the following sizes:
- Straight: Z 50 (Form A, EN 13411-3) & up to 64 XL in two bite
- Rounded: Z 50 (Form B, EN 13411-3)
- Tapered: Z 40 (Form C, EN 13411-3)
- Flemish Eye: No.22 – 64
Quality Swaging
This machine is produced in accordance with the CE machinery directive & BS EN 693:2001.
Machine Warranty
This machine comes with a 12 months defective parts warranty.
Technical Data
See Files tab for drawings.
Solenoid Control
- Max. pressure capacity 10000 KN
- Max. piston stroke 90mm
- Max. oil pressure 330 bar
- Unloaded stroke speed 10mm/s
- Loaded stroke speed 2.4mm/s
- Reversing speed
- Swaging die take up - Max 250 x 200mm
with angle-packing 220 x 150mm - Operating height 1300 mm
- Power supply 380v 50Hz 15KW
- Dimensions (LxWxH) 1900 x 1500 x 2350mm
- Weight 6300 KG
- Oil capacity 200 Litres
- Oil ISO VG 32
- Other voltage on request.
- We reserve the right to change technical data.

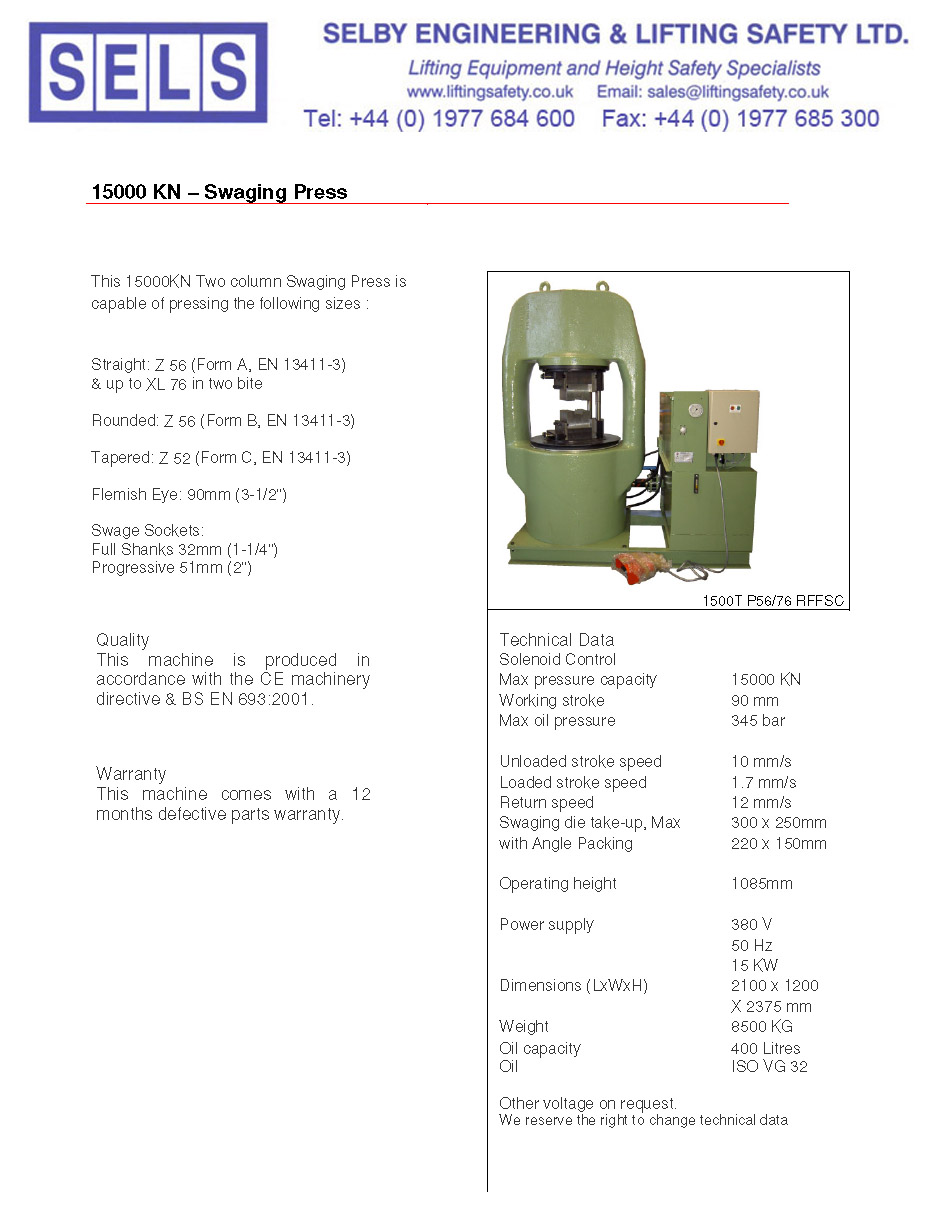

1500 tonne Swaging Press
This 15000KN Two column Swaging Press is capable of pressing the following sizes:
- Straight: Z 56 (Form A, EN 13411-3) & up to XL 76 in two bite
- Rounded: Z 56 (Form B, EN 13411-3)
- Tapered: Z 52 (Form C, EN 13411-3)
- Flemish Eye: 90mm (3-1/2”)
Swage Sockets:
- Full Shanks 32mm (1-1/4”)
- Progressive 51mm (2”)
Quality Swaging
This machine is produced in accordance with the CE machinery directive & BS EN 693:2001.
Machine Warranty
This machine comes with a 12 months defective parts warranty.
Technical Data
See Files tab for drawings.
Solenoid Control
- Max pressure capacity 15000 KN
- Working stroke 90 mm
- Max oil pressure 345 bar
- Unloaded stroke speed 10 mm/s
- Loaded stroke speed 1.7 mm/s
- Return speed 12 mm/s
- Swaging die take-up, Max 300 x 250mm
with Angle Packing 220 x 150mm - Operating height 1085mm
- Power supply 380v 50Hz 15KW
- Dimensions (LxWxH) 2100 x 1200 X 2375 mm
- Weight 8500kg
- Oil capacity 400 Litres
- Oil ISO VG 32
- Other voltage on request.
- We reserve the right to change technical data
1000 Tonne Press
Technical specifications for the 10000kN Swaging Press.(approx. 0.2Mb)
1500 Tonne Press
Technical specifications for the 15000kN Swaging Press.(approx. 0.2Mb)
600 Tonne Press
Technical specifications for the 6000kN Swaging Press.(approx. 0.2Mb)
Images are for display purposes only.
