Quick Ref: GAML-4290
Showing 1 of 4

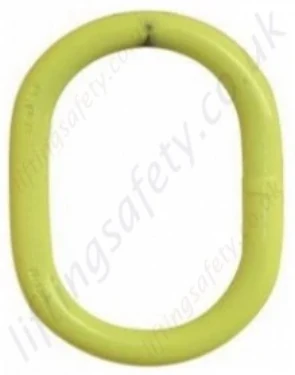

Gunnebo "M" Artic Offshore Master Link Range 9,300kg to 125,000kg

Model:  GAML-4290

Master Link M Dimensions
Part N° WLL (t) L (mm) E (mm) D (mm) Weight (kg) Unit Price Quantity
4290-T22689
M-9T-OS
9.3 270 140 25 3 £  23.62
4290-T22690
M-12T-OS
12.5 270 140 28 3.8 £  37.00
4290-T22691
M-18T-OS
18.5 270 140 32 5 £  44.32
4290-T22692
M-24T-OS
24 270 140 36 6.5 £  53.73
4290-T22693
M-30T-OS
30.5 270 140 40 8.1 £  66.90
4290-T22694
M-40T-OS
40 300 180 45 11.8 £  93.23
4290-T23139
M-50T-OS
50 300 200 50 15.2 £  130.67
4290-T24148
M-65T-OS
65 350 200 55 20.5 £  280.78
4290-T24149
M-90T-OS
90 450 250 70 42.4 £  602.73
4290-T24150
M-125T-OS
125 450 250 80 57.1 £  809.92
Pricing Currency: Add To Quote Request   ?

DNV Type approved arctic master ring.

Gunnebo M Offshore Master Link

DNV 2.7-1 and DNV2.7-3 Type Approved

Design Temperature -40 °C

The Arctic Offshore Master links are highly suitable to withstand shock loads and fatigue, even in extremely cold conditions. The new master link range has a design temperature of -40 °C, making it suitable for even the harshest weather conditions such as the North Sea.

High Visibility colour

To even further increase the safety on the work site, the Arctic master links are, like most of Gunnebo Industries’ offshore range, painted in a high visibility colour. This makes it easier for the operator to detect the lifting gear in severe weather conditions, keeping both load and personnel safe.

Improved Working Load Limits

It comes in an optimized range where each master link will have a wider and higher working load limit span than the old range. This makes it easier from a purchasing point of view, as well as decreasing the risk of incorrect use. A table for the container ratings and recommended master links can be found at the back of this leaflet.

100% Proof Loading

All lifts require reliable products with the highest safety to ensure a safe working environment as well as to protect the load. Gunnebo Industries perform rigorous testing in their factories before the product is released.

100 % of the components of all batches are proof loaded 2.5 times their working load limit and visually inspected by competent personnel. This is done without exception to guarantee highest quality and safety for the end user.

For the Arctic master links there is also a stress relieving additional heat treatment to make the product as suitable as possible for the harsh marine environment.

Specifications

Part N° WLL (t) Max. Container rating* (kgs) L (mm) E (mm) D (mm) Weight (kg)
M-9T-OS 9.3 4500 270 140 25 3.0
M-12T-OS 12.5 7500 270 140 28 3.8
M-18T-OS 18.5 13500 270 140 32 5.1
M-24T-OS 24.0 21000 270 140 36 6.5
M-30T-OS 30.5 25000 270 140 40 8.2
M-40T-OS 40.0 N/A 300 180 45 11.9
M-50T-OS 50.0 N/A 300 200 50 15.3
M-65T-OS 65.0 N/A 350 200 55 20.7
M-90T-OS 90.0 N/A 450 250 70 42.7
M-125T-OS 125.0 N/A 450 250 80 57.5
* For further information, see DNV 2.7-1
Master Link M Dimensions
