Grade 50 316L Stainless Steel Pump Lifting Chain - 500kg to 6300kg

Model:  GSSP-4481

Distance Between Masterlinks
Chain Size / Capacity
Length (metres) ?
@ £35.53 (min:2) (2 included in price)
Quantity


Choose Your Pricing Currency
Guide Price £ 117.17
Part N°: 4481-13984344   Add to Quote Request

Stainless pump chain fitted with lifting points at each end and at approx. 600mm or 1m centres. Sizes from 5mm to 18mm

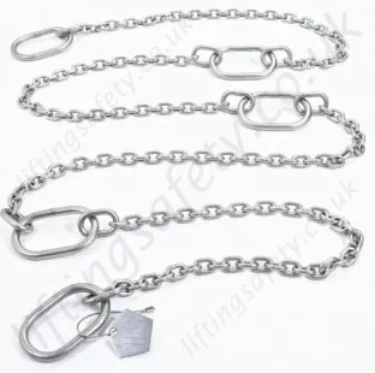

Gr50 Aisi 316l Pump Chain

Grade 50 316L Stainless Steel Pump Lifting Chain fitted with Lifting Points at each end and at approx. 1m centres. Alternative lifting centres and configurations, i.e. double leg or triple leg branch to suit your individual needs can be manufactured at very short notice.

Features

  • Manufactured from corrosion resistant Stainless Steel to EN 10088 / EN 10027-2 / 1.4404 (Marine Grade 316L).
  • European manufactured Gr.50 316L Short Link Chain.
  • Assembled, Welded and Tested at our Cradley manufacturing site
  • Full traceability for all components used in manufacturing process
  • Chain links are embossed with manufacturers mark and batch number every 12 links or 1m which ever is the lesser
  • Every Enlarged Link embossed with our manufacturing Batch Number.
  • All assemblies are Proof Load Tested to 2.5 x W.L.L.
  • Factor of Safety: 4:1
  • Full certification supplied with every sling in accordance with Machinery Directive 2006 / 42 / EC
  • Polished finish.
Id Tag

Identification Tally

Fitted by stainless steel wire and copper ferrule with the following markings

  • Material and Grade
  • Year of Manufacture
  • W.L.L.
  • Sling Identification number / traceability code
  • Manufacturer's mark
  • CE

Specifications

Dimensions (mm) W.L.L. (t) Weight Per M (Kg)
Chain (mm) D2 D1 L1 D L W L (approx.)
5 6 28 10 80 50 600 / 1000 500 Kg 0.65
6 8 38 13 115 60 600 / 1000 750 Kg 0.85
7 8 38 13 115 60 600 / 1000 1.0 1.20
8 10 38 16 115 60 600 / 1000 1.25 1.50
10 13 54 18 135 75 600 / 1000 2.0 2.50
13 16 70 22 160 90 600 / 1000 3.2 4.20
16 22 115 26 180 100 600 / 1000 5.0 6.10
18 26 140 32 200 110 600 / 1000 6.3 7.80

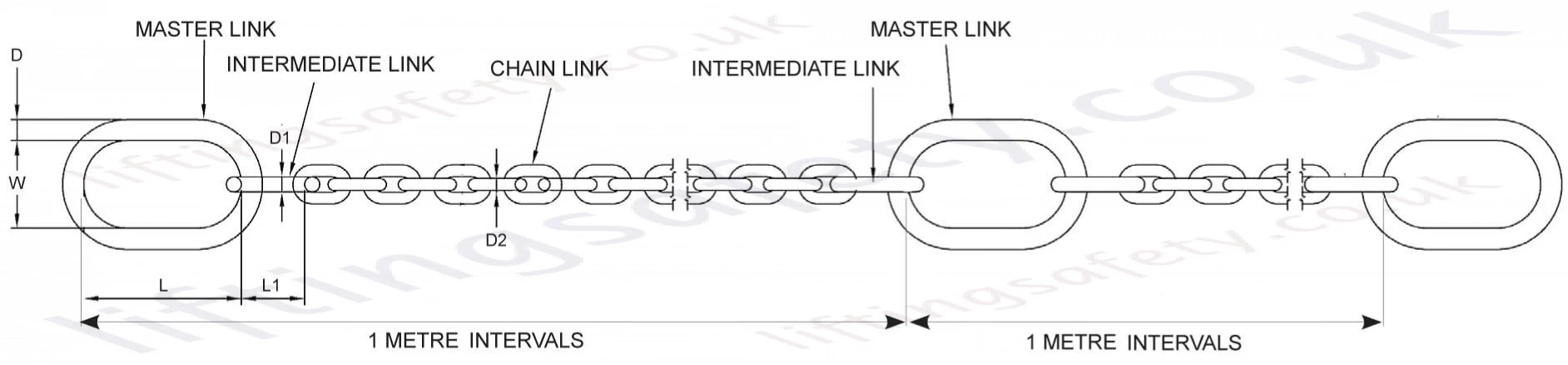

Dimensional Configuration Layout

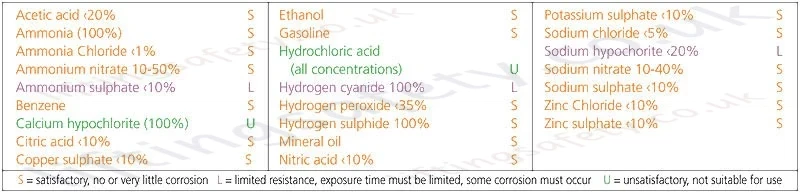

Corrosion Resistance Table

The table is a general guide only and should not be considered as a substitute for testing under your specific conditions.

Corrosion Resistance Table
