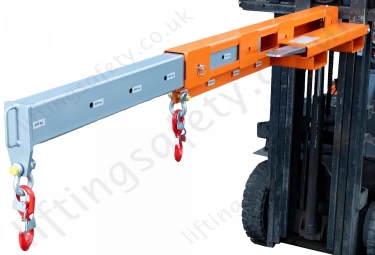

Fork Mounted Low Profile Extending Jib - 3 metre

Fork lift truck low height tine mounting extended jib attachment with capacity options from 100kg to 4000kg.

Model:

FMEL-5455

The low profile extending jib allows the movement of long and awkward loads from inaccessible locations but with up to ten different lifting positions and the added benefit of 2 hooks and shackles to 'cradle' your load.

Jib Features

Multi hook positioning from 500 - 3000 mm load centres
Supplied complete with 2 No. swivel hooks and bow shackles
Four way pocket entry for ease of storage
Maximum fork section 150 x 50 mm at 281 centres
Zinc plated heel pin for safe attachment to truck
Painted bright orange for safety

Capacity (kg) at centres (mm)										Weight (kg)	C of G (mm)	LLC (mm)
500	1000	1250	1500	1750	2000	2250	2500	2750	3000	Weight (kg)	C of G (mm)	LLC (mm)
1000	700	500	400	250	260	230	190	150	100	90	750-1010	N/A
1500	1100	900	650	450	400	350	300	220	150	100	750-1010	N/A
2000	1600	1200	900	600	500	400	350	280	200	109	750-1010	N/A
3000	2100	1600	1100	850	715	620	440	320	250	127	750-1010	N/A
4000	3200	2500	1900	1100	975	850	650	500	400	138	750-1010	N/A

Part N°	Capacity at 500mm centres	Capacity at 3000mm centres	Weight (kg)	C of G (mm)	LLC (mm)	Guide Price
5455-T28037	1000kg	100kg	90	750-1010	N/A	Quote Required
5455-T28038	1500kg	150kg	100	750-1010	N/A	Quote Required
5455-T28039	2000kg	200kg	109	750-1010	N/A	Quote Required
5455-T28040	3000kg	250kg	127	750-1010	N/A	Quote Required
5455-T28041	4000kg	400kg	138	750-1010	N/A	Quote Required
Add to Quote Basket × More information about shopping on LiftingSafety Quotation Help Please choose the correct configuration of your desired product, then once complete - press on the 'Request Quote' button, this item will then be added to your basket (). To view your basket, simply click on the basket icon at the top of the page OK ?

Description
Pricing

Jib Features

Multi hook positioning from 500 - 3000 mm load centres
Supplied complete with 2 No. swivel hooks and bow shackles
Four way pocket entry for ease of storage
Maximum fork section 150 x 50 mm at 281 centres
Zinc plated heel pin for safe attachment to truck
Painted bright orange for safety

Capacity (kg) at centres (mm)										Weight (kg)	C of G (mm)	LLC (mm)
500	1000	1250	1500	1750	2000	2250	2500	2750	3000	Weight (kg)	C of G (mm)	LLC (mm)
1000	700	500	400	250	260	230	190	150	100	90	750-1010	N/A
1500	1100	900	650	450	400	350	300	220	150	100	750-1010	N/A
2000	1600	1200	900	600	500	400	350	280	200	109	750-1010	N/A
3000	2100	1600	1100	850	715	620	440	320	250	127	750-1010	N/A
4000	3200	2500	1900	1100	975	850	650	500	400	138	750-1010	N/A

Part N°	Capacity at 500mm centres	Capacity at 3000mm centres	Weight (kg)	C of G (mm)	LLC (mm)	Guide Price
5455-T28037	1000kg	100kg	90	750-1010	N/A	Quote Required
5455-T28038	1500kg	150kg	100	750-1010	N/A	Quote Required
5455-T28039	2000kg	200kg	109	750-1010	N/A	Quote Required
5455-T28040	3000kg	250kg	127	750-1010	N/A	Quote Required
5455-T28041	4000kg	400kg	138	750-1010	N/A	Quote Required
