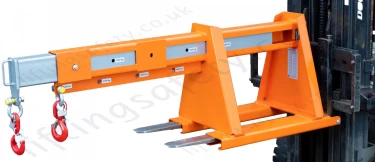

Fork Mounted Adjustable/Extending Jib Attachment - Capacity Options from 200kg to 4000kg

Forklift truck tine mounting jib arm with adjustable reach. 1000mm to 3000mm hook positions.

Model:

FMEJ-5453


Description

+

The extending fork mounted jib allows the movement of long and awkward loads from inaccessible loactions with up to 9 different loading positions and with the added benefit of two hooks and shackles so as to 'cradle' your load.

Attachment Features

  • Multi hook positioning from 1000 - 3000 mm load centres
  • Supplied complete with 2 No. swivel hooks
  • Maximum fork section 150 x 50 mm at 350 centres
  • Zinc plated heel pin for safe attachment to truck
  • Painted bright orange for safety

Optional Jib Features

  • Larger fork pocket option available 150 x 70 mm
Capacity (kg) at centres (mm) Weight (kg) C of G (mm) LLC (mm)
1000 1250 1500 1750 2000 2250 2500 2750 3000
1000 900 800 700 600 500 400 300 200 175 670-1010 N/A
1500 1250 1100 1000 800 700 600 500 400 175 670-1010 N/A
2000 1500 1350 1200 1000 800 700 600 400 175 670-1010 N/A
3000 2000 1750 1500 1250 1000 900 800 700 176 670-1010 N/A
4000 3000 2750 2400 2000 1500 1250 1000 850 178 670-1010 N/A
Pricing

+
Part N° Capacity at 1000mm Centres Capacity at 3000mm Centres Weight (kg) C of G (mm) LLC (mm) Guide Price Quantity
5453-T28032 1000kg 200 175 670-1010 N/A Quote Required
5453-T28033 1500kg 400 175 670-1010 N/A Quote Required
5453-T28034 2000kg 400 175 670-1010 N/A Quote Required
5453-T28035 3000kg 700 176 670-1010 N/A Quote Required
5453-T28036 4000kg 850 178 670-1010 N/A Quote Required
Add to Quote Basket   ?

The extending fork mounted jib allows the movement of long and awkward loads from inaccessible loactions with up to 9 different loading positions and with the added benefit of two hooks and shackles so as to 'cradle' your load.

Attachment Features

  • Multi hook positioning from 1000 - 3000 mm load centres
  • Supplied complete with 2 No. swivel hooks
  • Maximum fork section 150 x 50 mm at 350 centres
  • Zinc plated heel pin for safe attachment to truck
  • Painted bright orange for safety

Optional Jib Features

  • Larger fork pocket option available 150 x 70 mm
Capacity (kg) at centres (mm) Weight (kg) C of G (mm) LLC (mm)
1000 1250 1500 1750 2000 2250 2500 2750 3000
1000 900 800 700 600 500 400 300 200 175 670-1010 N/A
1500 1250 1100 1000 800 700 600 500 400 175 670-1010 N/A
2000 1500 1350 1200 1000 800 700 600 400 175 670-1010 N/A
3000 2000 1750 1500 1250 1000 900 800 700 176 670-1010 N/A
4000 3000 2750 2400 2000 1500 1250 1000 850 178 670-1010 N/A
Part N° Capacity at 1000mm Centres Capacity at 3000mm Centres Weight (kg) C of G (mm) LLC (mm) Guide Price Quantity
5453-T28032 1000kg 200 175 670-1010 N/A Quote Required
5453-T28033 1500kg 400 175 670-1010 N/A Quote Required
5453-T28034 2000kg 400 175 670-1010 N/A Quote Required
5453-T28035 3000kg 700 176 670-1010 N/A Quote Required
5453-T28036 4000kg 850 178 670-1010 N/A Quote Required
Add to Quote Basket   ?
