Fork Mounted Height and Length Adjustable Extending Jib - Capacities from 200kg to 5000kg

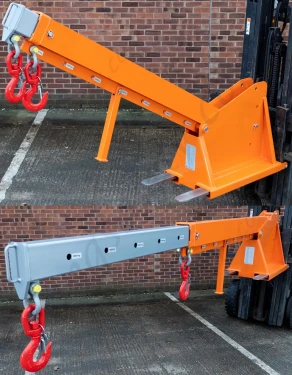

Forklift truck tine mounting jib arm with adjustable height and reach. 950mm to 3850mm hook positions.

Model:

FMEJ-5452


Description

+

The height adjustable extending jib has all the characteristics of the standard incline fixed jib with the additional benefit of angular lifts. This allows tall and awkwards loads to be lifted by increasing the lift height of the forklift truck or tele handler.

Features

  • Multi hook positioning from 950 - 3850 mm load centres
  • Adjustable angled lift at 0°, 15°, 30°, and 45°
  • Supplied complete with 2 No. swivel hooks
  • Maximum fork section 150 x 50 mm at 350 centres
  • Zinc plated heel pin for safe attachment to truck
  • Painted bright orange for safety

Optional Features

  • Larger fork pocket option available 150 x 70 mm

Dimensions and Specifications

Capacity (kg) at centres (mm) Weight (kg) C of G (mm) LLC (mm)
950 1200 1450 1700 1950 2200 2450 2600 2850 3100 3350 3600 3850
1000 750 700 650 600 550 500 450 400 350 300 250 200 295 840-1115 N/A
2000 1600 1400 1250 1100 1050 900 800 750 675 550 400 350 300 840-1115 N/A
3000 2250 2000 1850 1650 1500 1300 1100 900 750 675 550 500 310 840-1115 N/A
4000 3000 2600 2300 1900 1800 1775 1475 1100 900 775 750 650 315 840-1115 N/A
5000 3500 2750 2400 2000 1900 1800 1500 1250 1100 1050 1000 900 305 840-1115 N/A



Pricing

+
Part N° Capacity at 950mm Centres Capacity and 3850mm Centres Weight (kg) C of G (mm) LLC (mm) Guide Price Quantity
5452-T28027 1000 200 295 840-1115 N/A Quote Required
5452-T28028 2000 350 300 840-1115 N/A Quote Required
5452-T28029 3000 500 310 840-1115 N/A Quote Required
5452-T28030 4000 650 315 840-1115 N/A Quote Required
5452-T28031 5000 900 305 840-1115 N/A Quote Required
Add to Quote Basket   ?

The height adjustable extending jib has all the characteristics of the standard incline fixed jib with the additional benefit of angular lifts. This allows tall and awkwards loads to be lifted by increasing the lift height of the forklift truck or tele handler.

Features

  • Multi hook positioning from 950 - 3850 mm load centres
  • Adjustable angled lift at 0°, 15°, 30°, and 45°
  • Supplied complete with 2 No. swivel hooks
  • Maximum fork section 150 x 50 mm at 350 centres
  • Zinc plated heel pin for safe attachment to truck
  • Painted bright orange for safety

Optional Features

  • Larger fork pocket option available 150 x 70 mm

Dimensions and Specifications

Capacity (kg) at centres (mm) Weight (kg) C of G (mm) LLC (mm)
950 1200 1450 1700 1950 2200 2450 2600 2850 3100 3350 3600 3850
1000 750 700 650 600 550 500 450 400 350 300 250 200 295 840-1115 N/A
2000 1600 1400 1250 1100 1050 900 800 750 675 550 400 350 300 840-1115 N/A
3000 2250 2000 1850 1650 1500 1300 1100 900 750 675 550 500 310 840-1115 N/A
4000 3000 2600 2300 1900 1800 1775 1475 1100 900 775 750 650 315 840-1115 N/A
5000 3500 2750 2400 2000 1900 1800 1500 1250 1100 1050 1000 900 305 840-1115 N/A



Part N° Capacity at 950mm Centres Capacity and 3850mm Centres Weight (kg) C of G (mm) LLC (mm) Guide Price Quantity
5452-T28027 1000 200 295 840-1115 N/A Quote Required
5452-T28028 2000 350 300 840-1115 N/A Quote Required
5452-T28029 3000 500 310 840-1115 N/A Quote Required
5452-T28030 4000 650 315 840-1115 N/A Quote Required
5452-T28031 5000 900 305 840-1115 N/A Quote Required
Add to Quote Basket   ?
