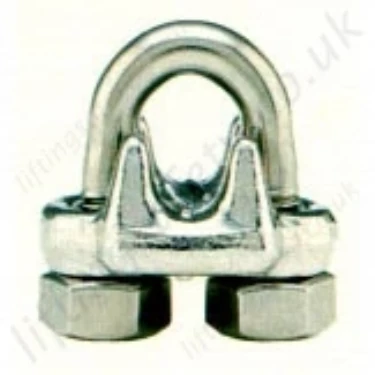

Crosby SS450 Forged Wire Rope Clips, Bulldog Grips - Rope Sizes Ranging 3mm to 16mm

Crosby Stainless Steel forged wire rope clips / grips.

Model:

Crosby SS-450 / FWRC-2358


Description

+

Unfortunately the SS450 wire rope clips have been discontinued. Please see our range of wire rope grips for a possible alternative.

  • Entire Stainless Steel Wire Rope clip is made from 316 Stainless Steel to resist corrosive and rusting action
  • Each base has a Product Identification Code (PIC) for material traceability, the name CROSBY or "CG", and a size forged into it.
  • All components are Electro-Polished.
  • All Clips are individually bagged or tagged with proper application instructions and warning information.
Crosby SS450 Forged Wire Rope Clips (Bulldog Grips)

Metric Dimensions

Rope Size SS-450 Stock No. Weight Per 100 (kg) Dimensions (mm)
(mm) (in.) A B C D E F G H
3-4 1/8 1011250 2.72 5.60 18.3 11.2 11.9 10.4 9.65 20.6 23.9
5 3/16 1011261 4.54 6.35 24.6 14.2 15.0 12.7 11.2 23.9 29.5
6-7 1/4 1011272 9.07 7.85 26.2 12.7 19.1 16.8 14.2 30.2 36.6
9-10 3/8 1011283 21.3 11.2 38.1 19.1 25.4 23.1 19.1 41.4 49.3
12-13 1/2 1011305 34.9 12.7 47.8 25.4 30.2 28.7 22.4 48.5 58.0
16 5/8 1011327 48.1 14.2 60.5 31.8 33.3 34.0 23.9 52.5 63.5

Imperial Dimensions

Rope Size (in.) SS-450 Stock No. Weight per 100 (lbs.) Dimensions (in.)
A B C D E F G H
1/8 1011250 6 .22 .72 .44 .47 .41 .38 .81 .94
3/16 1011261 10 .25 .97 .56 .59 .50 .44 .94 1.16
1/4 1011272 20 .31 1.03 .50 .75 .66 .56 1.19 1.44
3/8 1011283 47 .44 1.50 .75 1.00 .91 .75 1.63 1.94
1/2 1011305 77 .50 1.88 1.00 1.19 1.13 .88 1.91 2.28
5/8 1011327 106 .56 2.38 1.25 1.31 1.34 .94 2.06 2.50

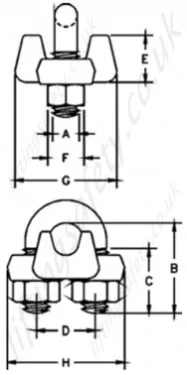

Dimensions

As advertised in Crosby General Catalogue 2009 Page 32, and previously in Crosby General Catalogue 2006 Page 28.

Crosby General Info

+
Wire Rope Clip Information

+
Downloads

+
Crosby-Catalogue-Page-Number-50.pdf

Product Warnings

(approx. 0.2Mb)
Crosby-catalogue-page-number-32.pdf

Crosby-catalogue-page-number-32.pdf

(approx. 0.2Mb)

Unfortunately the SS450 wire rope clips have been discontinued. Please see our range of wire rope grips for a possible alternative.

  • Entire Stainless Steel Wire Rope clip is made from 316 Stainless Steel to resist corrosive and rusting action
  • Each base has a Product Identification Code (PIC) for material traceability, the name CROSBY or "CG", and a size forged into it.
  • All components are Electro-Polished.
  • All Clips are individually bagged or tagged with proper application instructions and warning information.
Crosby SS450 Forged Wire Rope Clips (Bulldog Grips)

Metric Dimensions

Rope Size SS-450 Stock No. Weight Per 100 (kg) Dimensions (mm)
(mm) (in.) A B C D E F G H
3-4 1/8 1011250 2.72 5.60 18.3 11.2 11.9 10.4 9.65 20.6 23.9
5 3/16 1011261 4.54 6.35 24.6 14.2 15.0 12.7 11.2 23.9 29.5
6-7 1/4 1011272 9.07 7.85 26.2 12.7 19.1 16.8 14.2 30.2 36.6
9-10 3/8 1011283 21.3 11.2 38.1 19.1 25.4 23.1 19.1 41.4 49.3
12-13 1/2 1011305 34.9 12.7 47.8 25.4 30.2 28.7 22.4 48.5 58.0
16 5/8 1011327 48.1 14.2 60.5 31.8 33.3 34.0 23.9 52.5 63.5

Imperial Dimensions

Rope Size (in.) SS-450 Stock No. Weight per 100 (lbs.) Dimensions (in.)
A B C D E F G H
1/8 1011250 6 .22 .72 .44 .47 .41 .38 .81 .94
3/16 1011261 10 .25 .97 .56 .59 .50 .44 .94 1.16
1/4 1011272 20 .31 1.03 .50 .75 .66 .56 1.19 1.44
3/8 1011283 47 .44 1.50 .75 1.00 .91 .75 1.63 1.94
1/2 1011305 77 .50 1.88 1.00 1.19 1.13 .88 1.91 2.28
5/8 1011327 106 .56 2.38 1.25 1.31 1.34 .94 2.06 2.50

Dimensions

As advertised in Crosby General Catalogue 2009 Page 32, and previously in Crosby General Catalogue 2006 Page 28.

Crosby-Catalogue-Page-Number-50.pdf

Product Warnings

(approx. 0.2Mb)
Crosby-catalogue-page-number-32.pdf

Crosby-catalogue-page-number-32.pdf

(approx. 0.2Mb)

Pricing

Unfortunately this product has been discontinued and/or is no longer available. Please contact us for details on possible alternative products.
