Cromox Stainless Steel, Grade 6 / 60, Pump Lifting Chain with Lifting Rings at 1m Intervals, WLL 630kg to 7000kg

Model:  CSSP-4592

Chain Diameter / WLL
Chain Length (bearing to bearing) (m) ?
@ £37.31 (min:2) (2 included in price)
Quantity


Unit Price £ 123.03
Part N°: 4592-14040080   Add to Quote Request

Stainless steel pump lifting chains with a master link (lifting point) every 1000mm.

Grade 6 cromox pump lifting chains are manufactured in Germany using the highest quality of stainless steel to achieve market leader quality products.

Chains are supplied with and ID Tag (fixed permanently) detailing, Identification of the manufacturer (name or symbol or recognised mark), Identification of material grade ie: Grade 6 316 Stainless, Nominal chain size and number of legs, Serial Number, Year of manufacture & 'CE' Mark.

  • Fitted with Lifting Points at each end and at approx. 1m centres.
  • Proof Load Tested to 2.5 x W.L.L.
  • Factor of Safety: 4:1.
  • Manufactured from corrosion resistant Stainless Steel to EN 10088 / EN 10027-2 / 1.4404 or 1.4462 (AISI 316LN - Duplex).
  • Full traceability for all components used in manufacturing process.
  • Chain links are embossed with manufacturer's mark and batch number every 20 links or 1m which ever is the lesser.
  • Every Master Link embossed with cromox and our traceability Batch Number.
  • Full certification supplied with every sling in accordance with Machinery Directive 2006 / 42 / EC.
  • Finish: Polished.
  • Shackles NOT included.
  • Alternative lifting centres and configurations, i.e. double leg or triple leg branch to suit your individual needs can be manufactured. "Contact Us" with you requirements.

Mechanical properties (all components must be designed accordingly)

  • Breaking stress 630 N/mm2
  • Breaking elongation 25%
  • Stress at MTF (Manufacturing Test Force) 400N/mm2
  • Stress at WLL (Working Load Limit) 160 N/mm2
  • Minimum Factor of Safety 4:1
Cromox Stainless Steel Pump Lifting Chain

Dimensions and Specifications

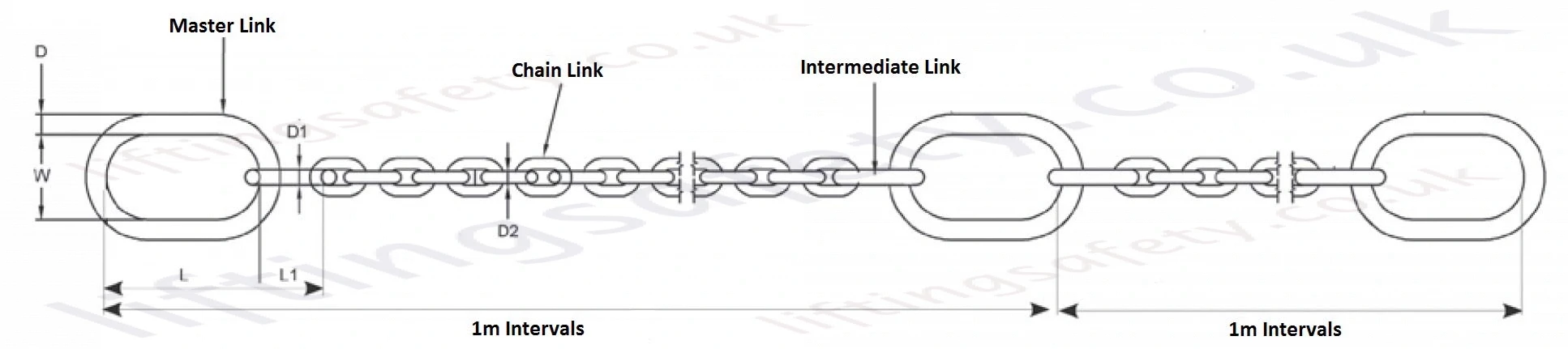

Dimensions
Part Code Chain Dia. (mm) D2 D1 mm L1 mm D mm L mm W mm W.L.L. Tonnes Weight Per M Kg
WHSS-CPK05063 5* 6 26 10 80 50 630 Kg 0.65
WHSS-CPK07125 7* 8 35 13 110 60 1.25 1.37
WHSS-CPK09200 9* 10 44 16 110 60 2 2.34
WHSS-CPK13385 13 16 70 22 160 90 3.85 4.12
WHSS-CPK16500 16** 18 85 22 160 90 5 5.04
WHSS-CPK18700 18** 22 115 26 180 100 7 6.94
