Protecta "AM100" Lightweight Aluminium Adjustable Rescue Tripod suitable for Fall Arrest & Manriding Applications

Model:  AM100 / 1T2AT-2945

Adjustable Tripod

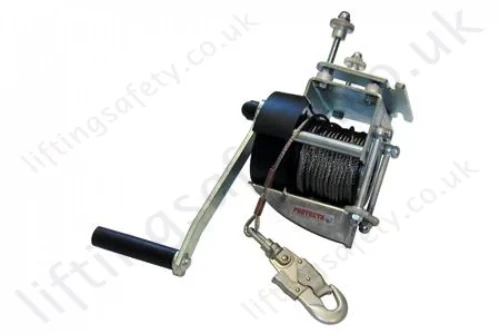

20m Rescue Winch

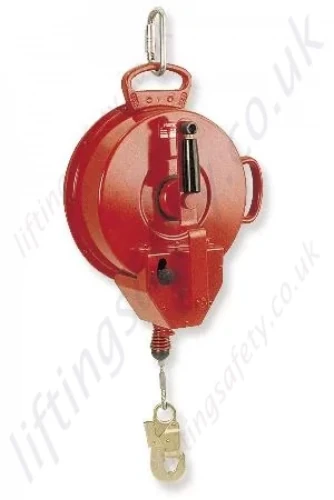

25m Retrieval Block
Adjustable Tripod 20m Rescue Winch 15m or 20m Retrieval Block
Retrieval Block Options ?
Rescue Winch Options ?
Accessories
 Carry Bag for AM100 Tripod
Quantity


Unit Price £ Quote Only
Part N°: 2945-6843804   Add to Quote Request

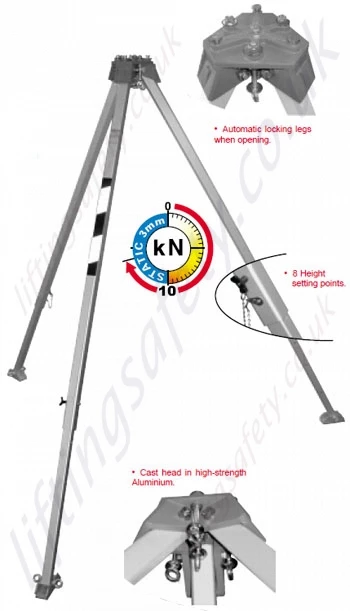

Adjustable tripod for working at height safely and rescue applications.

tripod featured

We are offering here the protecta working at height, lightweight aluminum tripod system; either as a stand along EN795 portable anchorage device or used in conjunction with specialist equipment such as a fall arrest inertia reel and manriding / rescue winch etc... With the correct combination of equipment and accessories the protecta / Sala tripod can be used for:

  • Fall arrest proection into a confined space
  • Fall arrest with integrated rescue system
  • Manriding (suspended access) with back-up fall arrest and independent rescue facility
  • Rescue from height or from a confirned space

When tasks have to be carried out in a confined space, a reliable anchorage point must be used to allow work to be completed effectively and safely. The AM100 Tripod, made from aluminium, is very easily transported and deployed. Its four independent anchorage points mean that a suspended work rig can be used in combination with a self retracting fall arrest device that incorporates a retrieval system, as fall arrest and rescue equipment.

Product Features

  • working diameter : ø 1,54 m à ø 2,56 m
  • closed length : 1,69 m
  • Usable load capacity 2 persons or 500 kg
  • Breaking strength > 10 kN
  • net weight 14,5 kg
  • many options available
  • complies with standard CE 0086 EN 795 CLASS B
  • telescopic adjustable feet
  • automatic locking legs when opened
  • stabilizer pad on each foot
  • 4 high strength anchorage points
  • aluminium section design
  • cast head in high-strength Aluminium
  • 8 height setting points (1,35 m à 2,35 m)

Optional Extras

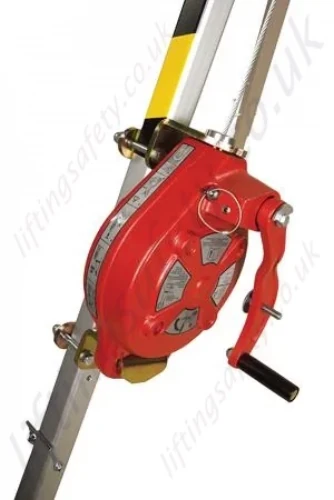

  • 15m Fall Arrest Retrieval Block
  • 25m Fall Arrest Retrieval Block
  • 20m Man-Riding and Rescue Winch

LiftingSafety Review:
The Protecta working at height Tripod is the budget offering from the Sala group. There is not as many accessories on hand as there is for either the Sala or the Miller tripods though it is a good product at a reasonable price. Speak to our sales team as the right tripod is usually dependant on whether the required accessories are available.
