Yale "UNOplus" Ratchet Lever Hoist - Pull-Lift Range from 750kg to 6000kg
Economical Robust Pressed Steel Body Lever Hoist from Yale lifting.
Information on the safe use of lever hoists
Hoist Features

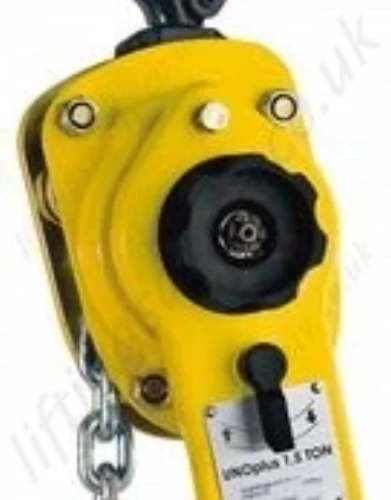

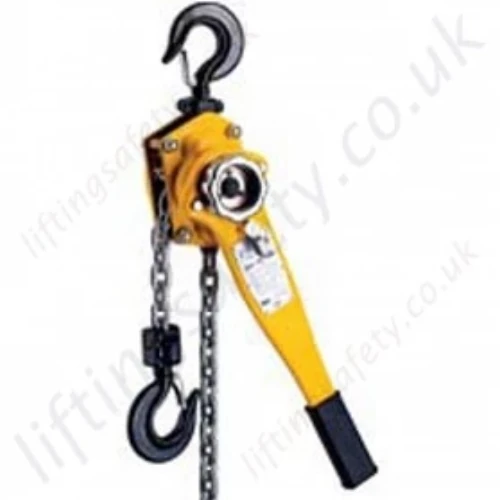

A hand lever hoist with a robust stamped steel construction and compact design. The Yale UNO lever hoist comes equipped with a hard chromium plated hand wheel and a sturdy bottom block with encapsulated bolt connections to prevent shearing and loosening of nuts. The Chain guide is integrated into the housing to eliminate fouling and jamming of the chain on the load sheave.
Due to optimized gearing a minimum effort is required to operate the short hand lever. The standard free chaining device serves to quickly attach the load or to pull the chain through the hoist in both directions. The low tare weight and a smooth free-chaining device make the UNO a handy, universal tool. Free chaining Yale lever hoists are either fitted with the free chaining feature as standard or it can be retrofitted in the field.
With the free chaining feature the load chain can be pulled freely through the hoist (in both lifting and lowering directions).
The advantage is that with high lifting heights the load chain can be quickly pulled through the hoist to achieve the required chain length and pretension. All free chaining devices fitted to Yale hoists operate automatically, this means that when a load is applied or exceeds a defined value the screw and disc type brake operates and holds the load safely.
Yale Lever Hoist Information
Yale Hand Lever Hoists are versatile, portable units for pulling, tensioning, lashing and lifting of loads.
The operation of the Hand Lever hoists is easy and safe. Light weight, robust malleable cast iron model, free chaining, slip clutch, stamped steel- or aluminium housing, low operating effort - in the Yale product range you will always find an optimal hoist for every type of operation. The brake system of all Yale hand lever hoists are based on the original Yale patent of the British engineer Thomas A. Weston dating back to 1875.
All parts of the load brake re made of high quality materials and are protected against corrosion.
The engineering principle behind the load brake finds its rightful place in all hand lever hoists world wide. Yale exclusively uses asbestos free friction discs in all their hoists. The surface protected zinc plated alloy steel chains fulfil all the requirements of national and international standards and regulations. In accordance with safety regulations, the chain stops are designed to withstand double the rated capacity to ensure the chain does not unintentionally run free.
The drop forged load and suspension hooks that yield under overload instead of breaking, are made of high tensile steel and are standard for all Yale hoists. The hooks are fitted with robust safety latches and rotate 360°.
Every Yale ratchet lever hoist is factory tested with overload. The units are supplied with a test certificate showing the serial-No. Operating instructions which contain an EC declaration of conformity are also attached to each unit.
Technical Information
| Capacity (kg) | Number Of Chain Falls | Standard Lift height (m) | Chain Dimensions d x p (mm) | Lift with one full lever turn (mm) | Handle pull at WLL (daN) | Weight With std. Lift (kg) |
| 750 | 1 | 1.5 | 6 x 18 | 20 | 20 | 7.2 |
| 1500 | 1 | 1.5 | 8 x 24 | 22 | 35 | 12.5 |
| 3000 | 1 | 1.5 | 10 x 30 | 17 | 40 | 21.5 |
| 6000 | 2 | 1.5 | 10 x 30 | 9 | 40 | 32 |

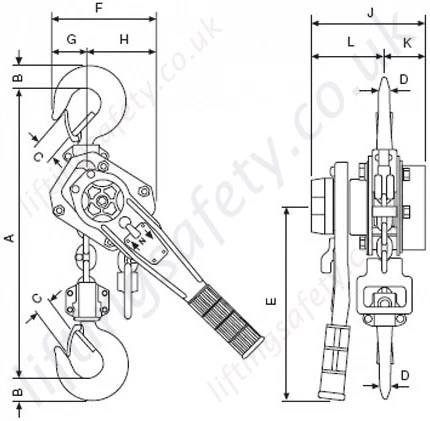

Specifications
| Capacity | A (min) (mm) |
B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | J (mm) | K (mm) | L (mm) |
| 750kg | 295 | 21 | 24 | 13 | 235 | 111 | 33 | 78 | 142 | 55 | 87 |
| 1500kg | 410 | 28 | 32 | 21 | 330 | 170 | 80 | 90 | 180 | 80 | 100 |
| 3000kg | 510 | 36 | 40 | 27 | 380 | 220 | 100 | 120 | 210 | 90 | 120 |
| 6000kg | 690 |
45 |
44 | 33 | 380 | 220 | 100 | 120 | 210 | 90 | 120 |
We have a wide range of hoists available on lifting safety all the way from manual lever hoists to electric, pneumatic and hydraulic. To view them all please use the link provided.
Yale UNOplus Operating Manual
These instructions are intended to acquaint the user with the product and enable him to use it to the full extent of its intended capabilities. The operating instructions contain important information on how to handle the product in a safe, correct and economic way. Acting in accordance with these instructions helps to avoid dangers, reduce repair cost and down time and to increase the reliability and lifetime of the product. Apart from the operating instructions and the accident prevention act valid for the respective country and area where the product is used, also the commonly accepted regulations for safe and professional work must be adhered to.(approx. 0.9Mb)
