Tractel Dynafor LLZ Load Cell - Range from 250kg to 20,000kg

Model:

Tractel Dynafor LLZ / TD-3340


Description

+

Unfortunatley this product has been discontinued. Please click to be redirected to the New Tractel Dynafor LLZ2 Load Cell - Range from 1000kg to 20,000kg - which superseeds this Tractel LLZ.

Dynafor LLZ

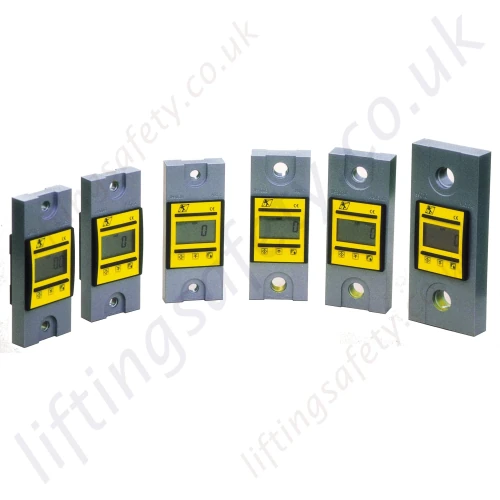

The dynafor® LLZ load indicator is a device for measuring tensile forces and checking loads.

Dynafor LLZ range of electronic dynamometer with digital for pulling and lifting applications. Using strain gauge sensor LLZ are designed for use between shackles or brackets. These units operate in all positions for forces measurement and vertically for load checking and measurement.

Features

  • Instant and accurate digital display ; 18 mm figures.
  • Lightweight, compact, strong, weather and dust proof.
  • Long battery life, up to 850 hours (using 2000 mAh batteries).
  • Overload indicator.
  • High overload coefficient 2:1.
  • Tare over full range.
  • Display in mass or force.
  • Accuracy : ± 0,8% of capacity.
  • Liquid crystal display (LCD) : 5 digits 18 mm high.
  • Coefficient of utilisation : more than 6.
  • Ambient temperature range : -10°C to +40°C.
  • Weatherproof and dust-proof in accordance with EN 60 529 : IP65.
  • Body in painted aluminium alloy.

Applications

  • Monitoring lifting systems.
  • Test bench.
  • Checking data input and output in factories.
  • Checking tension in power lines and guy ropes.
  • Checking the pulling capacity of trawler.

Example of use

Specification



Part No: LLZ - 0.25 LLZ - 0.5 LLZ - 1 LLZ - 2 LLZ - 3.2 LLZ - 6.4 LLZ - 10 LLZ - 20
Capacity (kg) 250 500 1000 2000 3200 6400 10000 20000
Accuracy 0.8% (±kg) 2 4 8 15 25 50 80 150
Min. display (kg) 0.5 1 2 5 5 10 20 50
Weight (kg) 1.1 1.1 1.1 1.3 1.5 2.3 4 7.15
Dimensions (mm) 220x90x42 220x90x42 220x90x42 233x90x48 243x97x48 275x115x48 325x110x56 371x134x67
Dimensions

+

Dimensions

Dimensions

Models Dims LLZ - 0,25 LLZ - 0,5 LLZ - 1 LLZ - 2 LLZ - 3,2 LLZ - 6,4 LLZ - 10 LLZ - 20
Capacity kg 250 500 1000 2000 3200 6400 10000 20000
Accuracy 0.8 % ± kg 2 4 8 15 25 50 80 150
Smallest load increment kg 0.5 1 2 5 5 10 20 50
Test load kg 0.5 1 2 4 6.4 12.8 20 40
Max. display kg 250 500 1000 2000 3200 6400 10000 20000
Height of display mm 18 18 18 18 18 18 18 18
Weight kg 1.1 1.1 1.1 1.3 1.5 2.3 4 7
Dimensions mm A 220 220 220 233 243 275 325 371
  B 90 90 90 90 97 115 110 134
C 42 42 42 48 48 48 62 72
Ø D 14 14 14 22 22 28 42 54
E 196 196 196 207 207 217 257 269
F 12 12 12 13 18 29 34 51
G 35 35 35 45 45 54 80 84
H 36.5 36.5 36.5 46.5 51.5 70 95 120
I 16 16 16 25 25 31 50.5 65
J 27 27 27 33 33 33 56.5 67
K 10 10 10 10 10 10 5 5
L 5 5 5 5 5 5 - -
Shackles class S NF E52-144
Capacity kg 1.5 1.5 1.5 3.25 3.25 6.5 13.5 25
Pin diameter mm 13 13 13 20 20 25 38 50

Downloads

+
dynafor-llz-user.pdf

Operating and Safety Instructions.

(approx. 1.2Mb)
dynafor-llz.pdf

Technical Information

(approx. 0.1Mb)

Unfortunatley this product has been discontinued. Please click to be redirected to the New Tractel Dynafor LLZ2 Load Cell - Range from 1000kg to 20,000kg - which superseeds this Tractel LLZ.

Dynafor LLZ

The dynafor® LLZ load indicator is a device for measuring tensile forces and checking loads.

Dynafor LLZ range of electronic dynamometer with digital for pulling and lifting applications. Using strain gauge sensor LLZ are designed for use between shackles or brackets. These units operate in all positions for forces measurement and vertically for load checking and measurement.

Features

  • Instant and accurate digital display ; 18 mm figures.
  • Lightweight, compact, strong, weather and dust proof.
  • Long battery life, up to 850 hours (using 2000 mAh batteries).
  • Overload indicator.
  • High overload coefficient 2:1.
  • Tare over full range.
  • Display in mass or force.
  • Accuracy : ± 0,8% of capacity.
  • Liquid crystal display (LCD) : 5 digits 18 mm high.
  • Coefficient of utilisation : more than 6.
  • Ambient temperature range : -10°C to +40°C.
  • Weatherproof and dust-proof in accordance with EN 60 529 : IP65.
  • Body in painted aluminium alloy.

Applications

  • Monitoring lifting systems.
  • Test bench.
  • Checking data input and output in factories.
  • Checking tension in power lines and guy ropes.
  • Checking the pulling capacity of trawler.

Example of use

Specification



Part No: LLZ - 0.25 LLZ - 0.5 LLZ - 1 LLZ - 2 LLZ - 3.2 LLZ - 6.4 LLZ - 10 LLZ - 20
Capacity (kg) 250 500 1000 2000 3200 6400 10000 20000
Accuracy 0.8% (±kg) 2 4 8 15 25 50 80 150
Min. display (kg) 0.5 1 2 5 5 10 20 50
Weight (kg) 1.1 1.1 1.1 1.3 1.5 2.3 4 7.15
Dimensions (mm) 220x90x42 220x90x42 220x90x42 233x90x48 243x97x48 275x115x48 325x110x56 371x134x67

Dimensions

Dimensions

Models Dims LLZ - 0,25 LLZ - 0,5 LLZ - 1 LLZ - 2 LLZ - 3,2 LLZ - 6,4 LLZ - 10 LLZ - 20
Capacity kg 250 500 1000 2000 3200 6400 10000 20000
Accuracy 0.8 % ± kg 2 4 8 15 25 50 80 150
Smallest load increment kg 0.5 1 2 5 5 10 20 50
Test load kg 0.5 1 2 4 6.4 12.8 20 40
Max. display kg 250 500 1000 2000 3200 6400 10000 20000
Height of display mm 18 18 18 18 18 18 18 18
Weight kg 1.1 1.1 1.1 1.3 1.5 2.3 4 7
Dimensions mm A 220 220 220 233 243 275 325 371
  B 90 90 90 90 97 115 110 134
C 42 42 42 48 48 48 62 72
Ø D 14 14 14 22 22 28 42 54
E 196 196 196 207 207 217 257 269
F 12 12 12 13 18 29 34 51
G 35 35 35 45 45 54 80 84
H 36.5 36.5 36.5 46.5 51.5 70 95 120
I 16 16 16 25 25 31 50.5 65
J 27 27 27 33 33 33 56.5 67
K 10 10 10 10 10 10 5 5
L 5 5 5 5 5 5 - -
Shackles class S NF E52-144
Capacity kg 1.5 1.5 1.5 3.25 3.25 6.5 13.5 25
Pin diameter mm 13 13 13 20 20 25 38 50

dynafor-llz-user.pdf

Operating and Safety Instructions.

(approx. 1.2Mb)
dynafor-llz.pdf

Technical Information

(approx. 0.1Mb)
