Camlok BRL Spring Balanced C-Hook - Range 1000kg to 3000kg

Camlok Spring Balanced C-Hooks.

Model:

Camlok BRL / SBC-365


Unfortunately the Camlok BRL C-Hooks are now longer available. Please see our range of Coil/Pipe Lifting Hooks for a possible alternative.

The BRL C-Hook can be modified to suit a wide range of applications. Please contact our sales team for more information.

  • Designed for lifting and handling of pipe sections in the horizontal position.
  • Fitted with spring balance, adjustable end stop and chain.
  • The end stop ensures correct positioning of load, safety chain ensures protection for the load and for the operator.

Specifications

Model WLL Pipe
Length (m)
Self Weight
(kg)
BRL1.0/1000 1000kg 1 58
BRL2.0/1000 2000kg 1 80
BRL3.0/1000 3000kg 1 100
BRL1.0/2000 1000kg 1 or 2 160
BRL2.0/2000 2000kg 1 or 2 185
BRL3.0/2000 3000kg 1 or 2 290
BRL3.0/3000 3000kg 2 or 3 470

Technical Dimensions

Technical Dimensions for the Camlok BRL Spring Balanced C-Hook

Model WLL
(kg)
Pipe
Length (m)
Self Weight
(kg)
A (mm) B (mm) C (mm) D (mm)
Min-Max
E (mm) F (mm) G (mm) H (mm) J (mm)
BRL1.0/1000 1000 1 58 850 600 100 485-615 400 105 100 200 100
BRL2.0/1000 2000 1 80 850 600 120 570-710 490 170 120 250 120
BRL3.0/1000 3000 1 100 850 600 140 650-800 580 190 140 300 140
BRL1.0/2000 1000 1 or 2 160 1400 1150 120 660-1150 490 170 120 250 120
BRL2.0/2000 2000 1 or 2 185 1400 1150 140 710-1200 580 190 140 300 140
BRL3.0/2000 3000 1 or 2 290 1400 1150 160 760-1250 720 210 160 400 160
BRL3.0/3000 3000 2 or 3 470 2100 1550 200 1000-1450 860 250 200 460 200

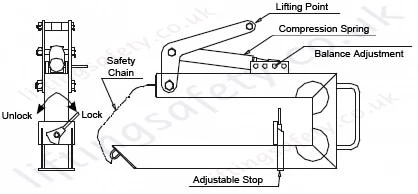

Restrictions

If collared pipes are to be lifted adjust the balance adjustment accordingly.
Never try to lift a load longer than the length specified. Maximum working load limit must not be exceeded.
For standard pipes use the C-hook in the mid position with the backstop as far back as possible. For collared pipes use the C-hook in the far position with the back stop as far back as possible.
For collared pipes use the C-hook in the forward position with the back stop as far back as possible. For short pipes use the C-hook in the mid position with the back stop positioned at half the length differance.

Unfortunately the Camlok BRL C-Hooks are now longer available. Please see our range of Coil/Pipe Lifting Hooks for a possible alternative.

The BRL C-Hook can be modified to suit a wide range of applications. Please contact our sales team for more information.

  • Designed for lifting and handling of pipe sections in the horizontal position.
  • Fitted with spring balance, adjustable end stop and chain.
  • The end stop ensures correct positioning of load, safety chain ensures protection for the load and for the operator.

Specifications

Model WLL Pipe
Length (m)
Self Weight
(kg)
BRL1.0/1000 1000kg 1 58
BRL2.0/1000 2000kg 1 80
BRL3.0/1000 3000kg 1 100
BRL1.0/2000 1000kg 1 or 2 160
BRL2.0/2000 2000kg 1 or 2 185
BRL3.0/2000 3000kg 1 or 2 290
BRL3.0/3000 3000kg 2 or 3 470

Technical Dimensions

Technical Dimensions for the Camlok BRL Spring Balanced C-Hook

Model WLL
(kg)
Pipe
Length (m)
Self Weight
(kg)
A (mm) B (mm) C (mm) D (mm)
Min-Max
E (mm) F (mm) G (mm) H (mm) J (mm)
BRL1.0/1000 1000 1 58 850 600 100 485-615 400 105 100 200 100
BRL2.0/1000 2000 1 80 850 600 120 570-710 490 170 120 250 120
BRL3.0/1000 3000 1 100 850 600 140 650-800 580 190 140 300 140
BRL1.0/2000 1000 1 or 2 160 1400 1150 120 660-1150 490 170 120 250 120
BRL2.0/2000 2000 1 or 2 185 1400 1150 140 710-1200 580 190 140 300 140
BRL3.0/2000 3000 1 or 2 290 1400 1150 160 760-1250 720 210 160 400 160
BRL3.0/3000 3000 2 or 3 470 2100 1550 200 1000-1450 860 250 200 460 200

Restrictions

If collared pipes are to be lifted adjust the balance adjustment accordingly.
Never try to lift a load longer than the length specified. Maximum working load limit must not be exceeded.
For standard pipes use the C-hook in the mid position with the backstop as far back as possible. For collared pipes use the C-hook in the far position with the back stop as far back as possible.
For collared pipes use the C-hook in the forward position with the back stop as far back as possible. For short pipes use the C-hook in the mid position with the back stop positioned at half the length differance.

Pricing

Unfortunately this product has been discontinued and/or is no longer available. Please contact us for details on possible alternative products.
