LIFTINGSAFETY

POWERED - Pivoting Arm Counterbalance Workshop Floor Crane, Hand or Powered Lift & Travel. Many options Inc 30 degree Rotation.

Power Lift and/or Travel Counter-balance Floor Cranes. Stainless Steel Options Available. Can be made to customer specification

Model:

PLFC-2959


These options of floor crane provide Hydraulic powered lifting (12v DV Hydraulic power pack) and electric drive motors for effortless propulsion of goods and equipment making for an extremely maneuverable version of what would otherwise be very heavy and awkward. There are many additional features that can be added to the design to convert the standard powered counterbalance option / range of floor cranes into your perfect manual handling assistant. They can be supplied fully manufactured from stainless steel.

Note: The pictures shown are our artists impression only and are only indicative of our capability. (for display purposes only) All cranes are made individually and the the design may be subject to change according to your required specification; the pictures are not to scale, general arrangement drawings will be issued for approval on receipt of your order.

Can the additional cost to power all motions be justified?

  • Greater efficiency
  • Increased productivity
  • Massively reduced manual handling
  • Reduced possibility of user injury
  • User friendly - encourages user compliance and willingness to use the lifting equipment supplied to made the process safer
  • For occasional use the additional cost may not be justified though if you are lifting and moving heavy loads with your counterbalanced floor crane or if you are using it often or repeatedly then power lift may not only save time it will also increase productivity and reduce or eliminate the possibility of manual handling injury or repetitive strain injury.

Warning: Ensure that all components are attached and no damage is visible to the unit before using.

Floor Crane Drive and Lift Options

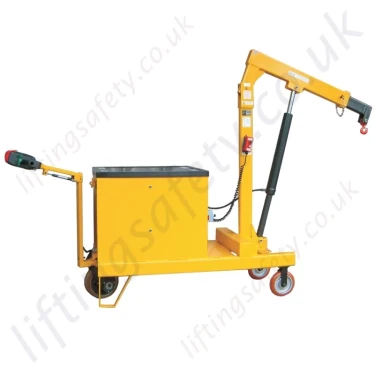

Power Lift Power Drive Counterbalance Floor Crane
Power Lift Power Drive Counterbalance Floor Crane
(can be power drive only)

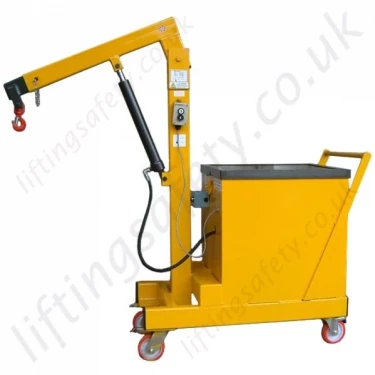

Power Lift Only Counterbalance Floor Crane
Power Lift Only Counterbalance Floor Crane
(can be power drive also)

General Safety Instructions

  • Do not ride on this unit
  • Do not lift people.
  • user must be competent.
  • Do not move with a high load suspended. (load should be just clear off the ground).
  • Do not use on slopes or inclines or rough ground .
  • Insure you have read and understood the instruction manual before using the counterbalance crane.

Floor Cranes With Spark Resistant Features / Explosion proof.

For Floor cranes to be used in potentially explosive areas / atmospheres such as Zone 1 or 2, SELS can include any anti-sparking features that our customers specify - this will increase its anti-sparking properties and therefore make the crane more suitable for use in a potentially explosive environment!

SELS will not to take the responsibility of supplying our floor cranes described as 'spark proof' as this is ‘too broad’ a term. We believe that total compliance is probably impossible because of the mechanical operation and movement of a floor crane; i.e. we cannot offer a 100% guarantee that no part of the assembly is capable of generating a spark which could ignite a flame!  IE: SELS will supply / manufacture cranes with anti sparking features to our customer’s requirements though will not certified them as sparkproof / explosion proof. Our cranes have been successfully supplied to customers in the offshore Oil and Gas industry in the UK on this basis.


LiftingSafety Review:
Counterbalanced floor cranes are very heavy items of lifting equipment and therefore they can be a difficult to handle (manoeuvre) especially with greater lifting capacity cranes. This is the reason that power drive on a counter weight crane is particularly appropriate and will eliminate the possibility of any manual handling injuries. Power drive and power lift will speed up the lift process and it can be argued will make the lift safer. We can supply as power lift - power drive or power lift and manual manoeuvre.

Optional Features and Accessories

Listed below are some additional features that can be added to any of our standard range of counterbalance floors cranes to customise the them so that they will be more appropriate for your environment. All these features can also be supplied with our stainless steel cranes.

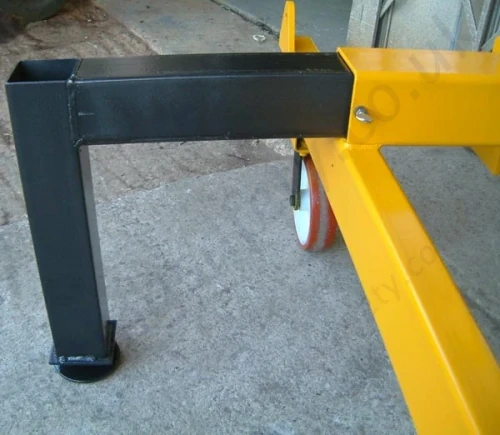

Out-riggers
optional outriggers

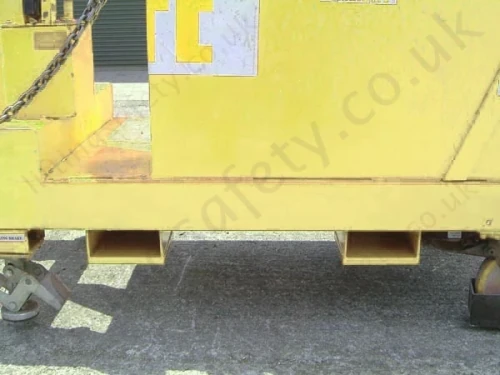

Fork lift truck lifting pockets
optional fork truck pockets

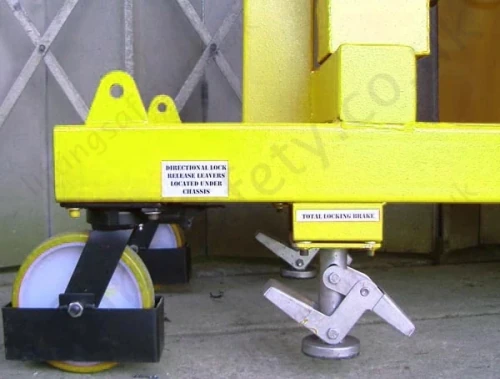

Directional locking castors or anti static castors
directional locking castors

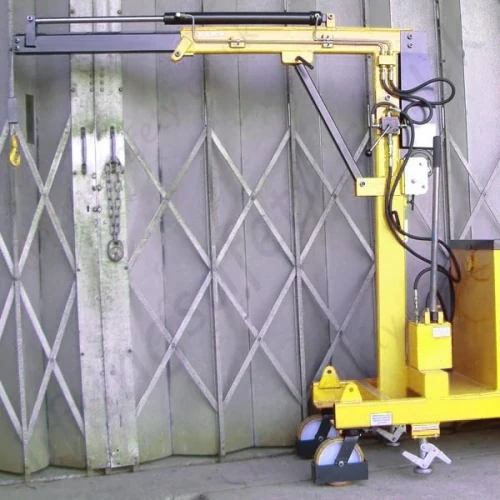

Hydraulic telescopic jib adjustment
optional hydraulic telescopic jib extension

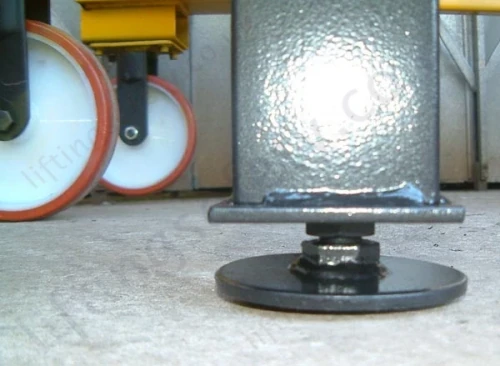

Jacking feet
optional jacking feet

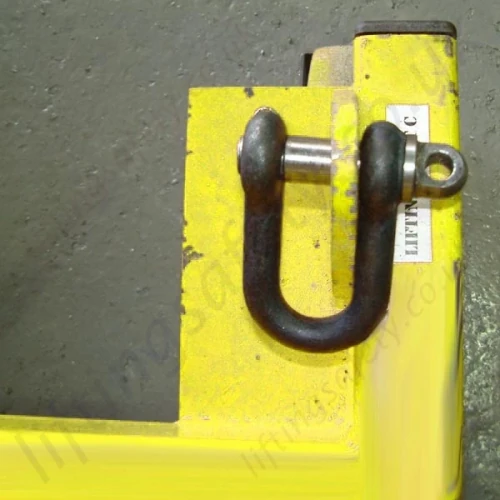

Lifting and slinging point for overhead crane
optional certified lifting points
Vertical column adjustment
optional telescopic vertical jib adjustment

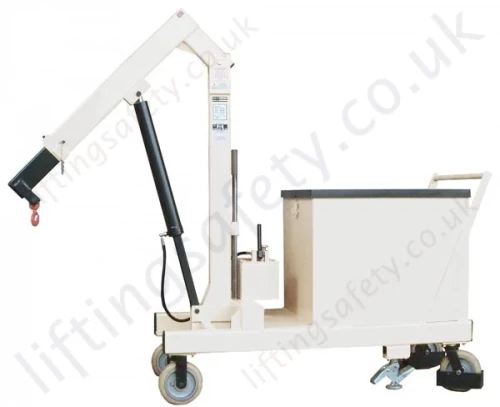

Paint finish suitable for offshore use or powder coated
Offshore paint spec
Auxilliary adjustable height lifting Hook

Awaiting Image

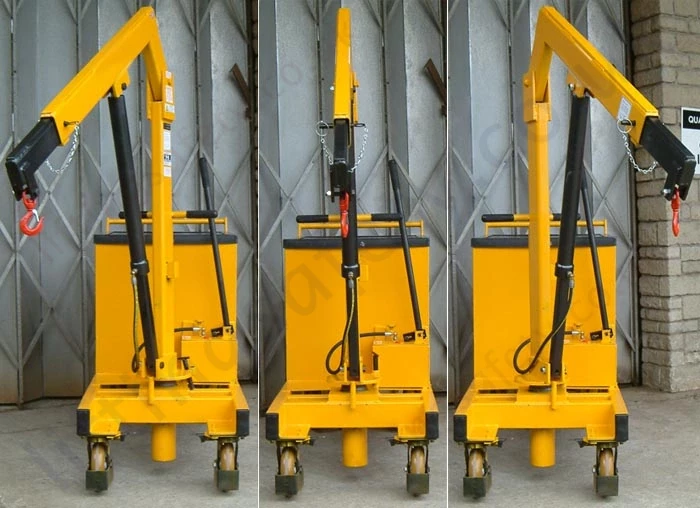

Articulating Jib Arm (15° left/right)
Articulating/Rotating Jib Arm

LiftingSafety Review:
Counterbalanced floor cranes are very heavy items of lifting equipment and therefore they can be a difficult to handle (manoeuvre) especially with greater lifting capacity cranes. This is the reason that power drive on a counter weight crane is particularly appropriate and will eliminate the possibility of any manual handling injuries. Power drive and power lift will speed up the lift process and it can be argued will make the lift safer. We can supply as power lift - power drive or power lift and manual manoeuvre.

Power Lift OnlyCounter Balanced Floor Crane with Power Lift Only (Not Power Driven)

This option of floor crane provides powered lifting of goods and equipment though still remaining manually maneuvered; this is an enhancement to the standard counterbalance range of floor cranes and can be supplied fully manufactured from stainless steel. We can supply our floor cranes with electric power lift, with manual lift (hydraulic hand pump) or any other combination such as power driven and power drive to suit the customers individual requirements. For occasional use the additional cost may not be justified though if you are lifting and moving heavy loads with your counterbalanced floor crane or if you are using it often or repeatedly then power lift may not only save time it will also increase productivity and reduce or eliminate the possibility of manual handling injury or repetitive strain injury.

Electric Lift Floor Crane Specifications

  • 125Kg to 2000kg safe working load. (special bespoke SWL also available)
  • Low Pressure Hyd System With Long Life Seals fitted
  • 3 Position Jib Extension With Swivel Hook And Fitted With A Safety Latch
  • 24 volt Hydraulic / electric Pump With coil Wander Lead and Manual hand Pump For infinite Adjustment
  • Fitted with 2 x 12 Volt  Heavy Duty Batteries And supplied with a Wall Mounted Battery Charger
  • Supplied Complete With Ballast Weights
  • Can be supplied made from stainless steel
  • We offer 1 Year Warranty on this Floor Crane
  • Test  Certificate and CE cert of conformity supplied as standard
Power Lift Front ViewThe workings - Inside the power lift

LiftingSafety Review:
Counterbalanced floor cranes are very heavy items of lifting equipment and therefore they can be a difficult to handle (manoeuvre) especially with greater lifting capacity cranes. This is the reason that power drive on a counter weight crane is particularly appropriate and will eliminate the possibility of any manual handling injuries. Power drive and power lift will speed up the lift process and it can be argued will make the lift safer. We can supply as power lift - power drive or power lift and manual manoeuvre.

Power-Lift and/or Power Drive Counterbalance Floor Crane

We can supply our floor cranes with power propulsion and power lift to suit the customers individual requirements. For  occasional use the extra cost may be difficult to justify though if you are lifting and moving heavy loads on a regular basis for example in a production environnement  then the addition of power lift and or power travel may save time and money, increase productivity and reducing or eliminate the possibility of manual handling injury or repetitive strain injuries. We can also supply this option for crane made from stainless steel.

Floor Crane Specifications

  • 125kg to 2000kg safe working load. (special bespoke SWL also available)
  • Low Pressure Hyd System With Long Life Seals fitted
  • 3 Position Jib Extension With Swivel Hook And Fitted With A Safety Latch
  • 24 volt Hydraulic / electric Pump With coil Wander Lead and Manual hand Pump For infinite Adjustment
  • Fitted with 2 x 12 Volt  Heavy Duty Batteries And supplied with a Wall Mounted Battery Charger
  • 24 Volt Power Drive Wheel With Non-Marking Castor, Electromagnetic Brake
  • Supplied Complete With Ballast Weights
  • Can be supplied made from stainless steel
  • We offer 1 Year Warranty on this Floor Crane
  • Test  Certificate and CE cert of conformity supplied as standard
  • Many additional features also available, contact our sales department for further information or advise.

Crane Features

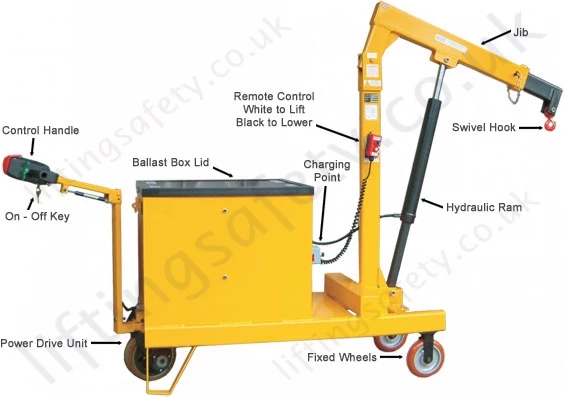

Power Lift, Power Drive Floor Crane Features Diagram

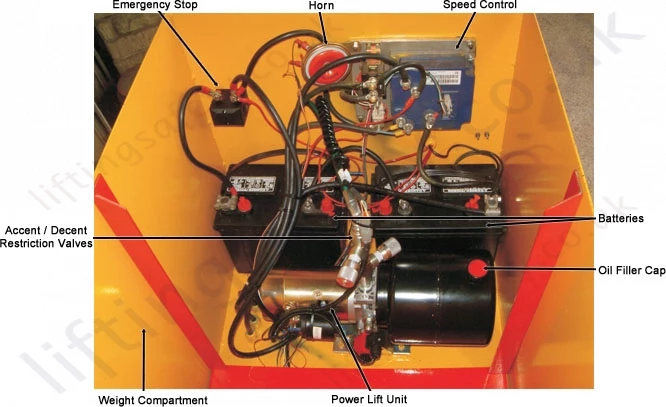

Inside the Ballast Box

Inside the Ballast Box - Labelled Diagram

3 Position Switch and Multi-Pole Connector

Three Position Switch

Position 1. Charge
Position 2. Off
Position 3. Lift
To charge the crane plug the battery charger into the multi-pole connector select position 1 on switch charging light on battery charger will come on.

Accent and Decent Control Valves

Valve Controls

When precise lifting and lowering is required close restriction valves, this valve will slow the ascent and descent of the jib.

Control Handle

Control Handle FeaturesA. Key
B. horn
C. forward / reverse paddle
D. Anti trapping switch
E. Battery level indicator

Other Features

Emergency Stop Button
Emergency Stop This will Isolate the complete unit, nothing will operate when the button is presses.
Battery Level Indicator
Battery Level Indicator to keep the batteries at maximum capacity keep the crane on charge when not in use.
Replace the wander lead when not in use
Return the wander lead when not in use.

LiftingSafety Review:
Counterbalanced floor cranes are very heavy items of lifting equipment and therefore they can be a difficult to handle (manoeuvre) especially with greater lifting capacity cranes. This is the reason that power drive on a counter weight crane is particularly appropriate and will eliminate the possibility of any manual handling injuries. Power drive and power lift will speed up the lift process and it can be argued will make the lift safer. We can supply as power lift - power drive or power lift and manual manoeuvre.
counter-balance-floor-cranes-dimensions.pdf

Dimensional Drawings

Full dimensional drawings for this counter balanced floor crane.
(approx. 0.3Mb)
safe-use-of-floor-cranes.pdf

Safety Instructions

General safety instructions for the safe use of floor cranes.
(approx. 0.1Mb)

Unfortunately this product has been discontinued and/or is no longer available. Please contact us for details on possible alternative products.
