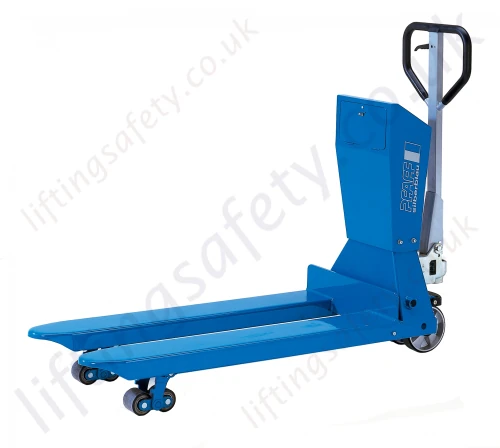

Pfaff Silverline Weighing Pallet Truck with Scales, Forks 570mm x 1150mm - 2000kg,

Pfaff-Silberblau HU W-20 S pallet truck with scales.

Model:

PP-3171


This page has now expired. Unfortunately this product is no longer available. Please view our full range of Weighing Pallet Trucks Fitted with Scales or Contact us with your requirements for a possible suitable alternative.

For transportation and weighing of palletised goods and box pallets.

  • Ergonomic safety control handle for one-hand operation of lifting, driving and lowering.
  • Ergonomic rubber control handle for safe handling.
  • Measuring range from 0 up to 2000 kg in 1 kg steps.
  • Easy to read LCD display.
  • Accuracy +/- 0.1 % of the end value.
  • The readings start at 1.0 kg.
  • The weighing system is calibrated at the factory.
  • The system is designed for simple weighing jobs, such as batching or filling processes.
  • Low maintenance hydraulic pump with hard chromium plated piston and pressure relief valve.
  • Frame and forks in robust steel construction, adjustable connecting rods, especially hardened axles and the high quality powder coating ensure a long life expectancy.
  • Steering angle of 105 degree to each side for easy handling in confined spaces.

Dimensions and Specifications

Type Dimensions HU W-20 S
Lifting capacity in tonnes   2.0
Steering-/load wheels*   *PUR / PUR
Wheel size front in mm   180 x 50
Load wheel size rear in mm   82 x 70
Number of wheels front/rear   2 / 4
Lifting height in mm 115
Load center in mm c 600
Height of steering handle in mm h14 1200
Height when lowered in mm  h¹³ 85
Total length in mm 1535
Fork length in mm  l 1190
Fork width in mm  e 175
Fork height in mm  s 45
Carrying fork width in mm  b¹ 560
Clear width in mm  b³ 210
Floor/ground clearance in mm 45
Aisle width for euro pallets in mm  Ast 1815
Turning radius in mm  Wa 1330
Weight in kg   149
* Polyurethane (PUR)
Pfaff SILVERLINE with Scales Dimensions Diagram
scale_hpt_s_op.pdf

Pfaff Silberblau HUW 20 S

Operating, safety and service instructions.
(approx. 0.9Mb)

Unfortunately this product has been discontinued and/or is no longer available. Please contact us for details on possible alternative products.
