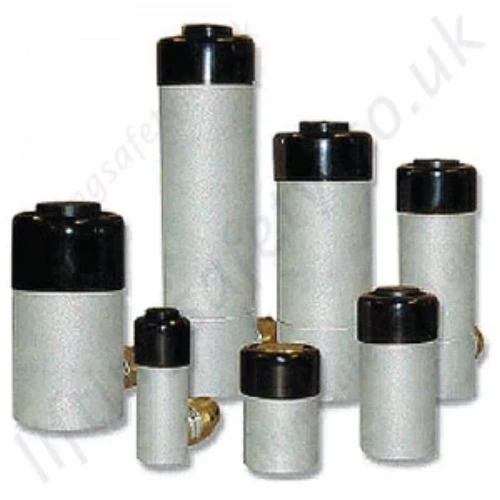

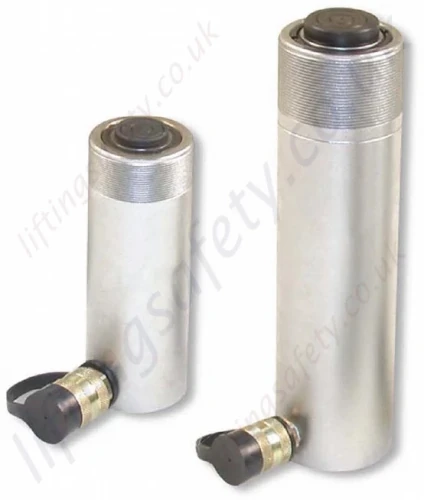

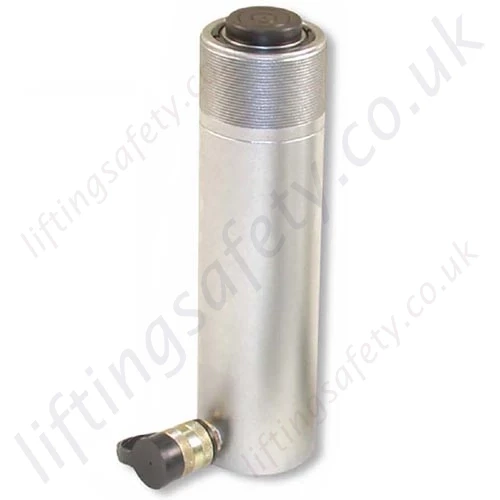

LiftingSafety "Tall" Hydraulic Lifting Cylinders - Range from 5000kg to 100,000kg (38 Options)

Model:  THC-1248

Complete Range of Tall Hyraulic Lifting Cylinders Dimensional Drawing 1 Dimensional Drawing 2
Part N° Capacity (Ton/KN) Area (cm3) Weight (kg) Guide Price Quantity
1248-T13774 5 / 49 7.1 0.9 Quote Required
1248-T13775 5 / 49 7.1 1.3 Quote Required
1248-T13776 5 / 49 7.1 1.7 Quote Required
1248-T13777 5 / 49 7.1 2.2 Quote Required
1248-T13778 5 / 49 7.1 2.5 Quote Required
1248-T13779 10 / 111 15.9 1.7 Quote Required
1248-T13780 10 / 111 15.9 2.2 Quote Required
1248-T13781 10 / 111 15.9 2.9 Quote Required
1248-T13782 10 / 111 15.9 4.4 Quote Required
1248-T13783 10 / 111 15.9 5.0 Quote Required
1248-T13784 10 / 111 15.9 6.0 Quote Required
1248-T13785 10 / 111 15.9 6.5 Quote Required
1248-T13786 10 / 111 15.9 7.1 Quote Required
1248-T13787 15 / 166 23.8 3.2 Quote Required
1248-T13788 15 / 166 23.8 3.6 Quote Required
1248-T13789 15 / 166 23.8 5.0 Quote Required
1248-T13790 15 / 166 23.8 6.7 Quote Required
1248-T13791 15 / 166 23.8 7.7 Quote Required
1248-T13792 15 / 166 23.8 8.1 Quote Required
1248-T13793 15 / 166 23.8 9.6 Quote Required
1248-T13794 15 / 166 23.8 11.1 Quote Required
1248-T13795 25 / 232 33.2 5.2 Quote Required
1248-T13796 25 / 232 33.2 6.2 Quote Required
1248-T13797 25 / 232 33.2 8.1 Quote Required
1248-T13798 25 / 232 33.2 10.2 Quote Required
1248-T13799 25 / 232 33.2 12.0 Quote Required
1248-T13800 25 / 232 33.2 13.8 Quote Required
1248-T13801 25 / 232 33.2 15.4 Quote Required
1248-T13802 25 / 232 33.2 17.3 Quote Required
1248-T13803 50 / 496 70.9 14.7 Quote Required
1248-T13804 50 / 496 70.9 18.0 Quote Required
1248-T13805 50 / 496 70.9 22.7 Quote Required
1248-T13806 50 / 496 70.9 36.3 Quote Required
1248-T13807 75 / 727 103.9 29.0 Quote Required
1248-T13808 75 / 727 103.9 59.3 Quote Required
1248-T13809 100 / 929 132.7 41.0 Quote Required
1248-T13810 100 / 929 132.7 51.0 Quote Required
Pricing Currency: Add To Quote Request   ?

Premium Hydraulic Cylinders.

Features

  • Capacity 5t to 100t - Stroke 25-362mm
  • Max working pressure: 10,000 PSI / 700 BAR
  • All rams are single acting with spring return
  • Pistons: Hard chromed
  • Rams inside: Repolished, machined from solid, non welded.
  • Rams outside: Blaster and chromed for a superior finish

Specifications and Dimensions

Model Capacity Area Weight A Height (mm) D E F G H J K L M N O P Q
(Tonne/KN) (cm3) (kg) Stroke (mm) Oil Capacity (cc) Closed (B) Open (C) (mm) (in) (mm) (in) (mm) (in) (mm)
1248-13774 5 / 49 7.1 0.9 27 19 116 143 30 25.4 38 6 19 1 1/2" - 16 25 UNF 3/4" - 16 16 29 14 1/4" - 20 25
1248-13775 1.3 77 56 166 243
1248-13776 1.7 127 90 219 348
1248-13777 2.2 181 128 270 451
1248-13778 2.5 232 165 321 553
1248-13779 10 / 111 15.9 1.7 25 40 90 115 45 38 57 3 19 2 1/4" - 14 35 UNC 1" - 8 7 27 12 1/9" - 18 40
1248-13780 2.2 55 88 137 192 6 17
1248-13781 2.9 105 167 187 292 17
1248-13782 4.4 155 247 237 392 22
1248-13783 5.0 206 328 288 494
1248-13784 6.0 257 409 339 596
1248-13785 6.5 305 485 387 692
1248-13786 7.1 356 566 438 794
1248-13787 15 / 166 23.8 3.2 25 59 124 149 55 48 70 10 26 2 3/4" - 16 38 UNC 1" - 8 7 30 13 3/4" - 16 48
1248-13788 3.6 51 121 149 200 22
1248-13789 5.0 101 240 200 301 22
1248-13790 6.7 152 361 272 424 25
1248-13791 7.7 203 482 322 525
1248-13792 8.1 254 603 373 627
1248-13793 9.6 305 725 424 729
1248-13794 11.1 356 846 475 831
1248-13795 25 / 232 33.2 5.2 25 83 140 165 65 60 85 10 22 3 5/16" - 12 50 UN 1 1/2" - 16 25 49 19 1/2" - 13 59
1248-13796 6.2 51 169 165 216
1248-13797 8.1 101 335 216 317
1248-13798 10.2 159 528 273 432
1248-13799 12.0 209 694 324 533
1248-13800 13.8 260 863 375 635
1248-13801 15.4 311 1032 426 737
1248-13802 17.3 362 1201 476 838
1248-13803 50 / 496 70.9 14.7 53 376 176 229 95 80 127 3 33 5" - 12 76 M6 2st 8 56 19 1/2" - 13 95
1248-13804 18.0 104 737 227 331
1248-13805 22.7 159 1127 282 441
1248-13806 36.3 337 2389 450 797
1248-13807 75 / 727 103.9 29.0 155 1610 282 437 115 100 146 5 29 5 3/4" - 12 77 M6 2st 8 44 - - -
1248-13808 59.3 333 3459 492 825
1248-13809 100 / 929 132.7 41.0 168 2230 359 527 130 100 175 5 41 6 2/3" - 12 77 M6 2st 8 54 24 3/4" - 10 140
1248-13900 51.0 260 3451 450 710

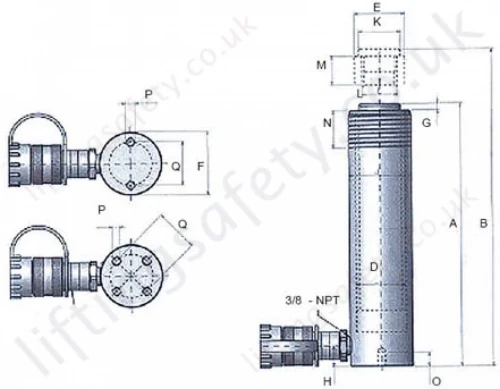

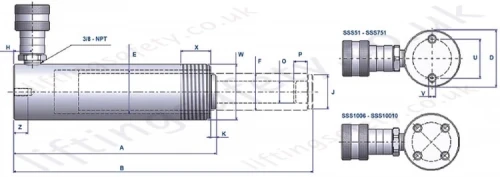

Premium Hydraulic Cylinder - Dimensions
