Donati CBB Articulating Manipulator Jib - 125kg

360° Manual Slew Free Standing Articulating Jib Crane to Suit Manipulators.

Model:

Donati CBB / AMJ-981


Description

+

The manually rotated jib cranes with an articulated arm in the CBB "column" series and the MBB "wall" series, are designed for the handling of goods inside the plant where the presence of fixed obstacles would impede the free rotation in terms of the mobility of the arm when it is formed by one rigid element.

The cranes with an articulated jib are fitted with an arm made of two hinged pantograph-shaped segments which allow it to avoid fixed obstacles during rotation. The two semi-arms can be of different lengths and are able to rotate independently of each other.

The standard models are available for lifting capacity 125kg and jibs from 2 m to 7 m and maximum rotation field of 360. The manually jib cranes are provided with a clutch braking device for the arm which allows the control of the rotation stress.

Donati CBB Articulating Manipulator Jib

Dimensions

CBB Articulating Manipulator Jib Dimensional Drawing
Type Lifting Capacity (kg) Size of Crane H (mm) H1 (mm) H2 (mm) H3 (mm) S (mm) S1 (mm) S2 (mm) G (mm)  Δ (mm) Weight – Crane (kg) Weight – Column by m (kg)
 A30A3L 125  A 3020 2603 2777 2967 3000 1000 2000 220 20 171 18
 A30A3M  125  A 3020 2603 2777 2967 3000 1500 1500 220 20 193 18
 A30A3N  125  A 3020 2603 2777 2967 3000 2000 1000 220 20 215 18
Oversized Baseplate or Counterplate

+

Oversized Base Plate/CounterPlate (Bolting To Existing Floor)

This is designed to spread the load when bolted to a suitable existing concrete floor. Refer below for manufacturers minimum recommended floor thickness.

Counter Plate Type   R S T U V Z

Counterplate Dimensions (mm)

 C 400 450 500 600 800 950
S 20 25 25 30 35 45
X 330 195 220 180 182 220
Y / Y1  - - - - - 240 / 248
Nr x Dia. 4 x 15 8 x 15 8 x 19 12 x 19 16 x 25 28 x 25

Counterplate Weight (kg)   20 31 39 63 139 254
Maximum tilting movement allowed (kNm)   11,8 20,7 31,2 56,7 107,3 164
Type of concrete of the floor: Class Rck minimum (kg/cm2)   C250 C250 C250 C250 C250 C250
Minimum thickness of floor block (mm)   140 170 170 220 220 220
Diameter of hole in the floor (mm)   14 14 18 18 24 24
Depth of the hole of the concrete in the floor (mm)   110 110 125 125 170 170
Clamping torques of the bolts (Nm)   40 40 80 80 150 150
Project resistance of traction of one bolt (kN)   25,3 25,3 40 40 74,6 74,6

The fixing of the column using chemical bolts, needs a scrupulous check of suitability in relation to the type of support flooring.

The suitability checks are the responsibility of the user and must be carried out by expert, qualified technicians who will evaluate the feasibility and formally undertake the relative responsibilities.

Counterplates R
Counterplates S T
Counterplates U
Counterplates V
Counterplates Z
Base Plate

+

Base Plate Specifications

Note: The foundation frame with logbolts, used in the column-mounted version for fixing the column itself to the foundation plinth is supplied on request.

Size of Jib Crane R S T U V Z
Base Plate and Foundation Frame (mm)
C
 205 258 296 372 435 515
P 275 340 380 475 555 660
S1 15 15 15 20 20 25
S2 8 8 8 8 8 8
X 247 305 345 432 506 599
Y
 103 126 143 179 210 248
Ø 268 330 373 468 548 648
R 88 104 116 145 165 197
Ø1 16 20 20 25 29 35
Ø2 13 17 17 21 25 31
Anchorage Bolts
ØT M12 M16 M16 M20 M24 M30
LT 400 450 450 550 600 700
ST 40 45 45 55 60 75
Clamping Couples (Nm) 45 105 105 200 350 680
Frame/Bolts Weight (kg) 5 10 11 17 26 47
Foundation
Foundation Plinth (mm) (L) 1200 1300 1400 1700 2000 2400
Foundation Plinth (H) 800 800 900 900 1100 1100
Reaction (kN) Q1 3.3 5.7 10.15 18.4 28.7 29.35
Momentum (kNm) MF 10 16 30 56 107 163

Base Plate 3
Base Plate 2

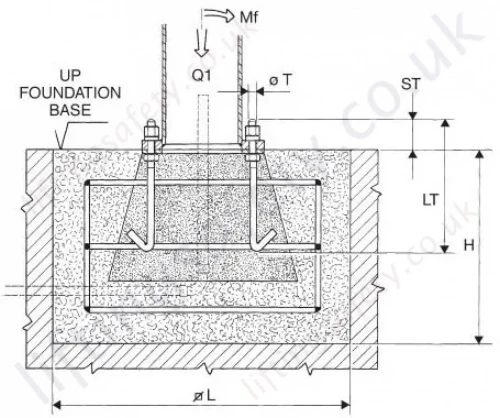

Base Plate 1


The manually rotated jib cranes with an articulated arm in the CBB "column" series and the MBB "wall" series, are designed for the handling of goods inside the plant where the presence of fixed obstacles would impede the free rotation in terms of the mobility of the arm when it is formed by one rigid element.

The cranes with an articulated jib are fitted with an arm made of two hinged pantograph-shaped segments which allow it to avoid fixed obstacles during rotation. The two semi-arms can be of different lengths and are able to rotate independently of each other.

The standard models are available for lifting capacity 125kg and jibs from 2 m to 7 m and maximum rotation field of 360. The manually jib cranes are provided with a clutch braking device for the arm which allows the control of the rotation stress.

Donati CBB Articulating Manipulator Jib

Dimensions

CBB Articulating Manipulator Jib Dimensional Drawing
Type Lifting Capacity (kg) Size of Crane H (mm) H1 (mm) H2 (mm) H3 (mm) S (mm) S1 (mm) S2 (mm) G (mm)  Δ (mm) Weight – Crane (kg) Weight – Column by m (kg)
 A30A3L 125  A 3020 2603 2777 2967 3000 1000 2000 220 20 171 18
 A30A3M  125  A 3020 2603 2777 2967 3000 1500 1500 220 20 193 18
 A30A3N  125  A 3020 2603 2777 2967 3000 2000 1000 220 20 215 18

Oversized Base Plate/CounterPlate (Bolting To Existing Floor)

This is designed to spread the load when bolted to a suitable existing concrete floor. Refer below for manufacturers minimum recommended floor thickness.

Counter Plate Type   R S T U V Z

Counterplate Dimensions (mm)

 C 400 450 500 600 800 950
S 20 25 25 30 35 45
X 330 195 220 180 182 220
Y / Y1  - - - - - 240 / 248
Nr x Dia. 4 x 15 8 x 15 8 x 19 12 x 19 16 x 25 28 x 25

Counterplate Weight (kg)   20 31 39 63 139 254
Maximum tilting movement allowed (kNm)   11,8 20,7 31,2 56,7 107,3 164
Type of concrete of the floor: Class Rck minimum (kg/cm2)   C250 C250 C250 C250 C250 C250
Minimum thickness of floor block (mm)   140 170 170 220 220 220
Diameter of hole in the floor (mm)   14 14 18 18 24 24
Depth of the hole of the concrete in the floor (mm)   110 110 125 125 170 170
Clamping torques of the bolts (Nm)   40 40 80 80 150 150
Project resistance of traction of one bolt (kN)   25,3 25,3 40 40 74,6 74,6

The fixing of the column using chemical bolts, needs a scrupulous check of suitability in relation to the type of support flooring.

The suitability checks are the responsibility of the user and must be carried out by expert, qualified technicians who will evaluate the feasibility and formally undertake the relative responsibilities.

Counterplates R
Counterplates S T
Counterplates U
Counterplates V
Counterplates Z

Base Plate Specifications

Note: The foundation frame with logbolts, used in the column-mounted version for fixing the column itself to the foundation plinth is supplied on request.

Size of Jib Crane R S T U V Z
Base Plate and Foundation Frame (mm)
C
 205 258 296 372 435 515
P 275 340 380 475 555 660
S1 15 15 15 20 20 25
S2 8 8 8 8 8 8
X 247 305 345 432 506 599
Y
 103 126 143 179 210 248
Ø 268 330 373 468 548 648
R 88 104 116 145 165 197
Ø1 16 20 20 25 29 35
Ø2 13 17 17 21 25 31
Anchorage Bolts
ØT M12 M16 M16 M20 M24 M30
LT 400 450 450 550 600 700
ST 40 45 45 55 60 75
Clamping Couples (Nm) 45 105 105 200 350 680
Frame/Bolts Weight (kg) 5 10 11 17 26 47
Foundation
Foundation Plinth (mm) (L) 1200 1300 1400 1700 2000 2400
Foundation Plinth (H) 800 800 900 900 1100 1100
Reaction (kN) Q1 3.3 5.7 10.15 18.4 28.7 29.35
Momentum (kNm) MF 10 16 30 56 107 163

Base Plate 3
Base Plate 2

Base Plate 1


Pricing

Unfortunately this product has been discontinued and/or is no longer available. Please contact us for details on possible alternative products.
