Sala (UCL) Davit System Configuration of Height and Reach

All davits must be supplied with one top section Jib Arm and up to 2 extension posts (bottom of page) in any configuration up to a maximum of height of 133" (3378mm)
Sala offer Standard reach and long reach on the horizontal Jib Arm.

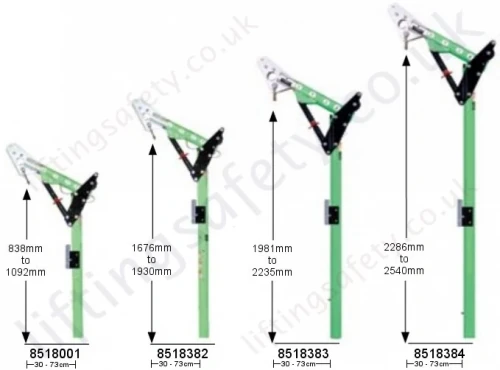

Standard Reach Davit Top With Fixed Pole

Can be used directly with any socket / base except 8518001 with must be used with at least extension pole.


Standard Pole

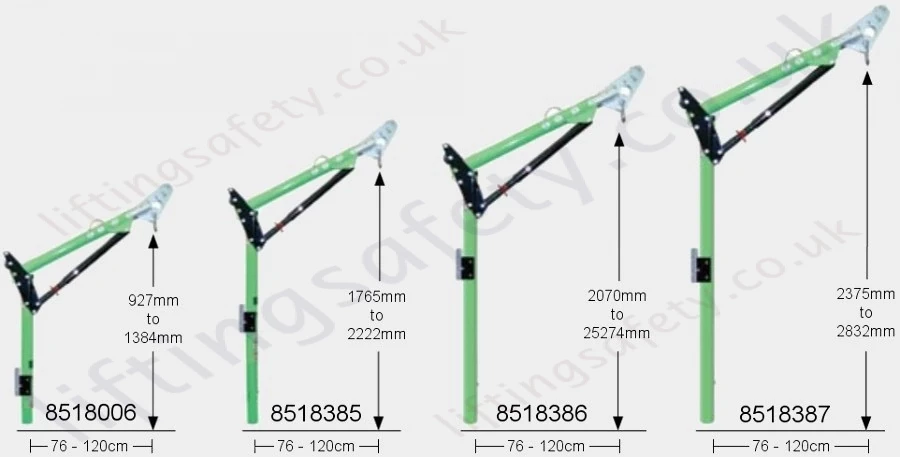

Long Reach Davit Top With Fixed Pole

Can be used directly with any socket / base except 8518006 with must be used with at least extension pole.



Standard Pole

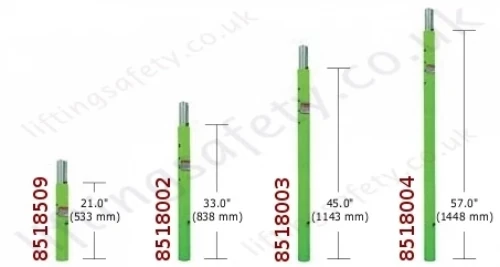

Extension Poles

There are four different lengths of extension pole that are used to increase the working height of the davit system. Any two can be used with any davit top (Jib arm) though can only be used up to a max system height of 133" (3378mm)

* Custom lengths are available. Please use or quotation facility.

Extension masts



*Please note that the maximum height of the anchorage point on the davit system cannot exceed 3378mm (133").




Last updated: 21-07-2012 16:16:57
