Yale LH Extra Low Headroom Chain Hoist (Gear and Push Travel) - Range from 500kg to 10,000kg

Model:  Yale Lift LHP/G / ELHH-1118

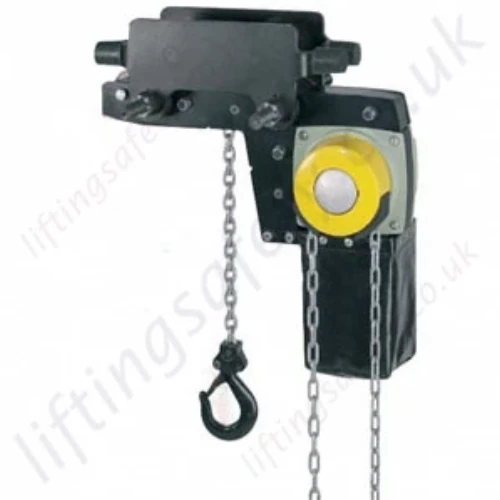

Yale Lift LHP / LHG Trolley Hoist

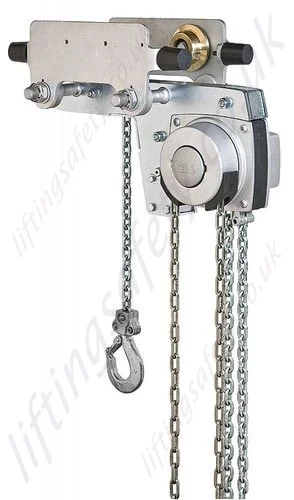

Corrosion Resistant Version

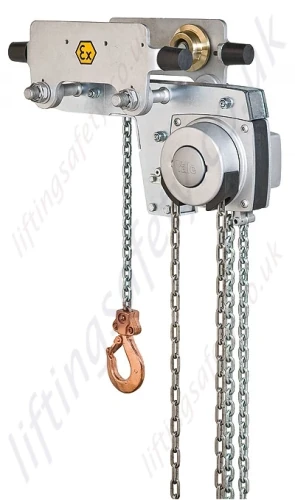

Spark Resistant Version
Yale LHP or LHG Low Headroom Push or Gear Travel Trolley Yale Corrosion Resistant Low Headroom Push or Geared Travel Trolley Yale Spark Resistant Low Headroom Push or Geared Travel Trolley
Safe Working Load
To Suit Beam Range
Type A (60-180mm) Type B (180-300mm)
Trolley Type
Push Travel Geared Travel
Height of Lift (m)
@ £21.00 (min:3) (3 included in price)
Quantity


Unit Price £ 1233.00
Part N°: 1118-189776   Add to Quote Request

Ultra Low Headroom Chain Hoist with Push or Geared Trolley. Corrosion and Spark resistant options available.

Extra Low Headroom Chain Hoist

The hand chain hoist model Yalelift LH with integrated low headroom manual trolley is the latest development of the Yalelift IT. When little headroom is available, the Yalelift LH is the ideal choice. All units of this series upto a capacity of 3000kg are provided with a single chain fall and the minimum headroom has been further reduced. Ideal for applications with low ceiling and limited headroom. The manual trolleys are adjustable to fit a wide range of beam profiles (e.g. INP, IPE, IPB). Depending on the beam flange width, an adjustment up to 300mm can be made easily.

Premium Trolley Hoist Combination - Yale Lift LHP / LHG

The combination of the Yale low headroom hand chain hoist with integrated push trolley or geared trolley.

  • Capacities Available: 500kg, 1 tonne, 2 tonnes, 3 tonnes and 5 tonnes.
  • Available with: Geared trolley or push trolley and standard finish or corrosion resistant finish.
  • 3 metre lift height supplied as standard.

More Information:

The combination of the Yalelift 360 with a low headroom manual trolley provides even more flexibility in the application of the Yalelift 360. The trolley wheels are designed for a maximum beam profile incline of 14% (DIN 1025 - part 1), excellent rolling features are guaranteed by pre-lubricated, encapsulated ball bearings. The specially developed chain reeving system and chain guide allow the bottom block to be pulled laterally to the hoist further up and almost against the beam flange.

Features

  • Anti-tilt and anti-drop devices are standard.
  • A subsequent conversion of a Yalelift 360 into a Yalelift IT with integrated trolley is easily possible at any time.
  • All models have their own chain guide to prevent chain tangling.
  • Excellent rolling features due to machined steel wheels mounted on pre-lubricated, encapsulated ball bearings.
  • All models of the LH series up to 3000kg SWL are supplied with a single chain fall.
  • The proven and almost stepless adjustment systems allows quick and easy assembly of the trolley.

Corrosion resistance CR - Added lifetime

All models of the Yalelift Vario programme, including the Towerlift ES can be supplied with corrosion resistant features which include zinc-plated load chains and stainless steel hand chain as standard.

Corrosion protection

Corrosion starts on the surface of components due to reaction of environmental influences. This affects the mechanical properties of the components, e.g. breaking strength and total ultimate elongation. Many components are supplied in black (unmachined), bright (machined) or painted condition. This offers certain protection but after only a short period of time corrosion can begin. With the application of a protective coating, the development of corrosion can be reduced and delayed, thus extending the service life of the treated components.

Applications for corrosion resistant units and zinc-plated resp. stainless steel load chains

Completely corrosion resistant units with either zinc-plated or stainless steel load chains should be used in all conditions with increased requirements towards corrosion protection. Typical applications are in food processing (e.g. dairy, abattoir, etc.), chemical industries (e.g. paper, dye industries), farming and sewage treatment. Illustrated rubber buffers optionally available.

Spark Resistant VersionSpark resistant features: Added safety

All models of the Yalelift Vario programme can be provided with the following optional features for additional protection against sparking:

  • Load and hand chains from stainless steel.
  • Units completely corrosion resistant.
  • Bronze-plated suspension and load hooks.
  • Solid bronze trolley wheels.
  • Rubber buffers.
  • Chain containers.

Overload protection: Added control

The overload protection device of the Yalelift Vario programme reliably prevents excessive load take-up of the hoist during operation. When reaching the pre-set overload value, the unit will jam and stop operation in the lifting direction. Lowering of the load is still possible at any time. The overload protection device provides additional safety with regard to possible false estimation of the load weight and thus increases the lifetime of the hoist. The new design principle allows excellent adjustability and response.

Beam locking device

Added security Yale trolleys can be optionally provided with beam locking device to secure the unloaded trolley in fixed position on the beam (park position e.g. on ships).

Chain container: Added comfort

The chain containers for the Yalelift Vario programme consist of a robust, powder-coated steel frame with a flexible chain bag made from high tensile Cordura textile fabric. Available in different sizes. Special sizes on request. Spark resistance In nearly all industrial areas, and not only in the chemical industry, plants are operated in explosion endangered environments. Because of the great damage an explosion could cause to people and material, stringent legal and technical requirements are imposed, particularly on electrical equipment used in explosion endangered environments.

Applications

Paint factories, paint shops, foundries, on-/ offshore, refineries, oil depots, electro-plating, automobile factories, on ships and docks, printers, textile and paper factories, food industries, glass and ceramic industries, wood working industries and hardening shops, etc.


LiftingSafety Review:
This is a good quality very low headroom hand chain block that is supplied with either manual or geared travel trolley. Low headroom is sometime referred to as Close Headroom and basically means that the load hook raises very high / close to the underside of the runway lifting beam. More expensive than a standard trolley hoist combination though if you are short of headroom this is a very good value for money hoist compared to other products available. This YaleLift Hoist is made to order and supplied in capacities up to 6000kg with many special options such as stainless load chain and designed suitable for ATEX sparkproof environments

Dimensions

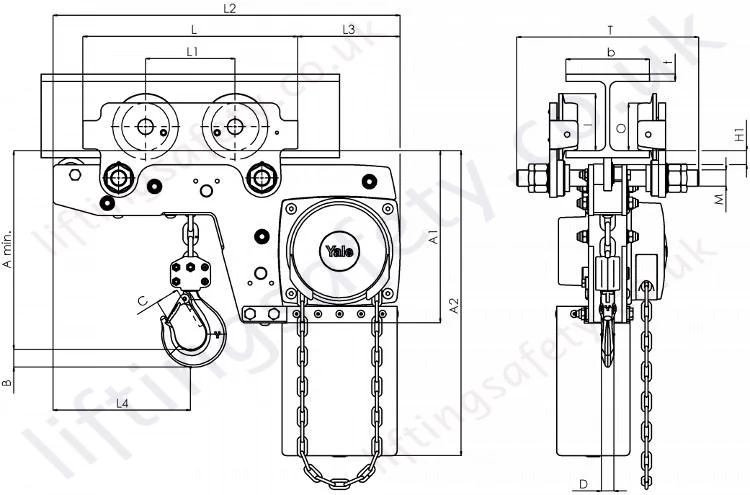

Yale Lift LHP Dimensions

Dimension Yalelift-LHP/G-500kg Yalelift-LHP/G-1000kg Yalelift-LHP/G-2000kg Yalelift-LHP/G-3000kg Yalelift-LHP/G-5000kg
A(min) 188 211 264 316 425
A1 223 250 289 346 345
A2 381 427 511 614 612
B 17 22 30 38 45
C 24 29 35 40 47
D 14 19 22 30 37
F(GEARED) 92 92 91 107 150
H1 24 24 24 32 31
I(PUSHED) 72 72 96 131 143
I(GEARED) 77 77 98 133 149
L 270 310 360 445 525
L1 130 130 150 180 209
L2 444 488 582 690 720
L3 124 135 172 203 175
L4 184 201 230 265 283
M M18 M22 M27 M30 M42
O 60 60 80 112 125
P(GEARED) 108 110 112 112 117
T(RANGE A) 280 290 305 320 364
T(RANGE B) 400 410 425 440 484


LiftingSafety Review:
This is a good quality very low headroom hand chain block that is supplied with either manual or geared travel trolley. Low headroom is sometime referred to as Close Headroom and basically means that the load hook raises very high / close to the underside of the runway lifting beam. More expensive than a standard trolley hoist combination though if you are short of headroom this is a very good value for money hoist compared to other products available. This YaleLift Hoist is made to order and supplied in capacities up to 6000kg with many special options such as stainless load chain and designed suitable for ATEX sparkproof environments
Pages from Hand Chain Hoists.pdf

Yalelift LH Product Details

Further Product details.
(approx. 0.3Mb)
Yalelift LHP_G_Operating Manual .pdf

Yale LHP Operating Manual

Operating and service manual.
(approx. 0.8Mb)
yale_hand_chain_hoists.pdf

Yale Hand Chain Hoists.

Technical Specifications.
(approx. 1.3Mb)
