LiftingSafety Electric, Hydraulic or Petrol Windmill Capstan Winch - Range from 454kg to 1361kg Capacities

Wind Generator / Wind Turbine Capstan lifting Winch with either Electric, Hydraulic or Petrol Drive.

HUB Series 90 Capstan Hoists

454kg and 1361kg - 12V, 115V, 230V, Hydraulic or Petrol.

Please Note: Product currently not CE marked and cannot be sold into the European Union though are fully compliant with USA standards!

Improved design features a multiple-planetary drive/backstop-clutch assembled on the center shaft of a steel gear case with full-length internal teeth.

This design handles more rugged jobs, extends service life and reduces maintenance.

Lightweight yet powerful, these portable hoists move many heavyweight tasks and can get into remote or difficult-access sites.

Examples: Setting utility poles, pulling wheeled equipment over obstacles, raising transformers (even over fences in back lots), hoisting heavy insulators, stringing and tensioning conductors, pulling cable (indoors and underground).

Operator effort remains low for typical loads simply by adding wraps on the capstan drum.

So little effort is required, any crew member can run the hoist. Control is so accurate, loads can be moved fractions of an inch.

Technical Information

Part Numbers	Product	Style	Load Rating	Power Source	Rope Speed at Rated Load	Source, Minimum	Weight / Ea.
2632-19854	Hoist Kit	Standard Kit	1000 lbs. (454 kg)	115v AC Electric Motor	40' (12m) /min	14 amps	59 lb (26.76kg)
2632-19855	Hoist Only	With Bayonet	3000 lbs. (1361 kg)	Hydraulic	30' (9m) /min	8 gal/min (30 litres) & 1000 psi (6.8 Mpa)	35.28 lb (14.64kg)
2632-19856	Hoist Only	Std Drum	1000 lbs. (454 kg)	115v AC Electric Motor	40' (12m) /min	14 amps	48.02 lb (21.78kg)
2632-19857	Hoist Only	Std Drum	1000 lbs. (454 kg)	230v AC Electric Motor	21' (6.4m) /min	7 amps	48.51 lb (22kg)
2632-19858	Hoist Only	Std Drum	1000 lbs. (454 kg)	12v DC Electric Motor	22' (6.7m) /min	90 amps	55.37 lb (25.16kg)
2632-19859	Hoist Only	Std Drum	1000 lbs. (454 kg)	Hydraulic	93' (28.4m) /min	8 gal/min (30 litres) & 1000 psi (6.8 Mpa)	27.93 lb (12.67kg)
2632-19860	Hoist Only	Std Drum	1000 lbs. (454 kg)	Petrol Motor	40' (12m) /min	Engine Speed 8,000 rpm	45.08 lb (20.45kg)
2632-19861	Hoist Only	Std Drum	3000 lbs. (1361 kg)	115v AC Electric Motor	12' (3.7m) /min	14 amps	56.84 lb (25.78kg)
2632-19862	Hoist Only	Std Drum	3000 lbs. (1361 kg)	Hydraulic	30' (9m) /min	8 gal/min (30 litres) & 1000 psi (6.8 Mpa)	43.12 lb (19.56kg)
2632-19863	Hoist Only	Std Drum	3000 lbs. (1361 kg)	Petrol Motor	11' (3.4m) /min	Engine Speed 8,000 rpm	56.84 lb (25.78kg)
2632-19864	Hoist Only	Std Drum	4000 lbs. (1814 kg)	115v AC Electric Motor	12' (3.7m) /min	14 amps	53.9 lb (24.45kg)

Optional Rope Lock At left: Automatically supports load when fall line is released, until operator resumes hoisting. At right: The release lanyard permits lowering or lifting load with precise control over speed and distance.

For improved load control, steel capstan drum features nickel-plated rope surface, larger radius at load-line wrap and rope hook/handle. Position fall line so it will not pullover end of drum. If rope comes off end of drum and hook catches it, stop hoist, secure load and correct rope position on drum.

Versatile to various applications

Lightweight yet powerful, these portable hoists move many heavyweight tasks and can get into remote or difficult-access sites. Examples: Setting utility poles, pulling wheeled equipment over obstacles, raising transformers (even over fences in back lots), hoisting heavy insulators, stringing and tensioning conductors, pulling cable (indoors and underground), cell tower erection.

Simple technique eases all loads

Graph at right and diagram below show capstan principle in action. Operator effort remains low for typical loads simply by adding wraps on the capstan drum. So little effort is required, any crew member can run the hoist. Control is so accurate, loads can be moved fractions of an inch.
Note: Always use at least as many wraps of rope on the drum to lower a load as required to lift that load.

Example: 4 wraps of rope = 1:44 ratio.
That is, 1 kg. pull on Fall Line develops 44 kg. on Load Line.
Therefore, 10kg. of pull develops 440kg. of lift.

Motor Options

Electric Drive
Features: Available in 12v, 115v or 230v Includes Power Hoist and Foot Control Switch Only. Catalogue Number: HUBC3081370 Weight (each): 26kg (58lb)	More Information: Four 1⁄2" mounting bolts furnished with each unit. Mounting flange provides eight 1⁄2" tapped holes on 55⁄8" bolt circle. Recommended rope for use with capstan hoists are Poly-Dacron or Composite Fiber Braided (consists of polyester fibers)

Hydraulic Drive Standard Hydraulic Drive Includes Power Hoist only Catalogue Number: HUBC3081380 Weight (each): 20kg (44lb)	Hydraulic Drive - With Bayonet With Bayonet for Collapsible Reel by others or Removable Capstan Drum. Includes Power Hoist only. Catalogue Number: HUBC3080900 Weight (each): 16.4kg (36lb)
Hydraulic Drive - Reversable with Bayonet Reversible with Bayonet for Collapsible Reel by others or Removable Capstan Drum. Ordered separately. Includes Power Hoist and Bolt-Down Bracket. Catalogue Number: HUBC3080940 Weight (each): 27.2kg (60lb)	Petrol Drive The Petrol unit features 35 cubic-centimeter 4-cycle engine. includes Power Hoist and Foot Throttle Control only. Catalog Number: HUBC3081390 Weight (each) 26.3kg (58lb)

Operating speed at full rating

For continuous direct lift or pull at maximum rating (3,000 lb. / 1361kg) with a 20% duty cycle, table above gives for each powerdrive
type:

1. Rate of lift or pull (Rope Speed)
2. Power output needed (Source, minimum).

Recommended rope for capstan hoists

Poly-Dacron or Composite Fiber Braided (consists of polyester fibers).

Swivel-Base Mount

• For 12V, 115V & Hydraulic 1,000-lb. HUB Series 90 Capstan Hoists
• Sets at angles needed for variety of jobs.
• Turntable design permits proper alignment without repositioning.
• Heavy-gauge steel base bolts direct to wherever convenient.
• Bracket can be pinned at every 15° interval around circular base for stringing, tensioning, sagging conductors; pulling in cable; hoisting equipment; setting poles; pulling vehicles.

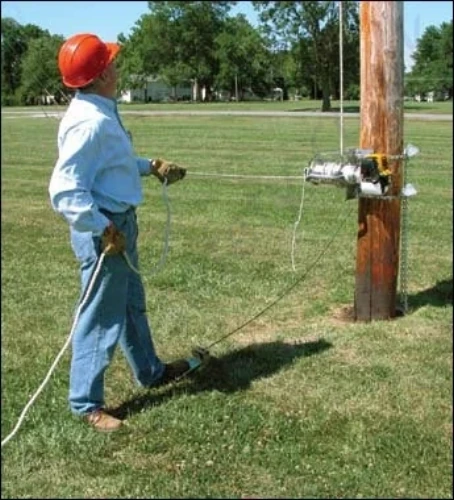

Capstan Hoist	Close Up Usage Example	Hydraulic	Hydraulic with Bayonet	Hydraulic with Bayonet and Bolt Down Bracket	Petrol Drive

Capacity 1000 lbs. 3000 lbs.

Part N°	Component Type	Weight (kg)	Component Information	Guide Price	Quantity
2632-T5977 C3081172	12v DC Electric Drive	25.7	22ft per minute lift with 1000 lb. load. Includes power hoist with 25ft #2 Cu Cable, four terminals, relay and foot switch. 90 amperes minimum motor current.	£  3906.45
2632-T5978 C3081170	115v AC Electric Drive	22.2	40ft per minute lift with 1000 lb. load. Includes power hoist and foot control switch only. 14 amperes minimum motor current.	£  2552.61
2632-T5979 C3081171	230v AC Electric Drive	22.5	21ft per minute lift with 1000 lb. load. Includes power hoist and foot control only. 7 amperes minimum motor current.	£  3190.36
2632-T5980 C3081180	Hydraulic Drive	12.9	93ft per minute lift with 1000 lb. load. Includes power hoist only. 8 gal/min and 1000psi minimum power source.	£  2616.87
2632-T5981 C3081190	Petrol Drive	20.9	40ft per minute lift with 1000 lb. load. Includes power hoist and foot throttle only. 7000rpm engine speed minimum.	£  2791.69
2632-T5982 C3081335	All-Purpose Bracket	12	Includes 2 Chain Clamps for poles, angles, beams Recommend Universal Bracket below for petrol hoist	£  581.15
2632-T5983 E3081321P	Bolt-Down Bracket	4.09	Same as above, except does not include Chain Clamps	£  223.50
2632-T5984 E3081327P	Capstan Drum	3.18	Replacement, does not include mounting bolt or washer	£  364.20
2632-T5985 C3080925	Universal Bracket	5.9	Recommended for Gasoline 1,000-lb. hoist. Also fits other 1,000-lb. Series 90 and earlier 750-lb. Chance hoists. Bolts down or uses two C4170346 Chain Clamps below for mounting on poles, angles, beams.	£  284.71
2632-T5986 C4170346	Chain Clamp	3.2	For Universal Bracket only. Sold seperately; two required for Universal Bracket	£  229.56
2632-T5987 E3081334P	Chain Clamp	2.7	For All-Purpose or Bolt-Down Brackets. Sold seperately.	£  184.58
2632-T5988 C3080856	Rope Lock Device	0.9	Includes mounting bolts and washers	£  190.59
2632-T5989 C4176145	Foot Controls	1.59	For 12-Volt DC drive	£  271.94
2632-T5990 C4170337	Foot Controls	1.81	For 115- and 230-Volt AC drive	£  255.26
2632-T5991 C3080685	Foot Controls	10.9	For Hydraulic drive	£  1381.39
2632-T5992 C3080903	Swivel Bracket only	8.1	Only 12V, 115V and Hydraulic 1,000-lb.-rated hoists are recommended for truck mounting.	£  407.74
2632-T5993 C3080890	C-Bracket only	2.25	Complete with mounting bolts	£  163.85
2632-T5994 T3081506	Swivel Base Truck Mount	10.35	Assembled Swivel Bracket and C-Bracket	£  599.48
2632-T5995 C3080909	Weather Shield	0.45	For 12-Volt DC hoist only, complete with band clamp.	£  195.90
2632-T5996 T3080999	Hitch Mount for Capstan Hoist	9.56	Hitch-Receiver Mount for Swivel-Base Mount for 12V, 115V & Hydraulic 1,000-lb. Series 90 Capstan Hoists	£  302.25
2632-T5997 C3160760	Material Handler chassis only	17.2	Other components must be ordered seperately; Universal bracket, 2 x chain clamps, rope and take-up reel with handle.	£  6042.76
