Camlok CX Heavy Duty Hinged Clamp - Range from 1500kg to 10,000kg

Model:  Camlok CX / VPLC-339

Camlok CX Heavy Duty Hinged Plate Lifting Clamp - 1500kg to 10,000kg
Safe Working Load
Plate Thickness (mm)
Quantity


Unit Price £ 283.00
Part N°: 339-117240   Add to Quote Request

Camlok Heavy Duty Hinged Vertical Plate Lifting Clamp.

Features

  • 1500kg to 10,000kg options available.
  • Used for all structural steel plates upto 300 Brinell / 32 Rockwell C.
  • Handling of plates at any angle.
  • Lifts single plate from the horizontal to the vertical and vice versa.
  • Vertically racked plates can be turned over.
  • Can be used on edge and side loads.
  • Can be lifted with a reduction in the W.L.L.

Clamp Information

The Camlok Series CX range of clamps has been developed especially for the handling of plate at any angle, thus permitting the lifting and handling of awkward shaped plate and fabrications. Single plates can be lifted from the horizontal to the vertical position and vice versa.

Vertically racked plates can be turned over due to the in-built lifting eye and link. Standard CX clamps are fitted with a cam operated closing mechanism that can if preferred be replaced with a chain pull open /close mechanism. Clamps are fitted with hardened serrated teeth, jaws and pads that are suitable for gripping steel plate up to a hardness of 300 Brinell.

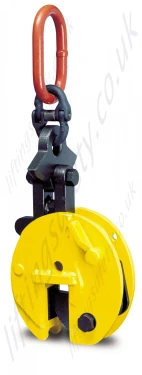

Camlok CX Plate Clamp

Side lifting
Side lifting

Applications

The Camlok CX series of plate lifting clamps can be used for all structural steel plates up to a surface hardness of 300 Brinell. It has been designed especially for the handling of plate at any angle, thus permitting the lifting and handling of awkward shaped plate and fabrications. Single plates can be lifted from the horizontal to the vertical position and vice versa. Vertically racked plates can be turned over due to the in-built lifting eye and link.


2 clamps and a sling

2 clamps and a sling


Series CX Chainlock

Series CX Chainlock

Options

The standard CX clamps are fitted with a cam operated closing mechanism that can, if preferred, be replaced with a chain pull open /close mechanism. They can be supplied with narrow or large throat capacity and with a swivel or an insulated swivel system, which allows welding to be undertaken whilst the material is still attached to the crane.

Cam-Lock

Cam-Lock

Technical Specifications

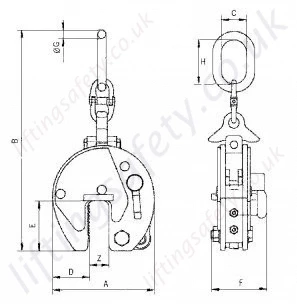

MODEL WLL kg (Per Clamp) Plate mm Z Weight kg (Per Clamp) A B C D E F G H
CX1500 220-1500 0 - 20 7 140 399 63 48 70 83 12,5 63
CX3000 450-3000 0 - 32 12 197 515 67 68 93 110 19 67
CX3000L 450-3000 30 - 60 15 227 515 67 68 93 110 19 67
CX4500 650-4500 0 - 50 32 292 737 95 95 143 188 28 95
CX6000 1200-6000 0 - 50 38 292 737 95 95 143 188 28 95
CX6000L 1200-6000 50 - 100 48 342 785 98 115 143 188 28 98
CX8000 1600-8000 0 - 50 39 292 737 98 95 143 210 28 98
CX8000L 1600-8000 50 - 100 51 342 785 98 115 143 210 28 98
CX10000 2000-10,000 0 - 50 61 360 903 110 125 162 223 33 110
CX10000L 2000-10,000 50 - 100 76 410 921 112 168 162 223 33 112
Camlok CX Series
