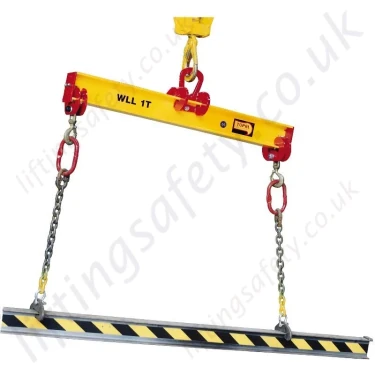

Tractel TOPAL PBF Fixed Single Lifting Beams - Range from 1000kg to 6000kg
Model: Tractel TOPAL PBF / TTP-3331
Pal-Beam Upper Hooking By Central Ring.
PBF and PEF standard fixed single beam spreader* or PBM and PEM adjustable single beam spreader, for suspension from above via a central ring, fitted with two separate compensating beams for new lifting possibilities with tilting of the beam and/or the compensating beams.
- Lifting with compensating beams providing symmetrical or asymmetrical traction, slanting inwards or outwards (max. angle 15°).
- Lifting with the beam tilted at 6° from horizontal: - Vertical traction with symmetrical compensating beams. - Slanting traction with asymmetrical compensating beams.
Specifications
| Capacity (kg) | L useful length (mm) min / max | Model |
| 1000 | 1000 | PBFA1-A |
| 1001/ 1500 | PBFA1-B | |
| 1501 / 1999 | PBFA1-C | |
| 2000 | PBFA1-D | |
| 2001 / 2500 | PBFA1-E | |
| 2501 / 2999 | PBFA1-F | |
| 3000 | PBFA1-G | |
| 3001 / 3500 | PBFB1-H | |
| 3501 / 3999 | PBFB1-I | |
| 4000 | PBFB1-J | |
| 2000 | 1000 | PBFA2-A |
| 1001/ 1500 | PBFB2-B | |
| 1501 / 1999 | PBFB2-C | |
| 2000 | PBFB2-D | |
| 2001 / 2500 | PBFB2-E | |
| 2501 / 2999 | PBFB2-F | |
| 3000 | PBFB2-G | |
| 3001 / 3500 | PBFC2-H | |
| 3501 / 3999 | PBFC2-I | |
| 4000 | PBFC2-J | |
| 3000 | 1000 | PBFB3-A |
| 1001/ 1500 | PBFB3-B | |
| 1501 / 1999 | PBFB3-C | |
| 2000 | PBFB3-D | |
| 2001 / 2500 | PBFC3-E | |
| 2501 / 2999 | PBFC3-F | |
| 3000 | PBFC3-G | |
| 3001 / 3500 | PBFD3-H | |
| 3501 / 3999 | PBFD3-I | |
| 4000 | PBFD3-J | |
| 4000 | 1000 | PBFC4-A |
| 1001/ 1500 | PBFC4-B | |
| 1501 / 1999 | PBFC4-C | |
| 2000 | PBFC4-D | |
| 2001 / 2500 | PBFD4-E | |
| 2501 / 2999 | PBFD4-F | |
| 3000 | PBFD4-G | |
| 3001 / 3500 | PBFE4-H | |
| 3501 / 3999 | PBFE4-I | |
| 4000 | PBFE4-J | |
| 5000 | 1000 | PBFD5-A |
| 1001/ 1500 | PBFD5-B | |
| 1501 / 1999 | PBFD5-C | |
| 2000 | PBFD5-D | |
| 2001 / 2500 | PBFE5-E | |
| 2501 / 2999 | PBFE5-F | |
| 3000 | PBFE5-G | |
| 3001 / 3500 | PBFE5-H | |
| 3501 / 3999 | PBFE5-I | |
| 4000 | PBFE5-J |
NOTE: Pricing and specifications may be subject to change without notice. Prices shown may be UK only prices and therefore export pricing may vary dependant on location.
Images are for display purposes only.
