Quick Ref: TSKN-3886
Showing 2 of 8

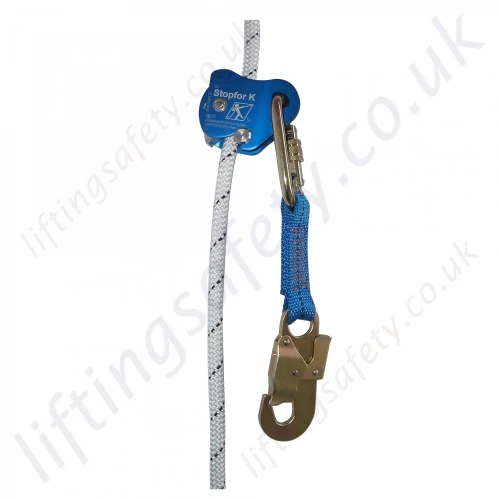

Tractel "Stopfor K" Automatic vertical Rope Guided Fall Prevention Device Suitable for 10-12mm Rope

Model:  stopfor K / TSKN-3886

Stopfor Connector
Quantity


Choose Your Pricing Currency
Guide Price £ 43.50
Part N°: 3886-7871269   Add to Quote Request

Tractel Stopfor K braided rope guided fall arrestor device - Optional Connectors and Rope

Stopfor K With Strap And M41 Stopfor K No Strap M10 Only

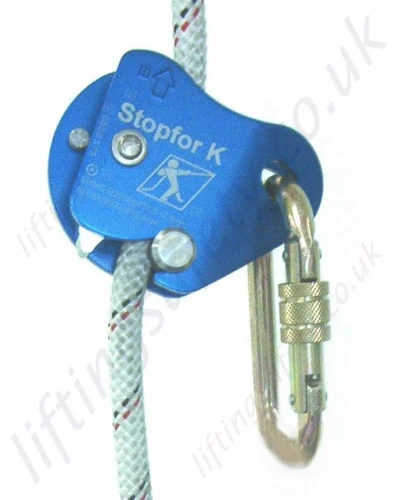

The STOPFOR K is a sliding fall arrester (which can also be used as a new-generation lanyard tensioner-reducer). When used as a fall arrester, it can be used with 10.5 to 12.5 mm diameter low-stretch rope.

The Stopfor K is a new fall arrest concept. Unlike fall arresters implementing a jaw as locking system, the Stopfor K eliminates the risk of mechanical blocking. Blocking is ensured by the body when an abrupt change of position occurs.

For this reason, the unit is more ergonomic and compact than its competitors and slides easier on the rope with no excessive locking.

By its unique design, the user can adjust his position with one hand, even if the device is tensioned. The unit can be opened to allow the user to perform maintenance on the product with no need to disassemble the tensioner.

The STOPFOR K fall arrester is made of aluminum. This light weight, robust, ergonomic and compact device connects to all the fall arrest anchoring points on the harness. It can be connected to the latter using a type M10 connector or using a small 20 cm lanyard. The rope is easy and fast to set up. To do so, the user removes the connector, swivels the two side plates and positions the rope. To close the unit, the user simply pivots the two side plates in the opposite direction and reinstalls the connector which acts as a safety lock.

Technical characteristics

  • Material : anodized aluminum
  • Steel connector M10
  • Lanyard option : PE 20 cm + 2 M10 steel

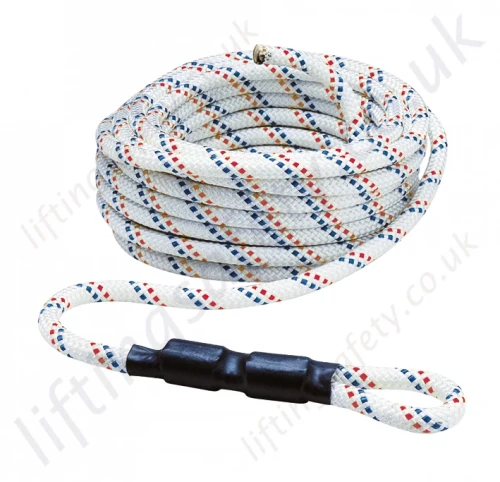

  • Designed for use with TRACTEL polyamide low-stretch rope,
  • 10.5 to 12.5 mm diameter, sold separately
  • Bare weight : 180 g.
  • 30cm lanyard included with connectors M41 and M42
  • Complies for use on terrace structures

Available with connectors:

  • M10, M41 and strap or M42 and strap

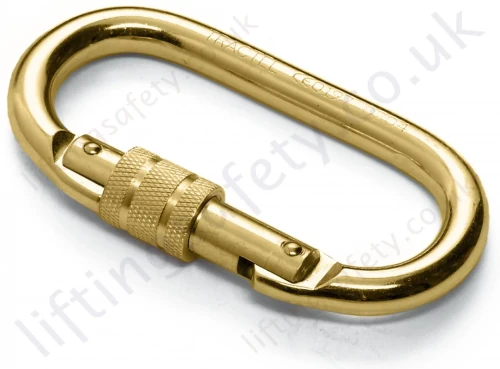

M10 18mm opening two tone steel manual screw locking

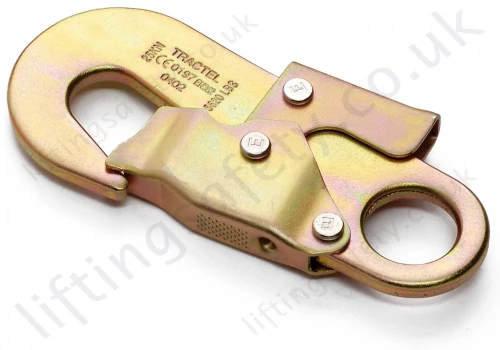

M41 21mm opening two tone steel double trigger auto locking

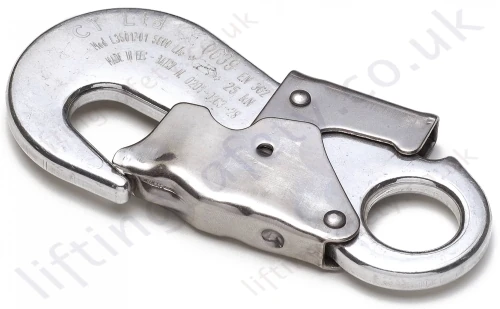

M42 18mm opening aluminium double trigger auto locking
M10 18mm opening two tone steel manual screw locking M41 21mm opening two tone steel double trigger auto locking M42 18mm opening aluminium double trigger auto locking
Tractel Stopfor K Technical Datasheet watermark.pdf

Tractel Stopfor K Technical Datasheet

(approx. 0.1Mb)
Stopfor Operating and Maintenance Instructions GB.pdf

Stopfor Operating and Maintenance Instructions

(approx. 1.3Mb)
