Tractel "Solo" Access Working Platform kit. 1 Person Use, Electric Or Manual Operation. Collapsible Basket With Fall Protection and Endless HOL

Model:  Solo / TS-2213

Tractel SOLO Man-riding Cradle
Cable Reelers
Primary Wire Rope - Ø 8mm
Secondary Safety Wire Rope - Ø 8mm
Solo Accessories
 Power Cable Collection Bin
Quantity


Unit Price £ Quote Only
Part N°: 2213-10607678   Add to Quote Request

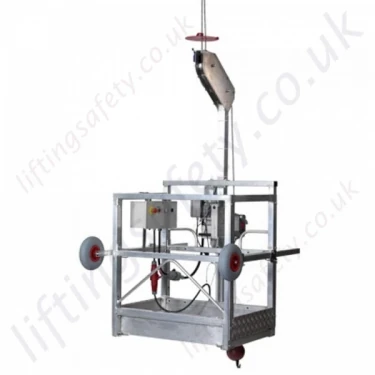

Tractel Solo manriding access winch platform (modular / knock down). Manual Electric Operation c/w integrated independent fall arrest system

Tractel Solo manriding cradle winch platformTractel Solo Man riding Cradle systems are a Winched Platform (one or 2 metre wide) and are supplied as a kit 'Ready to Go', They are fully electric powered by 110v, 220v for 400v or fitted with manual hand cranked wire rope hoists. Systems can be adapted for permanent or temporary installation / use; standard working heights are up to 40 metres though we can supply at system heights to suit our customers requirements - often over 100 metres. We also supply a range of roof top cantilever anchorage systems that are a modular design. These also can be left  permanently in-situ or disassembled for use in another location. All systems are fitted with the Blocstop fall arrest system.

The Ideal Solution For

  • Window and Facade Cleaning.
  • Fully collapsable (modular / knock down) design for ease of transport. (and ease of export)
  • Insulation and Weatherproofing.
  • Chimney and Furnace.
  • Tank and Boiler Construction.
  • Painting and Corrosion Protection.

The SOLO platform is intended for temporary or permanent applications for inspection and maintenance work on façades and other types of working at height. It lifts people and their working equipment - at unlimited heights.

The SOLO platform is designed particularly for lightweight applications, such as painting and decorating, refurbishing, jointing and repairs, window cleaning, etc. ... The complete system consists of the working platform equipped with an electric TIRAK® hoist and the support wheels, suspended by means of steel wire ropes from a suspension structure.

In the standard version, the SOLO cradle is fitted with a powered TIRAK hoist. As an option it can be fitted with a manual SCAFOR hoist.

The TIRAK hoist is available in 220 V, 0.45 kW, single phase or 220/380 V, 0.45 kW, three phase supply. The lifting speed is 8.5 m/min giving fast access to the working position, which becomes more important as the height of the building increases. The lifting height is limited only by the length of the wire rope since it passes through the TIRAK hoist without a drum reeler. Should there be a power failure, the operation of the centrifugal brake allows controlled lowering, to avoid any long delay in rescue.

The SOLSIT one-man seat is extremely compact and can pass through a man-hole of 45x54 cm. It can  then be used inside very narrow furnaces, wells and chimneys. 2 containers are fitted for carrying tools and cleaning materials.

Fast Installation and Set Up

The cradle or work seat can be very quickly installed and set up for operation. The two wire ropes are hooked onto the suspension point and the electric supply cable plugged in – depending on the model of TIRAK hoist – to a 220 V single phase or 220/380 V 3 phase supply. An extra power point for a drill or inspection lamp avoids the need for additional power supply cable.

Built-in Safety Devices

  • Secondary safety wire rope.
  • Overload safety device.
  • Controlled lowering by centrifugal brake.
  • Upper limit switch.
  • Safety belt (SOLSIT one-man seat).

Features

  • Optional Cable, Wheels and rollers please call our sales office on 01977 684 600
  • Lightweight and stable, the solo cradle is a quick combined access method.
  • With the use of the TIRAK motorised winch and the BLOCSTOP fall prevention device will ensure optimum safety, which makes this man riding access cradle an indispensable form of people-lifting equipment

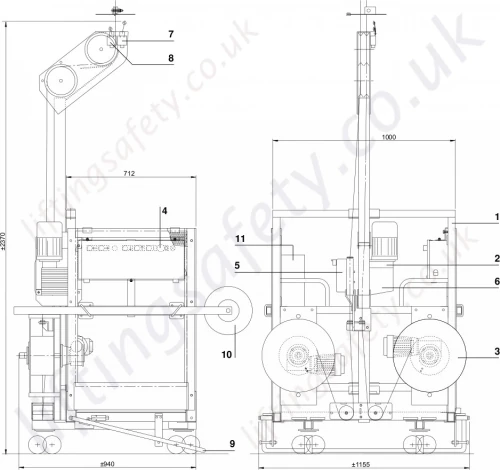

Technical Drawing - SOLO Permanent Cradle

This Platform is designed for permanent applications for lifting personnel with their work equipment.

It is designed particularly for lightweight applications, such as painting and decorating, refurbishing, jointing and repairs, window cleaning, etc.

The complete device consists of:

  1. SOLO working platform.
  2. TIRAK powered hoist.
  3. Wire rope reelers.
  4. Emergency stop.
  5. BLOCSTOP fall arrest device on secondary wire.
  6. Overload detector.
  7. Upper Limit Switch.
  8. FINAL upper limit switch.
  9. Lower anti-collision bar.
  10. Support roller.

Safety Systems

To ensure safe, risk-free operation for personnel, the platform is fitted with the following safety devices:

  • Service brake integrated in TIRAK hoist (2).
  • Emergency stop (4).
  • BLOCSTOP (5) safety device on secondary wire rope.
  • Overload detector intégrated in TIRAK hoist (6).
  • Upper limit switch (7) and FINAL upper limit switch (8) detector.
  • Phase controller.
  • Emergency descent in the event of current failure.
  • Lower anti-collision bar (9).
Technical Drawing


Anchoring Options

The ALTA platform can be suspended from all types of suspension which are manufactured according to the current standards and  recommendations. The EN 1808 stipulates a safety factor of 3 for anchor points and suspension structures. TRACTEL® offers a complete range of suspension structures which can be fitted on different types of roofs: the suspension jibs PORTAFIX®or PORTAFIX® "light" or the parapet clamp OMEGA.



PROTAFIX light suspension

PORTAFIX suspension

OMEGA parapet

PORTAFIX® "light" suspension jib (T-705) PORTAFIX® suspension jib (T-482) OMEGA parapet clamp (T-704)

In most applications, it is possible to use a system of mobile suspension jibs in the roof for the attachment of temporary suspended platforms.

Configuration Options

Tractel Solo Personnel / Man-riding Cradles

Solo manual operated one-man cradle - Option 1

  • 1 metre manriding basket including stirup and all fixing brackets for hoist and blocstops.
  • Manual operated hoist (Tractel Scarfor).
  • Blocstop fall arrest safety device (BSO 500).
  • Optional spring loaded reelers for both main and secondary wire ropes.

Alta Solo Tirak Powered Without Reelers - Option 2

  • 1 metre manriding basket including stirup and all fixing brackets for hoist and blocstops.
  • Tirak Powered Hoist - X-300P (400v) or X-301P (240v)
  • Blocstop fall arrest  safety device (BSO 500).

Alta Solo Tirak Powered With Reelers - Option 3

Kit comprises of:

  • 1 metre manriding basket including stirup and all fixing brackets for hoist and blocstops.
  • Tirak Powered Hoist - X-300P (400v) or X-301P (240v)
  • Blocstop fall arrest  safety device (BSO 500).
  • 2 x Powered reelers (40 m capacity).

*** Please Note - Ropes and powers supply cable are not supplied. ***

Modular Design

Knock down modular design.

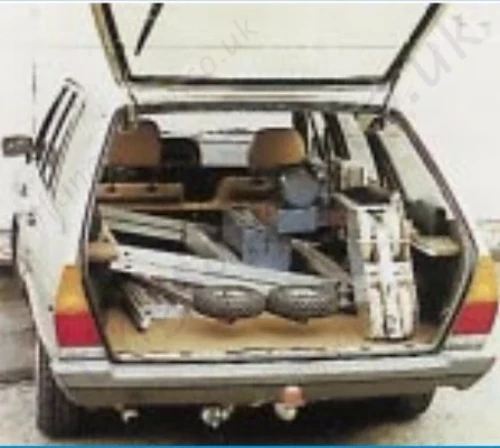

SOLO packed up into car boot SOLO Modular design
The Solo Man-riding cradle can be dismantled and placed in an ordinary estate car as shown above. One errected the cradle can be wheeled to the rope dropes ready for suspending the cradle.
