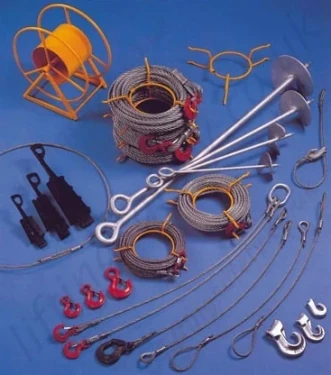

Tractel Accessories for Use with Tractel Lifting and Pulling Machines

Accessory Available

• Tirfor Shear Pins - Prevent overload of the Tirfor machine.
• Tirfor Handle - Telescopic operating handle.
• Ground Anchor with Spikes - Temporary anchor point for use on difficult or un-even ground.
• Ground Anchor Screw Type - Fixed point for pulling or lifting applications.
• Anchoring Hooks - For use with Tirfors T508, T516, T532 & TU32.
• Coilamatic - For attaching to the TU16 Tirfor.
• Wire Rope Gripper (Frog) - For pulling cables / wire 2-18mm Dia.
• Coni-Clamp - For lengthening ropes or slings 5-21mm Dia.

Specifications

Ground Anchor with Spikes

Components	Capacity	Rod L x Dia. (mm)	Shackle (t)	Weight (kg)
2 Anchor Plates, 8 Rods, 1 Shackle	3000kg	750 x 25	3	33.55
3 Anchor Plates, 12 Rods, 1 Shackle	5000kg	750 x 25	5	55

Ground Anchor Screw Type

Tirfor Machine	Capacity Depending on Ground	Weight (kg)
Jockey J3 / Jockey J5	0.5 to 1.0t	1.2
T508 / TU8	1 to 2t	3
T516 / TU16	2 to 4t	7
T532 / TU32	4 to 6t	11

Wire Rope Gripper (Frog)

• Light Alloy body
• Complete with shackle for anchoring
• Spread operated jaw for automatic gripping

Cable or Wire Dia. To be pulled (mm)	Capacity (kg)	Weight (kg)
3-8	320	0.3
7-15	380	0.55
14-18	400	0.6

Coni-Clamp

• Manufactured in forged steel
• Complete with Shackle
• Immediate adjustment to the req. position
• No damage to rope

Wire Rope (mm)	Capacity (kg)	Weight (kg)
5-10	400	1.6
10.5-14	600	3.7
15-21	800	7.5

Images

Tirfor T508 Shear Pins

Tirfor TU8 / TU16 Shear Pins

Tirfor T516 Shear Pins

Tirfor Telescopic Operating Handle

Tractel Ground Anchor

Tractel Drumreeler
