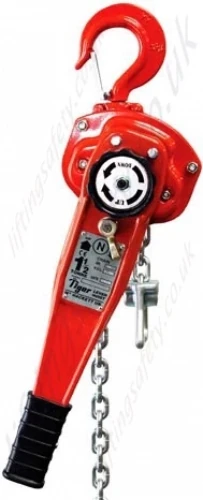

Tiger Pressed Steel Body Quality Lever Hoist - Range from 500kg to 10,000kg
Model: Tiger / TLH-2821
Good quality and lightweight hoist.
This product range has now been superseded by a newer model, the Tiger TLH11 Lever Hoist.
The 'Tiger' range of lever hoists are a medium to high level device designed to lift or pull a load. The load lifted must never exceed the rated capacity of the hoist (available 500kg, 750kg, 1500kg, 3000kg and 6000kg) the the maximum permitted load pulled will vary dependant of many factors, for example; is the load rolling (on wheels) and if so how many wheels, is the being pulled up a hill (on a gradient) etc... this is the responsibility of the competent person to assess.
Tiger Lever Hoists are also known a Tiger lever hoists / pullifts, they are manufactured from high quality materials offering a lightweight and very strong design and are priced competitively; especially bearing in mind the quality of the product.
The design of this lever hoist has been developed over time concentrated on operator safety and durability. This lever hoist has been designed to last!. Such features means that the chain pullers meet the standards required by the military (The Ministry of Defence) and are extensively used in the Offshore Oil and gas industry. The Hackett Tiger pul lift is a medium - high level product both reliable and safe with a proven track history in heavy industry
The Hackett hoist hoist range meets and supersedes the latest British and European Standard
For a High level top quality option consider using the William Hackett Sub Seal lever hoist.
Features
- Compact design combined with strength and durability make the Tiger Lever Hoist extremely robust whilst easy to handle in confined spaces.
- Specialised grease allows the units to work within temperatures ranging from -40ºc to +200ºc. This exceeds the European standard requirements for low temperature use.
- Improved friction disc design gives highly efficient breaking under extreme conditions.
- Guarantees against any light load failures down to 2% of the rated capacity.
- Tiger Lever Hoists can be fitted with any Yoke Grade 80 or Grade 100 component to suit specific application and lift orientation using our patent pending designed adaptor.
Additional Features
 |
 |
 |
 |

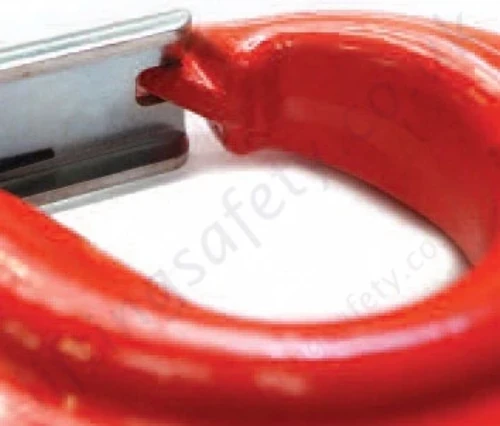

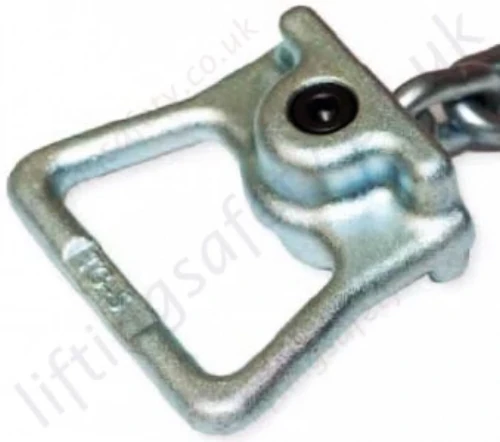

| Heavy duty steel latch engages fully with the hook tip creating a strong secure closure | New ‘End Stop' design guarantees compliance with European standards with hand grip to allow easy chain adjustment |

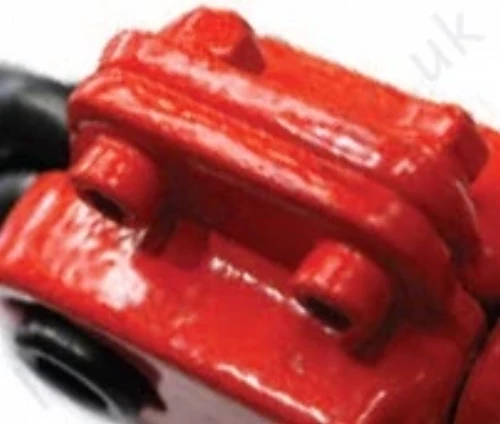

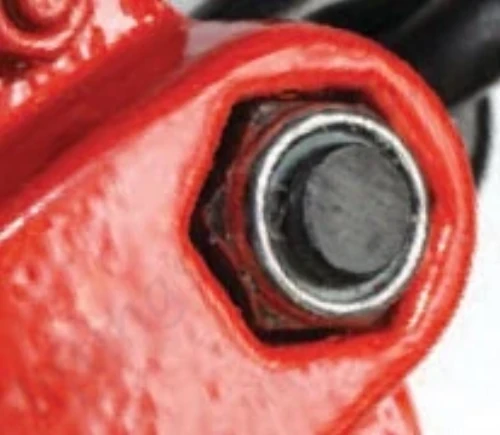

Load chain anchor bolts are fitted via a coined out area offering protection to the nut and bolt, whilst making removal easier for the service engineer | Nuts and bolts are used to secure hook yokes allowing disassembly of the yoke to allow full inspection of load hooks |
Exploded Diagram
Spare Parts List
| Part Code | Part Name | Part Code | Part Name |
| N-1 | Nut for Gear over | N-26 | Load Chain Guide |
| N-2 | Gear Cover | N-27 | Wheel Side Plate Assembly |
| N-3 | Pinion Shaft | N-29, N-13, N-28 | Ratchet Gear and Friction Disks |
| N-4 | Pinion Shaft Washer | N-30 | Nut for Handle Cover |
| N-5 | Gear-Side Plate | N-31 | Handle Assembly |
| N-6 | Load Sheave | N-32 | Change Lever |
| N-8 | Safety Latch | N-33 | Retaining Spring Base |
| N-9 | Top Hook Assembly | N-34 | Grip Ring |
| N-10 | Disc Hub | N-35 | Retaining Spring |
| N-11 | Pawl Spring | N-36 | Fixing Plate |
| N-14 | Spring Disc | N-37 | Screw for Fixing Plate |
| N-15 | Snap Ring | N-38 | Grip Ring Cover |
| N-16 | Brake Cover with Handle Cover | N-39 | Pinion Nut |
| N-17 | Change Gear | N-40 | Bottom Hook Assembly |
| N-18 | Spring Washer | N-41 | Bottom Hook Pin 0.75t - 3.0t |
| N-19 | Screw for Handle | N-43 | Spring Stand |
| N-20 | Label | N-44 | Pushing Up Spring |
| N-21 | Pinion Gear | N-45 | Pushing Up Pin |
| N-22 | Load Gear | N-46 | Change Pin |
| N-23 | End | N-52 | Bottom Hook Pin 6.0t |
| N-25 | Chain Stripper |
To Purchase Spare Parts for this product, Please Ring our sales team on 01977684600, or click here for our web enquiry form, quoting the necessary part numbers from the above table.

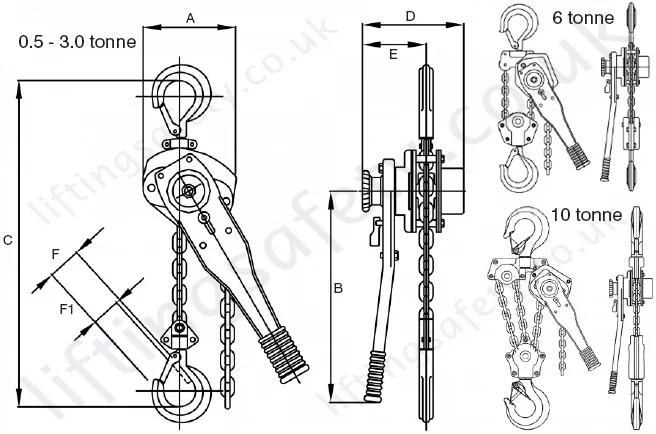

Dimensional Drawing
Specifications
| Part Code | SWL | Dimensions (mm) | Load Chain | Mass (kg) (1.5m) | |||||||
| A | B | C | D | E | F | F1 | Size (mm) | No. of Falls | |||
| 013.050 | 0.5t | 75 | 276 | 270 | 100 | 75 | 30 | 26 | 5.0 | 1 | 3.9 |
| 013.075 | 0.75t | 128 | 240 | 275 | 158 | 99 | 30 | 26 | 6.3 | 1 | 7.2 |
| 013.150 | 1.5t | 154 | 360 | 320 | 172 | 104 | 38 | 34 | 7.1 | 1 | 10.2 |
| 013.300 | 3.0t | 182 | 360 | 400 | 195 | 108 | 43 | 38 | 10 | 1 | 18 |
| 013.600 | 6.0t | 242 | 360 | 570 | 195 | 108 | 57 | 52 | 10 | 2 | 28 |

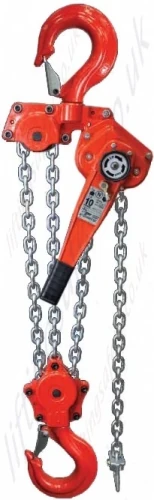

| 013.1000 | 10.0t | 370 | 360 | 630 | 195 | 108 | 71 | 56 | 10 | 3 | 42.4 |
Additional Features
|
|
|
|
| Heavy duty steel latch engages fully with the hook tip creating a strong secure closure | New ‘End Stop' design guarantees compliance with European standards with hand grip to allow easy chain adjustment |
Load chain anchor bolts are fitted via a coined out area offering protection to the nut and bolt, whilst making removal easier for the service engineer | Nuts and bolts are used to secure hook yokes allowing disassembly of the yoke to allow full inspection of load hooks |
Images are for display purposes only.
