Edge-Guard Temporary Free Standing Guard Rail

Edge-Guard Temporary Free Standing Guard Rail

Temporary Guard Rail.

Model:

TGR-2345

Edge-Guard Temporary Free Standing Guard Rail

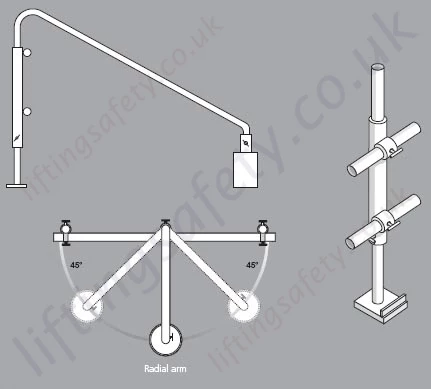

Temporary Guardrail Temporary Guardrail Diagram

Temporary solution that's permanently in demand.

When you need a temporary edge safety system that conforms to all safety standards, yet is very easy to assemble and work with, choose Edge-guard Temporary Freestanding Guardrail.

Specified and spoken for by professionals. Tell us what you want, a free design service is available. It's the cost-effective solution that's instantly available for sale or hire.

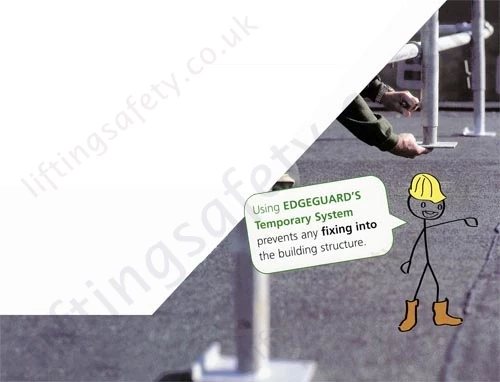

Because such systems are normally erected to protect workers, this simple patented design is easy to work around. Support legs can be raised when working up to a roof edge, while the counterbalances on the swing arms can be moved from side to side allowing easy access with no safety compromise. And because it works from roof level, there's no need for expensive scaffolding and eliminates risk of intruders from ground level.

Components:

Temp Rail

Upright Legs

  • 60.3 O/D x 3mm thick tube
  • mild steel to BS 7613
  • T-Keys 12mm stainless steel rod
  • BSEN10025/S275
  • Galvanised to BS729.

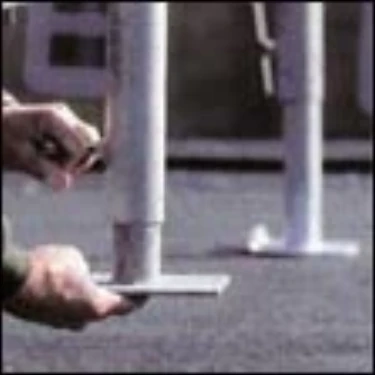

Flat Feet

  • Base plate 150 x 150 x 6mm
  • thick mild steel to BS7613
  • 42.4 O/D x 3mm thick tube
  • mild steel to BS7613
  • Galvanised to BS729.

Arm

  • 48.3 O/D x 3mm thick tube
  • mild steel to BS7613
  • Galvanised to BS729.

Filled Block

  • 200 O/D x 5mm thick tube
  • mild steel to BS7613
  • 5mm plate welded to bottom of tube
  • 60.3 O/D x 3mm thick tube
  • mild steel to BS7613
  • T-Key 12mm stainless steel rod
  • Galvanised to BS729.

Horizontal Tube

  • 48.3mm O/D tube
  • galvanised to BS729

Fluted Rubber Matting

  • Self-adhesive
  • Non-Degradable
  • Technical sheet available upon request

Fittings

  • All fittings used with Edgeguard Temporary Free-standing Guardrail System are malleable iron casting galvanised to BS729.

Edge Guard Temp Rail
