Crosby S3322 Swivel Hook with Bearing and Optional Safety Catch - Range from 2000kg - 15,000kg

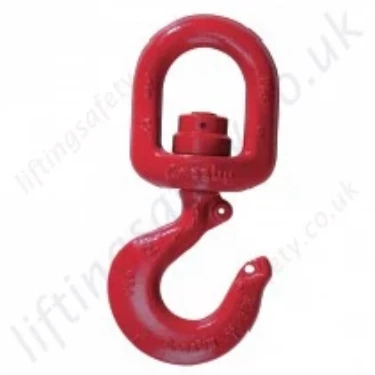

Crosby Swivel Hook With Bearing.

Model:

Crosby L/S-3322 / SHWB-2398


This page has now expired. View the new and updated page for the Crosby L3322 Swivel Hook with Bearing.

Crosby S3322 Swivel Hook With Bearing from 2 tonne to 15 tonnes SWL (safe working loads) They are forged alloy steel - quenched and tempered. Careful forging, and precision controlled quench and tempering gives maximum strength without excessive weight and bulk. Crosby S3322's have a low profile hook tip designed to utilize Crosby S-4320 or PL-N latch kit. Even years after purchase of the original hook, latch assemblies can be added.For further details see below:

S-3322 hooks incorporate markings forged into the product which address two QUIC-CHECK features:

  • Deformation Indicators -- Two strategically placed marks, one just below the shank or eye and the other on the hook tip, which allows for a QUIC-CHECK measurement to determine if the throat opening has changed, thus indicating abuse or overload. To check, use a measuring device (i.e. tape measure) to measure the distance between the marks. The marks should align to either an inch or half-inch increment on the measuring device. If the measurement does not meet this criteria, the hook should be inspected further for possible damage.
  • Angle Indicators - Indicates the maximum included angle which is allowed between two (2) sling legs in the hook. These indicators also provide the opportunity to approximate other included angles between two slings legs.
  • U.S. Patents 5,381,650 & 5,193,480 & 5,103,755 and foreign equivalents.

Metric Dimensions & Specifications

See imperial tab above for imperial specifications.

Working Load Limit (t)* S-3322 Stock No. L-3322 Stock No.† Weight Each (kg) Dimensions (mm) Rep. Latch Stock No.
A B C D F G H J K L M O R S AA
2 1028605 1028609 1.13 51.0 20.8 31.8 72.5 31.8 18.5 20.6 23.6 16.0 144 16.0 23.6 116 9.65 38.1 1096421
3 1028614 1028618 1.72 63.5 33.3 38.1 80.0 35.1 21.3 23.9 24.6 18.0 170 18.0 24.6 136 12.7 50.8 1096468
5 1028623 1028627 3.17 76.0 38.1 44.5 91.0 38.1 25.4 29.5 26.9 22.4 197 22.4 26.9 155 16.0 50.8 1096515
7 1028632 1028636 6.35 76.0 38.1 44.5 102 41.1 28.7 33.3 30.2 23.9 210 23.9 29.5 165 16.0 50.8 1096562
11 1028641 1028645 10.1 89.0 41.7 50.8 123 51.0 36.6 41.4 38.1 33.3 246 28.7 35.8 191 19.1 63.5 1096609
15 1028650 1028654 17.1 116 58.0 63.5 160 63.5 46.0 52.5 45.2 42.2 317 36.6 42.9 245 25.4 76.2 1096657
Dimensional Drawing

Important Notes

Proof load is 2.5 times the working load limit. Designed with a 4.5 to 1 design factor.
Supplied with latch attached.

As advertised in Crosby General Catalogue 2009 Page 97, and previously in Crosby General Catalogue 2006 Page 93.

Working Load Limit (t)*

S-3322
Stock No.
L-3322
Stock No.
Weight
Each
(lbs.)
Dimensions (in.) Rep. Latch
Stock No.
A B C D F G H J K L M O R S AA
2 1028605 1028609 2.5 3.00 1.50 1.75 3.59 1.50 1.00 1.16 1.06 .88 7.64 .88 1.00 6.01 .63 2.00 1096421
3 1028614 1028618 3.8 3.50 1.56 2.00 4.00 1.62 1.13 1.31 1.19 .94 8.60 .94 1.09 6.72 .75 2.00 1096468
5 1028623 1028627 7.0 4.00 1.56 2.25 4.84 2.00 1.44 1.63 1.50 1.31 10.32 1.13 1.36 8.00 .88 2.50 1096515
7 1028632 1028636 14.0 5.00 1.94 2.75 6.27 2.50 1.81 2.06 1.78 1.66 12.84 1.44 1.61 9.90 1.13 3.00 1096562
11 1028641 1028645 22.3 5.62 2.05 3.12 7.54 3.00 2.25 2.63 2.41 1.88 15.24 1.63 2.08 11.74 1.25 4.00 1096609
15 1028650 1028654 37.8 7.12 3.62 4.10 8.33 3.25 2.59 2.94 2.62 2.19 18.64 1.94 2.27 14.41 1.50 4.00 1096657

S3322 drawing

Crosby-catalogue-page-number-122-123.pdf

Product Warnings

PDF containing all warning information relevant to the safe use of this product
(approx. 0.3Mb)
crosby-catalogue-page-97.pdf

crosby-catalogue-page-97.pdf

(approx. 0.2Mb)
