Short Leg, Long Jib Cantilevered Floor Crane

Heavy Duty Floor Crane with Jib Arm Longer Than The Chassis

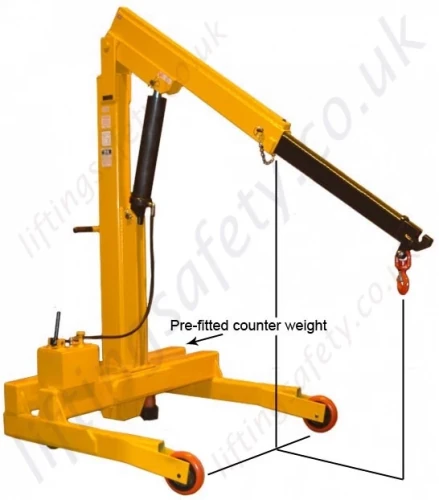

This is a heavy duty floor crane modified so that the jib arm protrudes (sticks out) further than the end of the forward facing stability feet. This is possible by adding counterbalance weight to the rear of the crane chassis. Each crane is designed for a specific application with dimensions and SWL to customers specification. There are many additional features that can be built onto this type of workshop crane including a rotating jib arm that will articulate 15 degrees left or right) We can also supply this crane made from stainless steel or Modular construction so that the crane can be easily split and re-assembled.

For dimensional information please contact our sales department, all these special floor cranes are made to suit our customers bespoke requirements.

This heavy duty rigid leg floor crane can be supplied with a removable vertical mast, horizontal lifting arm and hydraulics. This is referred to as our export version because it is more easily packed for export orders.

Note: The pictures shown are our artists impression only and are only indicative of our capability. (for display purposes only) All cranes are made individually and the the design may be subject to change according to your required specification; the pictures are not to scale, general arrangement drawings will be issued for approval on receipt of your order.

We can also supply with many other standard and optional extras as per the list below.

• Spark resistant features available on request.
• Optional stainless steel design, suitable for offshore or food production / pharmaceutical.
• Directional locking Castor's
• Large castors
• Overhead crane lifting points
• Special painting for offshore use
• Removable jib column
• Electric powered lifting
• Fully dismantleable version
• Optional rotating jib
• Extremely robust extra heavy duty construction.
• Quality construction.
• All cranes are bespoke designs to customers specification
• Top quality hydraulics throughout
• Each crane has been individually tested to 25% overload as a complete unit.
• Test certificate / letter of conformity supplied with each crane
• Crane can be supplied with removable column on request for export packing and removable legs
• Comes with a 12 month guarantee.

Case Studies of the Short Leg Long Jib Floor Crane

Below is an example of a bespoke version of our the long arm, short leg counter-weight floor crane. This sample product was made to lift telecommunications boxes into place on the streets of the UK. The crane is fitted with large Castor's for ease of movement over foot paths and for getting up pavements. The arm articulates to allow the cabinets to be positioned into corners, giving maximum maneuverability. On this unit we supplied bespoke lifting beam and the crane was fitted with push pull handle.

Cabinet Lifting Floor Crane

Cabinet Lifter Floor Crane	Cabinet Lifter, Lifting a Cabinet	Jib Arm and Cabinet
Rear View - Jib Rotated Left	Rear View - Jib In Centre	Rear View - Jib Rotated Right

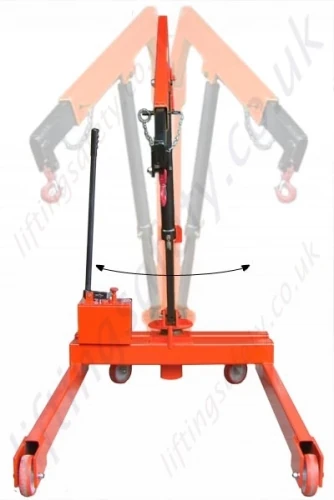

Front View - Rotated Left	Front View - Jib In Centre	Front View - Rotated Right
Side View with No Load	Arm to Right Lifting Cabinet	Side View Under Load
Counter Balance Weights	Jib and and Cabinet Spreader	Side View Including Brakes
Jib Rotation Point	Transportation Handle Locked	Transportation Handle Released

Jib Type Fixed Vertical Column Rotating Jib Arm (15° left/right) Removable Vertical Column

Crane Material Mild Steel Stainless Steel

Safe Working Load in Position 'A' (kg)

Max. Reach of Jib Arm (position A) (mm)

Max. Cantilever (position N) (mm)

Adjustable Jib Arm 3 Position Manual Adjustment None (fixed hook position) Hydraulic Adjustment

Further Options

 Directional Locking Castors
 Rough Terrain Castors
 Anti-static Castors
 Lifting and Slinging Points
 Painted for Offshore Use
 Powder Coated
 Auxilliary Adjustable Height Lifting Hook
 Anti-sparking Features
 12v DC Battery Powered Lift

Additional Information

Quantity

Guide Price (each) : Quote Required

Part N°: 3147-2114167
