LIFTINGSAFETY

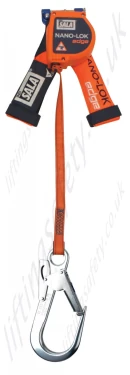

Sala Nano-Lok "Edge" Self Retracting Webbing Lifelines, with Optional Lengths and Optional Fittings

Sala Nano-Lok Edge Tested SRL Self Retracting Lifeline, with 2.4m or 2.5m Webbing Lifeline and supplied with Optional Fittings

Model:

SNSR-4723

Manufacturing Standard: CE, EN360


The Sala Nano-Lok edge is specifically designed for foot level tie-off and share edge applications often found in construction.

It is ergonomically designed for ease-of-use and is ideal for direct connection to most harnesses.

The extremely compact and lightweight design is virtually unnoticeable on your back, staying out of the worker’s way and making it ideal as a lanyard replacement.

Whether your application requires single or twin leg configurations, mounting to an overhead anchor or for connection directly to harness, there are numerous models to choose from to suit almost any application.

The Nano-Lok arrests a fall within inches thus providing more protection at low heights. In addition, tension is always kept on the lifeline, which reduces dragging, snapping and trip falls. Both features are key safety improvements.

Product Features

  • Designed for foot-level tie-off and sharp edge applications.
  • Twin-leg 100% tie-off design.
  • Built-in connector for twin-leg SRL direct attachment to harness.
  • 2.5m lifeline with 20 mm Dyneema web lifeline.
  • 2m Retractable lifeline.
  • Extremely compact, lightweight design.
  • Tough and impact resistant thermoplastic housing.
  • Swivelling anchorage loop.
  • Quick activating speed sensing brake systems.
  • Integrated backpack style energy absorber.
  • i-Safe equipped.
  • Wide variety of configurations available.
  • Standards: CE, EN360 VG11 sheet 60

Designed for foot-level tie-off and sharp edge applications
An innovative combination of lifeline material, energy absorption and harness connection reduce forces on both the worker and the edge.

Twin-leg 100% tie-off design
Allows user to “leap-frog” while moving from one location to another for added mobility and 100% fall protection.

Built-in connector for twin-leg SRL direct attachment to harness
Installs to the webbing of harness, leaving the dorsal D-ring open for other equipment or rescue. Designed to provide a snug fit to the worker's back, eliminating nuisance flopping.

2.5m lifeline with 20 mm Dyneema web lifeline
Allows easy visual inspection to determine if the unit has experienced a fall by a user.

2m Retractable lifeline
Abrasion resistant and extremely durable lifeline construction provides added field longevity.

Extremely compact, lightweight design
The devices are virtually unnoticeable on your back, stay out of the way and can be easily used as a lanyard replacement.

Tough and impact resistant thermoplastic housing
Compact and durable housings are designed to withstand the demands of challenging jobsites, they are built to last.

Swivelling anchorage loop
Limits lifeline twisting for smoother operation and added worker satisfaction.

Quick activating speed sensing brake systems
Stops a falling worker within cm providing more protection at low heights. Designed for smooth consistent operation allowing the user to maintain normal work pace and not be interrupted with constant lock ups.

Integrated backpack style energy absorber
Stays tight to the harness evenly dispersing the unit's weight and limits forces to protect against sharp edges.

i-Safe equipped
A built-in RFID identification tag helps the user record and store information on inspections.

Wide variety of configurations available
More than 20 models to choose from to suit almost any application for complete jobsite versatility and flexibility.

Options

Part Number Length (m) Lifeline Fitting Fitting Opening (mm) Weight (kg)
3101430 2.4 Aluminium Karabiner 14 1.3
3101432 2.5 Alu. Rebar Lock Hook 63 1.7
3101433 2.5 Alu. Rebar Hook 57 1.3
3101436 2.4 Steel Snap Hook 19 1.46
3101435 2.4 Zinc Plated Snap Rebar Hook 50 1.63



For further informatio / user instructions, click the 'Downloads' tab.

Nano-Lok-Edge-PPT-General-Presentation.pdf

Sala Nano-Lok /edge Tested Web self Retracting Lifeline Presentation

(approx. 0.9Mb)
Sala Nano-Lok Edge SRL User Instructions.pdf

Sala Nano-Lok Edge SRL User Instructions

(approx. 6.1Mb)
Sala Nano Lok Edge.pdf

Sala Nano-Lok Edge Tested SRL

(approx. 12.9Mb)
Part N° Length (m) Lifeline Fitting Fitting Opening (mm) Weight (kg) Guide Price Quantity
4723-T24014
3101430
2.4 Aluminium Karabiner 14 1.3 £ 267.30
4723-T24015
3101432
2.5 Alu. Rebar Lock Hook 63 1.7 £ 267.30
4723-T24016
3101433
2.5 Alu. Rebar Hook 57 1.3 £ 259.60
4723-T24017
3101436
2.4 Steel Snap Hook 19 1.46 £ 241.00
4723-T24018
3101435
2.4 Zinc Plated Snap Rebar Hook 50 1.63 £ 254.20
Add To Quote Request   ?
