Sala "RSQ Sealed Blok" Rescue Block with Retrieval Handle / Automatic (Manual) Descender / Fall Arrest Inertia Reel Block - 15m

Inertia reel with retrieval handle and (RSQ) Rescue Device, For rescue and for emergency evacuation from height. EN360 (fall arrest) and EN341 (Auto descent) EN1696 (Retrieval)

Model:

SEBC-3528


Sala Sealed Blok with RSQ and retrieval capacities

This page has now expired. Please click to be redirected to our full range of SALA Fall Arrest Retractable Inertia Reel Blocks, Self Retracting Lifeline to to EN360.



Exclusive design provides these Sala sealed blocks with both fall arrest with assisted rescue capabilities and automatic self rescue for ultimate versatility. These fall arrest mode stops falls within a few decimetres and limits the forces to 6kN or less for added safety. Using the First - Man - Up pole remotely or at the mode selector an assisted rescue procedure can be implemented, the self rescue mode will automatically lower the user to the next level after a fall. Built with a long lasting durable reinforced plastic housing with a built in carrying handle to ensure its lightweight, durability and easy transportation. The cable extends and retracts automatically enabling the user to move around the work area safely and protected. This is designed to meet the worldwide standards, including CE EN360 and EN341.

  • Built-in Rescue Device becomes integral part of a Rescue Plan.
  • Standard fall arrest mode.
  • Automatic rescue mode.
  • Remote/Assisted activation.

Retrieval Models

  • Built-in emergency retrieval winch for a raising and lowering personnel
  • Easily engage in and out of retrieval for fast and efficient operation - handle stows out of the way
  • Input crank handle has a primary brake which will prevent movement of load upon release of handlebracket
  • Optional bracket makes any Sala sealed block attaches to tripods and davits quick and easy (no tools needed).

Rescue Operations

Rescue Options

Features



Dimensions Value
Length 34cm
Width 29cm
Height 32cm
Weight 13kg



Options & Accessories

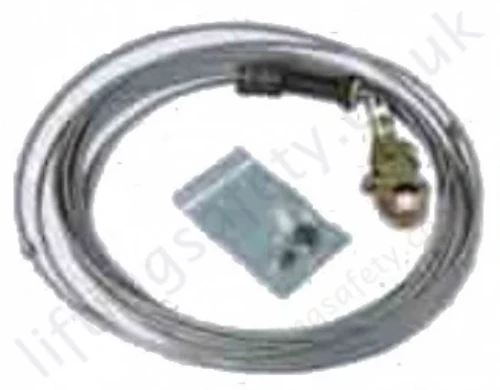

 Replacement Safeline Cable FAST-LineTM Cable Replacement Assemblies
Model Description
3900105 Cable replacement assembly for FAST-Line™, Galvanized cable with plated hook (15m Model only)
3900107 Cable replacement assembly for FAST-Line™, Stainless Steel cable with Stainless Steel hook (15m Model only)

First Man-Up Pole

Accessories
Model Description
3500202 First-Man-UpTM Pole, (2.4-4.8m) with Assisted Rescue Tool
3500200 Assisted Rescue Tool Only - If you already have a First-Man-UpTM Pole
2000112 SaflokTM Steel Carabiner, Self Locking/Closing, 19mm Gate Opening
2000113 SaflokTM Steel Carabiner, Self Locking/Closing, 30mm Gate Opening
2000114 SaflokTM Steel Carabiner, Self Locking/Closing, 50mm Gate Opening
9600037 Repair Tool
RSQ Retriever Block

Components

  1. Retrieval Winch
  2. RSQ™
  3. FAST-Line™
  4. 140kg Weight Capacity - higher capacity for operator & tools
  5. New Sealed Design - meets IP68 Rating
  6. Carrying Handle for Improved ergonomics
  7. Pivoting Anchorage Loopcentres the load
  8. i-Safe™- Track inspection - control inventory & manage information
  9. Tripod/Davit Arm Bracket - no tools required for install
  10. 1633kg Gate - reduces accidental disengagement
  11. Self-Locking Swivel - limits lifeline twisting
  12. Impact Indicator - Provides visual indication of Fall Arrest
  13. 5mm Diametre wire rope - stainless steel for corrosion resistance
  14. Aluminum Housing - corrosion resistant
  15. Stainless steel end-plate - durable construction for harsh environments.
RSQ-block.pdf

RSQ Block

(approx. 6.3Mb)

Sala Sealed Blok with RSQ and retrieval capacities

This page has now expired. Please click to be redirected to our full range of SALA Fall Arrest Retractable Inertia Reel Blocks, Self Retracting Lifeline to to EN360.



Exclusive design provides these Sala sealed blocks with both fall arrest with assisted rescue capabilities and automatic self rescue for ultimate versatility. These fall arrest mode stops falls within a few decimetres and limits the forces to 6kN or less for added safety. Using the First - Man - Up pole remotely or at the mode selector an assisted rescue procedure can be implemented, the self rescue mode will automatically lower the user to the next level after a fall. Built with a long lasting durable reinforced plastic housing with a built in carrying handle to ensure its lightweight, durability and easy transportation. The cable extends and retracts automatically enabling the user to move around the work area safely and protected. This is designed to meet the worldwide standards, including CE EN360 and EN341.

  • Built-in Rescue Device becomes integral part of a Rescue Plan.
  • Standard fall arrest mode.
  • Automatic rescue mode.
  • Remote/Assisted activation.

Retrieval Models

  • Built-in emergency retrieval winch for a raising and lowering personnel
  • Easily engage in and out of retrieval for fast and efficient operation - handle stows out of the way
  • Input crank handle has a primary brake which will prevent movement of load upon release of handlebracket
  • Optional bracket makes any Sala sealed block attaches to tripods and davits quick and easy (no tools needed).

Rescue Operations

Rescue Options

Features



Dimensions Value
Length 34cm
Width 29cm
Height 32cm
Weight 13kg



Options & Accessories

 Replacement Safeline Cable FAST-LineTM Cable Replacement Assemblies
Model Description
3900105 Cable replacement assembly for FAST-Line™, Galvanized cable with plated hook (15m Model only)
3900107 Cable replacement assembly for FAST-Line™, Stainless Steel cable with Stainless Steel hook (15m Model only)

First Man-Up Pole

Accessories
Model Description
3500202 First-Man-UpTM Pole, (2.4-4.8m) with Assisted Rescue Tool
3500200 Assisted Rescue Tool Only - If you already have a First-Man-UpTM Pole
2000112 SaflokTM Steel Carabiner, Self Locking/Closing, 19mm Gate Opening
2000113 SaflokTM Steel Carabiner, Self Locking/Closing, 30mm Gate Opening
2000114 SaflokTM Steel Carabiner, Self Locking/Closing, 50mm Gate Opening
9600037 Repair Tool
RSQ Retriever Block

Components

  1. Retrieval Winch
  2. RSQ™
  3. FAST-Line™
  4. 140kg Weight Capacity - higher capacity for operator & tools
  5. New Sealed Design - meets IP68 Rating
  6. Carrying Handle for Improved ergonomics
  7. Pivoting Anchorage Loopcentres the load
  8. i-Safe™- Track inspection - control inventory & manage information
  9. Tripod/Davit Arm Bracket - no tools required for install
  10. 1633kg Gate - reduces accidental disengagement
  11. Self-Locking Swivel - limits lifeline twisting
  12. Impact Indicator - Provides visual indication of Fall Arrest
  13. 5mm Diametre wire rope - stainless steel for corrosion resistance
  14. Aluminum Housing - corrosion resistant
  15. Stainless steel end-plate - durable construction for harsh environments.
RSQ-block.pdf

RSQ Block

(approx. 6.3Mb)

Pricing

Unfortunately this product has been discontinued and/or is no longer available. Please contact us for details on possible alternative products.
