Quick Ref: PP-3210
Showing 4 of 7

Pfaff Static "Long Platform Size" Electric Scissor Lift Table - Lifting Capacities 2000kg - 10,000kg, 1000mm - 1600mm Lifting Height (8 Options)

Model:  HTA-T / PP-3210

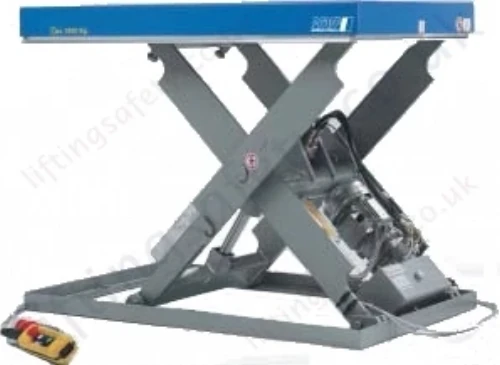

Pfaff Proline HTA-T Lifting Tables

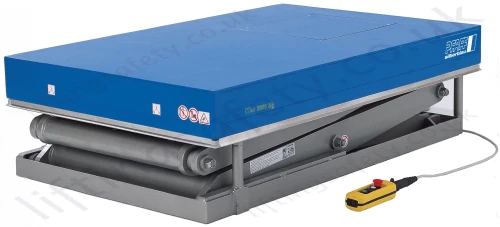

Pfaff Proline HTA-T Lifting Tables closed
Pfaff Proline HTA-T Lifting Tables Pfaff Proline HTA-T Lifting Table Folded
Part N° Lifting Capacity (kg) Lift Height (m) Lifting Time (sec) Motor power (kW) Weight (kg) Guide Price Quantity
3210-T20503
034563001
2000kg 1.0 24 1.5 2300 Quote Required
3210-T20504
034563002
2000kg 1.6 37 2.2 2700 Quote Required
3210-T20505
034563003
4000kg 1.0 29 2.2 2600 Quote Required
3210-T20506
034563004
4000kg 1.6 31 3.0 3000 Quote Required
3210-T20507
034563005
6000kg 1.6 40 4.0 3500 Quote Required
3210-T20508
034563006
6000kg 1.6 40 4.0 4000 Quote Required
3210-T20509
034563007
8000kg 1.6 40 4.0 4600 Quote Required
3210-T20510
034563008
10000kg 1.6 45 5.5 5700 Quote Required
Pricing Currency: Add To Quote Request   ?

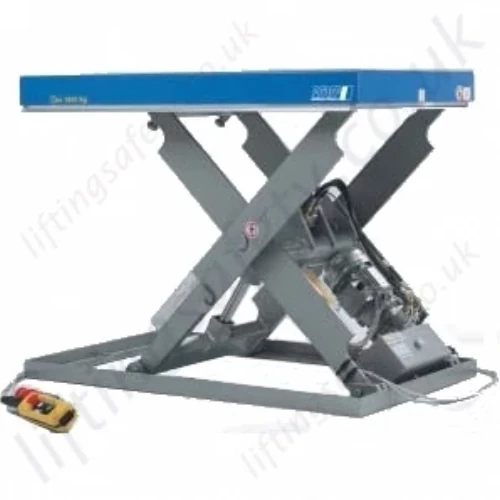

Pfaff-Silberblau HTA-T Proline lifting table.

Pfaff Proline HTA-T Lifting Tables

The versatile partner when lifting of heavyweight loads is required. Reliable in operation and especially stable in design, these platforms are  designed for the easy handling of all items, including concentrated and unevenly-balanced loads.

The heavy athlete within our lifting platform range - this static lifting table is designed for the effortless lifting of heavy goods and machinery  weighing up to 10 metric tons. Its key feature is a heavy-duty tandem scissors-mechanism, which can even handle long objects without affecting the load-distribution. Even badly balanced and centered loads can be lifted easily and with precision, thanks to the extreme stable design of these units. Additionally, optimum lifting heights are achieved despite the low overall height of the unit. The standard HTA-T PROLINE comes with a  motor capacity of up to 5,5 kW and can lift up to 10 metric tons.

Lifting Table Specifications:



Pfaff Proline HTA-T Lifting Tables Dims Lifting capacity (kg) Lift (H) m Platform (L x B) m Overall height (C) mm Lifting time (sec) Motor power (kW) Weight (kg)
2000 kg 1.0 3.50 x 1.0 300 24 1.5 2300
2000 kg 1.6 5.00 x 1.0 400 37 2.2 2700
4000 kg 1.0 3.00 x 1.0 360 29 2.2 2600
4000 kg 1.6 5.00 x 1.0 400 31 3.0 3000
6000 kg 1.6 5.00 x 1.0 400 40 4.0 3500
6000 kg 1.6 5.00 x 2.0 400 40 4.0 4000
8000 kg 1.6 5.00 x 1.6 400 40 4.0 4600
10000 kg 1.6 6.50 x 1.5 450 45 5.5 5700
