Pfaff Silverline Stira S Hand Chain Hoist, Top Hook Suspended - Range from 500kg to 10,000kg
Model: Stira S / PH-3195

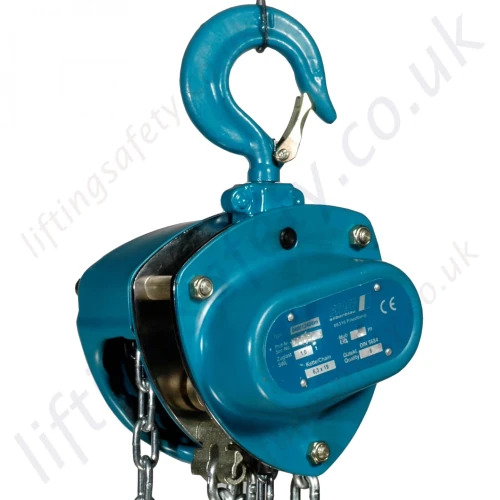

Pfaff silberblau SILVERLINE Stira S hand chain hoists.
Our best-selling hand chain hoist, slightly lighter-weight than the Proline lever hoist, but packed with the same
features combining proven quality & outstanding value.
This endurable "colleague" makes your purchasing decision easy: Using our SILVERLINE hand chain block the lifting and lowering of loads is achieved by pulling the hand chain – whilst the load pressure holds the load securely. As standard our SILVERLINE lifts loads from 500 kg up to 10000 kg and offers the option of larger lifting heights (standard 3 m) and the mounting of a chain container.
Hoist Specifications
| Type | Dims | Stira S - 500 |
Stira S - 1000 |
Stira S - 1500 |
Stira S - 2000 |
Stira S - 3000 |
Stira S - 5000 |
Stira S - 10000 |
| Lifting capacity | kg | 500 | 1000 | 1500 | 2000 | 3000 | 5000 | 10000 |
| Tensile strength on hand-chain under max. load |
kg | 23 | 31 | 32 | 36 | 34 | 41 | 41 |
| No. of falls | EA | 1 | 1 | 1 | 1 | 2 | 2 | 4 |
| Weight | kg | 10 | 12 | 19 | 20 | 27 | 46 | 83 |

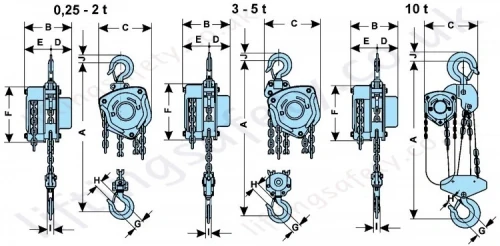

| A | mm | 270 | 317 | 399 | 414 | 465 | 636 | 798 |
| B | mm | 131 | 140 | 161 | 161 | 161 | 186 | 207 |
| C | mm | 127 | 158 | 174 | 187 | 199 | 253 | 398 |
| D | mm | 57 | 63 | 79 | 77 | 79 | 91 | 91 |
| E | mm | 74 | 77 | 82 | 84 | 82 | 93 | 116 |
| F | mm | 140 | 169.5 | 183 | 203 | 213 | 246 | 280 |
| G | mm | 36 | 40 | 45 | 50 | 58 | 64 | 85 |
| H | mm | 30 | 34 | 38 | 41 | 48 | 52 | 64 |
| I | mm | 12.5 | 16 | 20 | 22.5 | 27 | 35 | 40 |
| J | mm | 18 | 23 | 28 | 28 | 35 | 46 | 60.4 |
* Chain containers are not supplied as standard but are available on request.
NOTE: Pricing and specifications may be subject to change without notice. Prices shown may be UK only prices and therefore export pricing may vary dependant on location.
