Edge-Guard Permanent Free Standing Guard Rail

Product Images - (Mouse-over). Note: Some images may be for display purposes only and not necessarily included as standard.

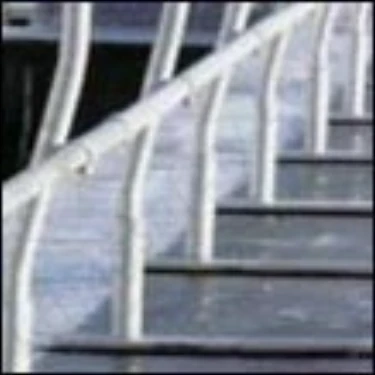

Permanent Free Standing Guardrail

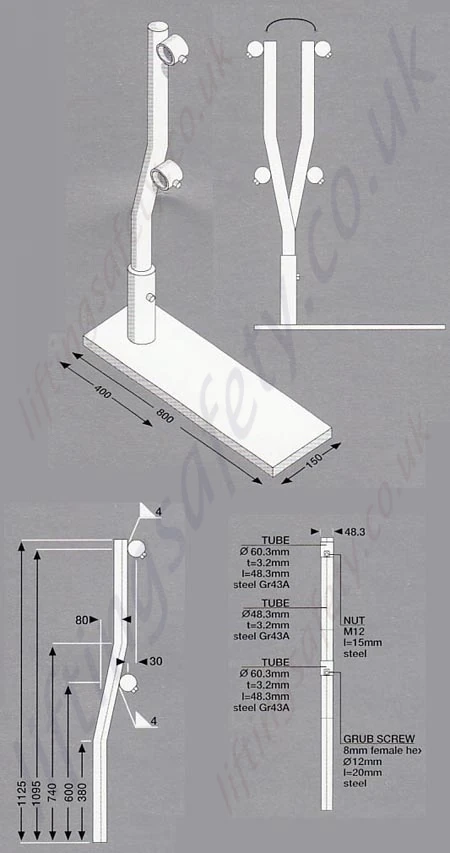

Permanent Free Standing Guardrail Diagram

Permanent Guard Rail.

The unique solution that's so versatile

When a permanent, post construction, flat roof edge safety system is called for this is a solution that's like no other.

This patented guard rail system is completely freestanding which means no need to penetrate into the roof membrane.

• Unlike other freestanding systems, our unique cantilevered design means no unsightly counterbalance weights and a reduced trip hazard, while a high performance rubber mat placed between the base and the roof surface ensures no adverse effect on new or existing roof guarantees. And for particularly delicate roof surfaces, a specially designed spreader plate gives added protection and peace of mind.
• Edge protection or walkway - the choice is yours.
• The system is reversable for totally unobstructed access. Ideal for fire escape routes or a safe passage around hazardous plant machinery or roof lights.
• SELS can colour the system to suit you with a powder coated finish in a full range of colours.
• It is not for aesthetics either, The finish makes the fully galvanised (BS729) system tougher, more durable and resistant to abrasion.

Who said safety had to be hard on the eye?

Posts

• 48.3 O/D x 3mm thick, mild steel to BS7613.
• Cleats, 60.3 O/D x 3mm thick, mild steel to BS7613. Galvanised to BS729.

Base

• 800 x 150 x 20mm, mild steel to BS7613. Galvanised to BS729.
• Spigot, 60.3 O/D x 3mm thick, mild steel to BS7613.

Tube

• 48.3 O/D x 4mm thick, mild steel to BS7613.
• Galvanised to BS729.

Ribbed Rubber Mats

• Self-adhesive
• Non-degradable
• Prevents heat build up, up to 100C
• Technical data available upon request

Fittings

• All fittings used in conjunction with all Edgeguard's Guardrail System, Free-standing and Mechanically Fixed are malleable iron casting with galvanised finish to BS729.
• The base unit has a 200mm adjustment to compensate for falls in roof levels.

Fixings

• Wall plate = 4 holes per plate.
• Set drill depth gauge to 50mm, drill 7mm diameter hole.
• raw plug and fasten with 50mm stainless steel screws.
