Alloy Gantry 'A' Frame with Twin Parallel Top Beams and Castors, Capacity: 2000kg or 3000kg, Optional Beam Length

Model:  MULG-3123

Twin Parallel Top Beam, Movable Under Load Gantry
Alloy Gantry A Frame with Parallel Top Beams and Castors
Size
Part N° Capacity Beam Length (Clear Width) Beam Length (Total) Total Height (Min.) Total Height (Max.) To Under SIde of Beam (Min.) To Under SIde of Beam (Max.) Unit Price Quantity
3123-T23740 2000kg 4000mm 4100mm 2210mm 2560mm 1860mm 2210mm £  5400.00
3123-T23741 2000kg 5000mm 5100mm 2210mm 2560mm 1860mm 2210mm £  6000.00
3123-T23742 2000kg 6000mm 6100mm 2210mm 2560mm 1860mm 2210mm £  6600.00
3123-T23743 2000kg 7000mm 7100mm 2210mm 2560mm 1860mm 2210mm Quote Required
3123-T23744 2000kg 8000mm 8100mm 2210mm 2560mm 1860mm 2210mm Quote Required
3123-T23745 3000kg 4000mm 4100mm 2210mm 2560mm 1860mm 2210mm £  6000.00
3123-T23746 3000kg 5000mm 5100mm 2210mm 2560mm 1860mm 2210mm £  6600.00
Add to Quote Basket   ?

Fully adjustable twin top beam, movable under load aluminium gantry with folding lateral legs.

Twin Parallel Top Beam, Movable Under Load Gantry

Top of the range gantries Manufactured in Germany with adjustable height and width. Light weight alloy and mobile. The twin parallel (double) top lifting beams add increased stability to a gantry system and are designed to be moved when loaded (load bearing / under load) with a wide working span of upto 8 metres between the vertical support legs. With the twin beam system the load trolley rests between the two beams and distributes the load evenly with smooth traversing on-long the beam, the hoist sits between the two beams giving a very high raised hook position (low headroom)

This is our mobile twin beam version - with Castor's and movable under load. Movement under load is subject to user risk assessment and must be carried out on a suitable, smooth and level surface and be performed by a competent person. The gantry has vertical adjustable on the central vertical column and also horizontal adjustment that is quick and infinitely adjustable.

Each of the legs / vertical supports collapses for ease of transport making the gantry easily handled and be transported to other working areas.

The braked load trolley is Included as standard as is a 'box section' top lifting beam; the trolley is low headroom design providing a smooth and safe means of traversing a load.

All the Gantries in this range can be supplied certified for manriding, fall arrest and rescue applications for persons working at height or in confined spaces.

Gantry Crane Includes: Parking break trolley, integrated horizontal adjuster and wheels with fixed directions (directional locking castors).

With 4 steel castors, heavy duty polyurethane. By releasing the fixed direction wheels the crane can be moved freely. With the use of the brake system the crane can be secured in position. The crane is equipped with a lateral brakes on both sides of the lifting gantry providing additional stability and rigidity.

Gantry is available in three main sizes:

  • Small (Height Range Option)
    • 2000kg and 3000kg options.
    • 2210mm min. total height.
    • 2560mm max. total height.
    • Beam length: 4 metres to 8 metre options.
    • See the tab above labelled 'Small Gantry' for full demsnions and specifications.
  • Medium (Height Range Option)
    • 2000kg and 3000kg options.
    • 2620mm min. total height.
    • 3370mm max. total height.
    • Beam length: 4 metres to 8 metre options.
    • See the tab above labelled 'Medium Gantry' for full demsnions and specifications.
  • High (Height Range Option)
    • 2000kg and 3000kg options.
    • 3030mm min. total height.
    • 4180mm max. total height.
    • Beam length: 4 metres to 8 metre options.
    • See the tab above labelled 'High Gantry' for full demsnions and specifications.


Small Gantry Crane Technical Specifications



Aluminium Gantry Crane Moveable Under Load



Dimensional specifications for the Small (Height Range) twin top beam aluminium gantry crane with collapsible lateral stands and castor feet (movable under load).

Item N° Load capacity Total height Beam length Suspension point at the bolt of the trolley Lower edge alu-beam Adjustment range Lateral stand Weight
min. max. Clear width Total min. max. min. max. beam support width height
(kg) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (kg)
3123-T23740 2000 2210 2560 4000 4100 2120 2470 1860 2210 350 1350 / 600 1430 300
3123-T23741 2000 2210 2560 5000 5100 2120 2470 1860 2210 350 1350 / 600 1430 318
3123-T23742 2000 2210 2560 6000 6100 2120 2470 1860 2210 350 1350 / 600 1430 336
3123-T23743 2000 2210 2560 7000 7100 2120 2470 1860 2210 350 1350 / 600 1430 354
3123-T23744 2000 2210 2560 8000 8100 2120 2470 1860 2210 350 1350 / 600 1430 436
3123-T23745 3000 2210 2560 4000 4100 2120 2470 1860 2210 350 1350 / 600 1430 300
3123-T23746 3000 2210 2560 5000 5100 2120 2470 1860 2210 350 1350 / 600 1430 358

Component Weights and Dimensions

Item n° Load capacity (kg) Beam length (mm) Beam support (mm) Beam profile (mm) Beam housing Width between alu-beams (mm) Total weight (kg) Aluminium beam (kg) Lateral stand (kg) Horizontal adjuster (kg) Beam amountings (kg) Trolley (kg)
3123-T23740 2000 4000 81 x 81 220 x 60

One side: sleeve 92 x 92mm, 380mm long,with connection for brace

Other side: end piece

250 300 2 x 39 2 x 86 23 10 17
3123-T23741 2000 5000 81 x 81 220 x 60 250 318 2 x 48 2 x 86 23 10 17
3123-T23742 2000 6000 81 x 81 220 x 60 250 336 2 x 57 2 x 86 23 10 17
3123-T23743 2000 7000 81 x 81 220 x 60  250  354  2 x 66  2 x 86  23  10  17
3123-T23744 2000 8000 81 x 81 220 x 60*  250  436 2 x 107  2 x 86  23  10  17
3123-T23745 3000 4000 81 x 81 220 x 60  250

 300

 2 x 39 2 x 86   23  10  17
3123-T23746 3000 5000 81 x 81 220 x 60*  250  358  2 x 68  2 x 86  23  10  17

* With Larger Profile Thickness (Inwards)

Medium Gantry Crane Technical Specifications



Aluminium Gantry Crane Moveable Under Load



Dimensional specifications for the 2000kg twin top beam aluminium gantry crane with collapsible lateral stands and castor feet (movable under load).

Item N° Load capacity Total height Beam length Suspension point at the bolt of the trolley Lower edge alu-beam Adjustment range Lateral stand Weight
min. max. Clear width Total min. max. min. max. beam support width height
(kg) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (kg)
3123-T23747 2000 2720 3470 4000 4100 2620 3370 2350 3110 750 1870 / 600 1880 326
3123-T23748 2000 2720 3470 5000 5100 2620 3370 2350 3110 750 1870 / 600 1880 344
3123-T23749 2000 2720 3470 6000 6100 2620 3370 2350 3110 750 1870 / 600 1880 362
3123-T23750 2000 2720 3470 7000 7100 2620 3370 2350 3110 750 1870 / 600 1880 380
3123-T23751 2000 2720 3470 8000 8100 2620 3370 2350 3110 750 1870 / 600 1880 462
3123-T23752 3000 2720 3470 4000 4100 2620 3370 2350 3110 750 1870 / 600 1880 362
3123-T23753 3000 2720 3470 5000 5100 2620 3370 2350 3110 750 1870 / 600 1880 384

Component Weights and Dimensions

Item n° Load capacity (kg) Beam length (mm) Beam support (mm) Beam profile (mm) Beam housing Width between alu-beams (mm) Total weight (kg) Aluminium beam (kg) Lateral stand (kg) Horizontal adjuster (kg) Beam amountings (kg) Trolley (kg)
3123-T23747 2000 4000 81 x 81 220 x 60

One side: sleeve 92 x 92mm, 380mm long,with connection for brace

Other side: end piece

250 326 2 x 39 2 x 99 23 10 17
3123-T23748 2000 5000 81 x 81 220 x 60 250 344 2 x 48 2 x 99 23 10 17
3123-T23749 2000 6000 81 x 81 220 x 60 250 362 2 x 57 2 x 99 23 10 17
3123-T23750 2000 7000 81 x 81 220 x 60  250  380  2 x 66  2 x 99  23  10  17
3123-T23751 2000 8000 81 x 81 220 x 60*  250  462 2 x 107  2 x 99  23  10  17
3123-T23752 3000 4000 81 x 81 220 x 60  250

 326

 2 x 39 2 x 99  23  10  17
3123-T23753 3000 5000 81 x 81 220 x 60*  250 384  2 x 68  2 x 99  23  10  17

* With Larger Profile Thickness (Inwards)

High Gantry Crane Technical Specifications



Aluminium Gantry Crane Moveable Under Load



Dimensional specifications for the High (Heigh Range) twin top beam aluminium gantry crane with collapsible lateral stands and castor feet (movable under load).

Item N° Load capacity Total height Beam length Suspension point at the bolt of the trolley Lower edge alu-beam Adjustment range Lateral stand Weight
min. max. Clear width Total min. max. min. max. beam support width height
(kg) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (kg)
3123-T23754 2000 3120 4270 4000 4100 3030 4180 2770 3920 1150 2220 / 600 2190 348
3123-T23755 2000 3120 4270 5000 5100 3030 4180 2770 3920 1150 2220 / 600 2190 366
3123-T23756 2000 3120 4270 6000 6100 3030 4180 2770 3920 1150 2220 / 600 2190 384
3123-T23757 2000 3120 4270 7000 7100 3030 4180 2770 3920 1150 2220 / 600 2190 402
3123-T23758 2000 3120 4270 8000 8100 3030 4180 2770 3920 1150 2220 / 600 2190 484
3123-T23759 3000 3120 4270 4000 4100 3030 4180 2770 3920 1150 2220 / 600 2190 348
3123-T23760 3000 3120 4270 5000 5100 3030 4180 2770 3920 1150 2220 / 600 2190 406

Component Weights and Dimensions

Item n° Load capacity (kg) Beam length (mm) Beam support (mm) Beam profile (mm) Beam housing Width between alu-beams (mm) Total weight (kg) Aluminium beam (kg) Lateral stand (kg) Horizontal adjuster (kg) Beam amountings (kg) Trolley (kg)
3123-T23754 2000 4000 81 x 81 220 x 60

One side: sleeve 92 x 92mm, 380mm long,with connection for brace

Other side: end piece

250 348 2 x 39 2 x 110 23 10 17
3123-T23755 2000 5000 81 x 81 220 x 60 250 366 2 x 48 2 x 110 23 10 17
3123-T23756 2000 6000 81 x 81 220 x 60 250 384 2 x 57 2 x 110 23 10 17
3123-T23757 2000 7000 81 x 81 220 x 60  250  402  2 x 66  2 x 110  23  10  17
3123-T23758 2000 8000 81 x 81 220 x 60*  250  484 2 x 107  2 x 110  23  10  17
3123-T23759 3000 4000 81 x 81 220 x 60  250

 348

 2 x 39 2 x 110  23  10  17
3123-T23760 3000 5000 81 x 81 220 x 60*  250 406  2 x 68  2 x 110  23  10  17

* With Larger Profile Thickness (Inwards)

Optional Gantry Features

If you require any of the features below please feel free to contact us and we will be happy to assist you in finding the correct gantry and fittings for your lifting application.

Split Top Beam

Split Top Beam

Separable aluminium top beam, to enable ease of transportation due to smaller lengths and weights making manual handling less of an issue. Being seperable / split means that it can also be packed away into a smaller space or fitted into the back of a van for movement between sites.

Wall Bracket Kit

Wall Bracket

Designed to fix one end of the beam to a wall.

Weight: 8kg.

Wall Bracket - More Detail

Wheel Kits - spring loaded (not for movement under load)

Wheel kit for stationary Gantry Cranes:
The advantage of the wheel kits is that you have the stability of a stationary gantry crane combined with the flexibility to move the crane to another position. E.g. the crane will be used in a factory building and when needed in more than just one spot they can move the crane to the area that they need to do further work. As soon as load is applied to the crane the frame around the casters will be pushed onto the floor and the crane will rest on this frame and no longer on the castors. As soon as the load is taken off the gantry the crane will raise slightly once more making the gantry mobile so that it can be moved to the next working area. Without that wheel kit the crane would need to be disassembled for transport to the next working area or manually carried.

This wheel kit facilitates the moving of the assembled gantry crane, without load. (not under load)

  • The spring mounted guide rolls allow the crane's lateral stands to rest directly on the supports when under greater loads.
  • The leg and forks construction permits the lateral stands to remain upright when assembling and dis-assembling the crane.
  • The fork legs are individually height adjustable.
  • 1 wheel kit = 4 x castors (forked supports)
Wheel Kit

Wheel Kit - Polyurethane Lining

Attention:

- When using this wheel kit together with this aluminium gantry crane the minimum suspension point at the trolley pin is increased by 360mm and the maximum suspension point at the trolley pin is increases by 160mm.

- The adjustment range of the wheel kit legs is 200mm.

Kit Features:

  • 4 Steel Castors.
  • With integrated wheel and live ring brake.
  • For indoor moving of the crane without load.
  • Weight: 60kg.
Heavy duty polyurethane lining

Wheel Kit - Polyurethane Foam Tyres

Attention:

- When using this wheel kit together with this aluminium gantry crane the minimum suspension point at the trolley pin is increased by 400mm and the maximum suspension point at the trolley pin is increases by 200mm.

- The adjustment range of the wheel kit legs is 200mm.

Kit Features:

  • 4 Steel Castors.
  • With integrated wheel and live ring brake.
  • For indoor and outdoor moving of the crane without load.
  • Weight: 60kg.
Heavy duty polyurethane foam tyres
Crane Transporter - Shown with packed away gantry crane

Crane Transporter

Designed to transport this type of gantry crane around from location to location whilst packed away reducing manual effort.

If the assembly site cannot be directly reached by vehicle, the easy handling of the crane transporter makes it possible to transport the gantry crane conveniently over distance.

Where the crane is used adjacent to the site you can do without a vehicle altogether.

The accessories of the crane can also be safely carried on the crane transporter.

Weight: 30kg (small and medium cranes), 32kg (high cranes).

Crane Transporter - Showing components

Chain Hoist

A choice of compact and lightweight hand chain hoists from a number of reputable manufacturers made from high quality materials.

Hoist Features

  • Minimum weight, thus easy to hang up.
  • Two-step spur gear.
  • Safe working loads to suit your application
  • High-strength, galvanised round link chain according to DIN 5684.
  • Corrosion resistant option, better suited for outdoor use.
  • Ball-bearing load hook.
  • The closed housing protects the drive and brake against dirt.
  • All mechanical parts are made from high quality steel.
  • Load hook comes complete with integrated safety catch.
Hand Chain Hoist

Electric Chain Hoist

This electric hoist is a hook suspended version and it is manufactured in accordance with EU - Machinery Directive and Equipment Safety Law. We can offer electric hoists to suit your application from a wide selection of manufacturers tailored to suit your requirements.

Hoist Features

  • IP rating to your specification
  • SWL to match with your choice of gantry
  • Suitable for internal or exterior use.
  • Power supply single phase or 3 phase, 110v, 240v or 415v.

Lifting Mechanism Specifics

  • Ambient temperature rating -20 to +40°C
  • Lifting speed to suit your requirements, single or dual speed
  • Duty cycle to your spec
  • Galvanised chain.

Electrical Features

  • Operating voltage: options
  • Low voltage pendant control
  • Control unit including control cable.
  • Control unit protection class: IP66
  • Can also be delivered with radio control.
Electric Chain Hoist
Cable Syetem Power Supply - Closer Detail

Cable System/Power Supply

Features

  • Power supply 110v, 230 or 400 V / 16 Amp. 50 Hz.
  • Spring recoil - PUR-coil lead (memory cable - curly wirly cable) or spring recoil power supply festoon option.
  • The electrical connection for the chain hoist is made using a plug and socket connection (Protection Class DIN EN 60529 IP66).
  • All electrical components can be appropriate for internal and external operating conditions.
Spring Recoil Power Supply
Cable System - Power Supply

Hand Winch

  • For height adjustment. (raise and lower the vertical column)
  • 1 set  = 2 pieces (1 hand winch per lateral stand).
  • Pertmits large lifting height.
  • The load on the crank is constant and independent of the cylinder diameter.
  • Durability due to the chain drive.
  • Height of lift per winch rotation: 90mm
  • Weight: 20kg.
Hand Winch

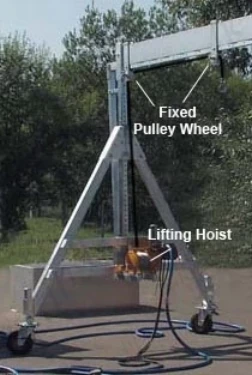

Gantry for Man-riding Applications

  • All the Aluminium Lifting Gantries in this range can be supplied certified for manriding, fall arrest and rescue applications
  • For persons working at height or in confined spaces.
  • We can supply fitted with a fall arrest inertia reel or / and manriding / rescue winch.
  • As you can see on the image to the right the winch options are fitted to the vertical upright then the cable is reeved over two fixed pulley wheels so that the hook can be lowered directly above the person.
Man-riding Application Gantry

Wire Rope Lifting Hoist

  • Using the same principle as above we can also supply the lifting gantry with a wire rope lifting hoist fitted (electric or pneumatic).
  • By deflection of the wire rope over two pulley wheels you can create maximum height of lift.
  • Lifting position on the top beam is adjustable to any required position.
  • Contact our sales office for further information or for a quotation.
Wire Rope Lifting Hoist


Contact Us About This Product

LiftingSafety uses cookies to improve your user experience,
To accept this, please click the 'accept' button below.

Top
