Fully Adjustable Aluminium Lifting Gantry Crane with Castors, 1000kg or 1500kg (small, medium or high, 6 options)

Fully Adjustable Aluminium Lifting Gantry Crane with Castors, 1000kg or 1500kg (small, medium or high, 6 options)

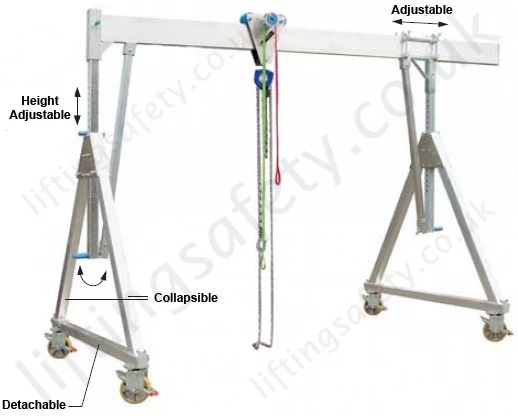

Alloy lightweight Gantry, Adjustable height and width with folding lateral legs. Moveable under load with split top beams.

Model:

MULG-3088

A large range of top quality German manufactured adjustable light weight alloy lifting gantries; this is our mobile version - with Castor's and movable under load. Movement under load is subject to risk assessment and must be on a suitable, smooth and level surface and be carried out by a competent person.The gantry has vertical adjustable on the central vertical column and also horizontal adjustment that is quick and infinitely adjustable.

Each of the legs / vertical supports collapses for ease of transport making the gantry easily handled and be transported to other working areas.

The braked load trolley is Included as standard as is a 'box section' top lifting beam; the trolley is low headroom design providing a smooth and safe means of traversing a load.

All the Gantries in this range can be supplied certified for manriding, fall arrest and rescue applications for persons working at height or in confined spaces.

Gantry Crane Includes: Parking break trolley, integrated horizontal adjuster and wheels with fixed directions (directional locking castors).

With 4 steel castors, heavy duty polyurethane.By releasing the fixed direction wheels the crane can be moved freely. With the use of the brake system the crane can be secured in position. The crane is equipped with a lateral brakes on both sides of the lifting gantry providing additional stability and rigidity.

Gantry is available in three main sizes (height ranges):

Small Gantries (2 options)

1000kg and 1500kg;
2095mm min. height;
2495mm max. height;
Beam length: 4 metres.
See the tab above labelled 'Small Sizes' for technical information on the small gantry crane.

Medium Gantries (2 options)

1000kg and 1500kg;
2535mm min. height;
3385mm max. height;
Beam length: 4 metre.
See the tab above labelled 'Medium Sizes' for technical information on the medium gantry crane.

High Gantries (2 options)

1000kg and 1500kg;
2865mm min. height;
4165mm max. height;
Beam length: 4 metres.
See the tab above labelled 'High Sizes' for technical information on the high gantry crane.

Adjustable Crane Features

Small Gantry Crane Technical Specifications

Small Cranes

Dimensional specifications for the small aluminium gantry crane with collapsible lateral stands and castor feet (movable under load).

Item N°	Load capacity	Total height		Beam length		Suspension point at the bolt of the trolley		Lower edge alu-beam		Adjustment range		Lateral stand		Weight
	Load capacity	min.	max.	Clear width	Total	min.	max.	min.	max.	beam support	telescopic foot	width	height	Weight
	(kg)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(kg)
3088-T4908	1000	2095	2495	4000	4100	1720	2120	1800	2200	400	-	1504	1415	166
3088-T4909	1500	2095	2495	4000	4100	1720	2120	1820	2220	400	-	1504	1415	172

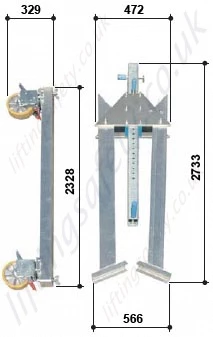

Component Weights and Dimensions

Item n°	Load capacity (kg)	Beam length (mm)	Beam support (mm)	Beam profile (mm)	Beam housing	Total weight (kg)	Aluminium beam (kg)	Lateral stand (kg)	Trolley (kg)	Horizontal adjuster (kg)
3088-T4908	1000	4000	70 x 70	200 x 50	One side: sleeve 92 x 92mm, with fixing point for brace; Other side: sealing plate	166	30	2 x 57	7	15
3088-T4909	1500	4000	70 x 70	220 x 60		172	36	2 x 57	7	15

* with larger profile thickness.

Medium Gantry Crane Technical Specifications

Medium Cranes

Dimensional specifications for the medium aluminium gantry crane with collapsible lateral stands and castor feet (movable under load).

Item N°	Load capacity	Total height		Beam length		Suspension point at the bolt of the trolley		Lower edge alu-beam		Adjustment range		Lateral stand		Weight
	Load capacity	min.	max.	Clear width	Total	min.	max.	min.	max.	beam support	telescopic foot	width	height	Weight
	(kg)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(kg)
3088-T4910	1000	2535	3385	4000	4100	2160	3010	2240	3090	850	-	2012	1859	192
3088-T4911	1500	2535	3385	4000	4100	2160	3010	2260	3110	850	-	2012	1859	198

Component Weights and Dimensions

Item n°	Load capacity (kg)	Beam length (mm)	Beam support (mm)	Beam profile (mm)	Beam housing	Total weight (kg)	Aluminium beam (kg)	Lateral stand (kg)	Trolley (kg)	Horizontal adjuster (kg)
3088-T4910	1000	4000	70 x 70	200 x 50	One side: sleeve 92 x 92mm, with fixing point for brace; Other side: sealing plate	192	30	2 x 70	7	15
3088-T4911	1500	4000	70 x 70	220 x 60		198	36	2 x 70	7	15

* with larger profile thickness.

High Gantry Crane Technical Specifications

High Cranes

Dimensional specifications for the high aluminium gantry crane with collapsible lateral stands and castor feet (movable under load).

Item N°	Load capacity	Total height		Beam length		Suspension point at the bolt of the trolley		Lower edge alu-beam		Adjustment range		Lateral stand		Weight
	Load capacity	min.	max.	Clear width	Total	min.	max.	min.	max.	beam support	telescopic foot	width	height	Weight
	(kg)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(mm)	(kg)
3088-T4912	1000	2865	4165	4000	4100	2490	3790	2570	3870	1300	-	2328	2130	214
3088-T4913	1500	2865	4165	4000	4100	2490	3790	2590	3890	1300	-	2328	2130	220

Component Weights and Dimensions

Item n°	Load capacity (kg)	Beam length (mm)	Beam support (mm)	Beam profile (mm)	Beam housing	Total weight (kg)	Aluminium beam (kg)	Lateral stand (kg)	Trolley (kg)	Horizontal adjuster (kg)
3088-T4912	1000	4000	70 x 70	200 x 50	One side: sleeve 92 x 92mm, with fixing point for brace; Other side: sealing plate	214	30	2 x 81	7	15
3088-T4913	1500	4000	70 x 70	220 x 60		220	36	2 x 81	7	15

* with larger profile thickness.

Optional Gantry Features

If you require any of the features below please feel free to contact us and we will be happy to assist you in finding the correct gantry and fittings for your lifting application.

Split Top Beam

Separable aluminium top beam, to enable ease of transportation due to smaller lengths and weights making manual handling less of an issue. Being seperable / split means that it can also be packed away into a smaller space or fitted into the back of a van for movement between sites.

Wall Bracket

Designed to fix one end of the beam to a wall.

Weight: 8kg.

Crane Transporter

Designed to transport this type of gantry crane around from location to location whilst packed away reducing manual effort.

If the assembly site cannot be directly reached by vehicle, the easy handling of the crane transporter makes it possible to transport the gantry crane conveniently over distance.

Where the crane is used adjacent to the site you can do without a vehicle altogether.

The accessories of the crane can also be safely carried on the crane transporter.

Weight: 30kg (small and medium cranes), 32kg (high cranes).

Chain Hoist

A choice of compact and lightweight hand chain hoists from a number of reputable manufacturers made from high quality materials.

Hoist Features

Minimum weight, thus easy to hang up.
Two-step spur gear.
Safe working loads to suit your application
High-strength, galvanised round link chain according to DIN 5684.
Corrosion resistant option, better suited for outdoor use.
Ball-bearing load hook.
The closed housing protects the drive and brake against dirt.
All mechanical parts are made from high quality steel.
Load hook comes complete with integrated safety catch.

Electric Chain Hoist

This electric hoist is a hook suspended version and it is manufactured in accordance with EU - Machinery Directive and Equipment Safety Law. We can offer electric hoists to suit your application from a wide selection of manufacturers tailored to suit your requirements.

Hoist Features

IP rating to your specification
SWL to match with your choice of gantry
Suitable for internal or exterior use.
Power supply single phase or 3 phase, 110v, 240v or 415v.

Lifting Mechanism Specifics

Ambient temperature rating -20 to +40°C
Lifting speed to suit your requirements, single or dual speed
Duty cycle to your spec
Galvanised chain.

Electrical Features

Operating voltage: options

Low voltage pendant control
Control unit including control cable.
Control unit protection class: IP66
Can also be delivered with radio control.

Cable Syetem Power Supply - Closer Detail

Cable System/Power Supply

Features

Power supply 110v, 230 or 400 V / 16 Amp. 50 Hz.
Spring recoil - PUR-coil lead (memory cable - curly wirly cable) or spring recoil power supply festoon option.
The electrical connection for the chain hoist is made using a plug and socket connection (Protection Class DIN EN 60529 IP66).
All electrical components can be appropriate for internal and external operating conditions.

Hand Winch

For height adjustment. (raise and lower the vertical column)
1 set = 2 pieces (1 hand winch per lateral stand).
Pertmits large lifting height.
The load on the crank is constant and independent of the cylinder diameter.
Durability due to the chain drive.
Height of lift per winch rotation: 90mm
Weight: 20kg.

Gantry for Man-riding Applications

All the Aluminium Lifting Gantries in this range can be supplied certified for manriding, fall arrest and rescue applications
For persons working at height or in confined spaces.
We can supply fitted with a fall arrest inertia reel or / and manriding / rescue winch.
As you can see on the image to the right the winch options are fitted to the vertical upright then the cable is reeved over two fixed pulley wheels so that the hook can be lowered directly above the person.

Wire Rope Lifting Hoist

Using the same principle as above we can also supply the lifting gantry with a wire rope lifting hoist fitted (electric or pneumatic).
By deflection of the wire rope over two pulley wheels you can create maximum height of lift.
Lifting position on the top beam is adjustable to any required position.
Contact our sales office for further information or for a quotation.

1000kg-gantry-crane-trolley-dimensions.pdf

1000kg Trolley Dimensions

(approx. 0.1Mb)

Gantry Crane Size ?

All dimensions are in millimetres unless otherwise stated.

Part N°	Load capacity (kg)	Total height - min. / max.	Beam length - Clear / Total	Suspension point at the bolt of the trolley - min. / max.	Lower edge alu-beam min. / max.	Beam support adjustment	Telescopic foot adjustment	Lateral stand - width x height	Weight (kg)	Unit Price
3088-T4908	1000	2095 / 2495	4000 / 4100	1720 / 2120	1800 / 2200	400	-	1504 / 1415	166	£ 6142.98
3088-T4909	1500	2095 / 2495	4000 / 4100	1720 / 2120	1820 / 2220	400	-	1504 / 1415	172	£ 6642.99
Add to Quote Basket × More information about shopping on LiftingSafety Quotation Help Please choose the correct configuration of your desired product, then once complete - press on the 'Request Quote' button, this item will then be added to your basket (). To view your basket, simply click on the basket icon at the top of the page OK ?
