Pfaff Silberblau Mini-Maxi Conveyor Belt Capacities of 50000kg Per Hour

Conveyor belts with 110v / 230v single phase, 0.37kw or 0.5kw options.

Model:

Mini-Maxi / M-3200


Unfortuanately we are now longer able to offer this item as it has been discontinued. Apologies for any inconvenince.

Mini-Maxi conveyor belts Capacity 50 tonnes per hour Designed specifically for the hire industry, the Pfaff Mini Maxi conveyor is the essential kit where high volume excavation is required.

Features Include:

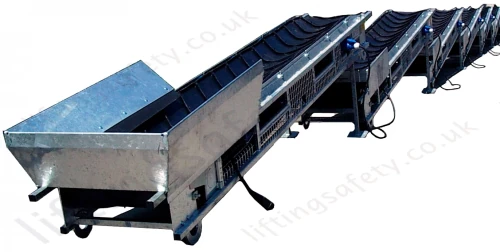

  • Individually controlled units can be set up in series.
  • Vulcanised endless rubber belt - no mechanical connection.
  • Galvanised steel, heavy duty frame (more durable than aluminium alternatives).
  • Easy to use with minimal installation time.
  • A simple belt scraper keeps the belt clean.

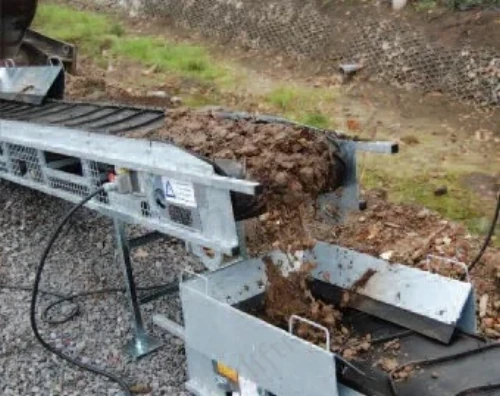

  • The movable supports allow you to place each conveyor belt exactly above the next one.

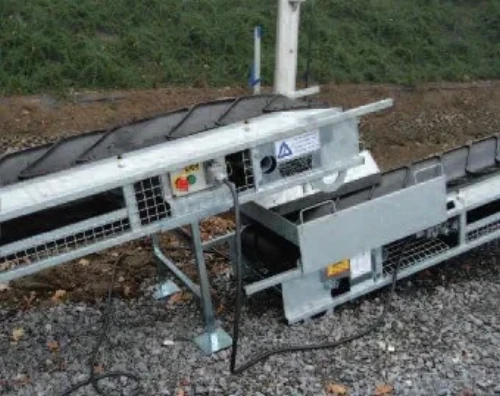

  • Handy hoppers ensure that each conveyor belt can be loaded perfectly.
  • Open frame design for easy cleaning after use.
  • 110volt and 230volt single phase options.
  • Operator safety with additional emergency stop button.

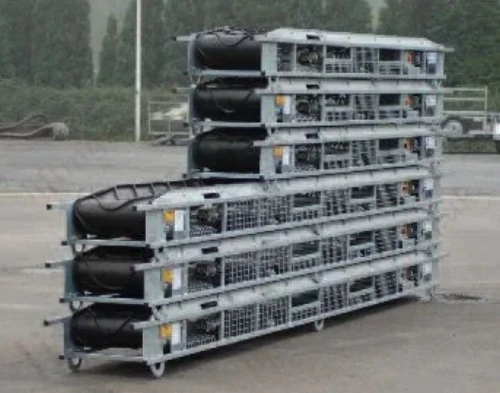

  • Easily stacked on top of each other saving yard space.
  • 18 month manufacturer’s warranty on the motor and lifetime warranty on the vulcanisation of the belt*.
Type Dims Mini-Maxi 3M Mini-Maxi 4.5M
Overall unit length mm 3130 4480
Overall unit length with handles mm 3430 4780
Overall unit width mm 490 490
Overall unit height mm 340 340
Belt width mm 400 400
Motor - 0.37kw - 230v or 110v (1/2 HP) 0.50kw - 230v or 110v
Belt speed m/min 24 24
Maximum rising angle degrees 40° 40°
Weight kg 100 135
Capacity tonnes/per hour* 50 tonnes per hour 50 tonnes per hour

*Subject to material and normal usage.

Large hopper, small hopper, conveyor support, set of transport wheels and connection cables are all available on request.

mini_maxi_30m_op.pdf

Mini-Maxi 30 Mtrs

Operating and Service Instructions.
(approx. 0.8Mb)
mini_maxi_45m_op.pdf

Mini-Maxi 45 Mtrs

Operating and Service Instructions.
(approx. 0.8Mb)

Unfortuanately we are now longer able to offer this item as it has been discontinued. Apologies for any inconvenince.

Mini-Maxi conveyor belts Capacity 50 tonnes per hour Designed specifically for the hire industry, the Pfaff Mini Maxi conveyor is the essential kit where high volume excavation is required.

Features Include:

  • Individually controlled units can be set up in series.
  • Vulcanised endless rubber belt - no mechanical connection.
  • Galvanised steel, heavy duty frame (more durable than aluminium alternatives).
  • Easy to use with minimal installation time.
  • A simple belt scraper keeps the belt clean.
  • The movable supports allow you to place each conveyor belt exactly above the next one.
  • Handy hoppers ensure that each conveyor belt can be loaded perfectly.
  • Open frame design for easy cleaning after use.
  • 110volt and 230volt single phase options.
  • Operator safety with additional emergency stop button.
  • Easily stacked on top of each other saving yard space.
  • 18 month manufacturer’s warranty on the motor and lifetime warranty on the vulcanisation of the belt*.
Type Dims Mini-Maxi 3M Mini-Maxi 4.5M
Overall unit length mm 3130 4480
Overall unit length with handles mm 3430 4780
Overall unit width mm 490 490
Overall unit height mm 340 340
Belt width mm 400 400
Motor - 0.37kw - 230v or 110v (1/2 HP) 0.50kw - 230v or 110v
Belt speed m/min 24 24
Maximum rising angle degrees 40° 40°
Weight kg 100 135
Capacity tonnes/per hour* 50 tonnes per hour 50 tonnes per hour

*Subject to material and normal usage.

Large hopper, small hopper, conveyor support, set of transport wheels and connection cables are all available on request.

mini_maxi_30m_op.pdf

Mini-Maxi 30 Mtrs

Operating and Service Instructions.
(approx. 0.8Mb)
mini_maxi_45m_op.pdf

Mini-Maxi 45 Mtrs

Operating and Service Instructions.
(approx. 0.8Mb)

Pricing

Unfortunately this product has been discontinued and/or is no longer available. Please contact us for details on possible alternative products.
