Yale "VLHP" Low Headroom Trolley - Range from 250kg to 6,000kg

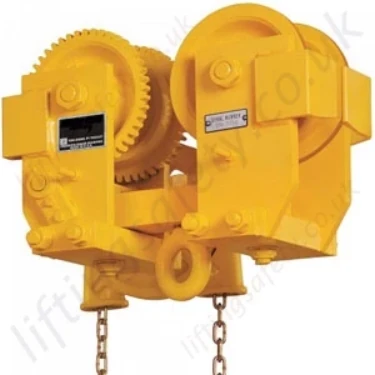

Yale Low Head Room Swivel Truck Push / Geared Trolley with Extremely Short Radius Curve.

Model:

Yale VLHP / LHT-1001


Description

+

The manual trolley series VLH features extremely low headroom. The swivel truck construction allows negotiation of very short radius curves.

Workmanship and features

  • All-steel construction with low headroom.
  • The swivel truck feature permits application on runways with very short radius curves.
  • All units are variably adjustable to individual beam sizes.
  • Anti-drop devices and anti-tilt devices are standard features.
  • All geared (VLHG) units come complete with 2.4 metre HCD (hand chain drop) as standard to suit 3m HOL (height of lift).

Optional equipment

  • Rubber buffers available on request.
  • Large variety of special versions on request.

Technical Specifications

Model Capacity Beam flange width min. Flange width max. Max. flange thickness Min. radius curve Netweight
VLHP VLHG
kg mm mm mm mm kg kg
VLHP/G 0.25 250 67 117 16 251 20 29
VLHP/G 0.5 500 67 117 16 251 20 29
VLHP/G 1 1000 76 117 16 251 27 35
VLHP/G 1.5 1500 86 140 16 495 38 48
VLHP/G 2 2000 86 140 16 495 38 48
VLHP/G 3 3000 102 178 16 391 71 85
VLHP/G 4 4000 102 178 16 391 71 85
VLHP/G 5 5000 117 203 22 860 125 140
VLHP/G 6 6000 117 203 22 860 125 140
Downloads

+
yale_vlhp-vlhg_swivel_truck.pdf

(approx. 0.2Mb)

The manual trolley series VLH features extremely low headroom. The swivel truck construction allows negotiation of very short radius curves.

Workmanship and features

  • All-steel construction with low headroom.
  • The swivel truck feature permits application on runways with very short radius curves.
  • All units are variably adjustable to individual beam sizes.
  • Anti-drop devices and anti-tilt devices are standard features.
  • All geared (VLHG) units come complete with 2.4 metre HCD (hand chain drop) as standard to suit 3m HOL (height of lift).

Optional equipment

  • Rubber buffers available on request.
  • Large variety of special versions on request.

Technical Specifications

Model Capacity Beam flange width min. Flange width max. Max. flange thickness Min. radius curve Netweight
VLHP VLHG
kg mm mm mm mm kg kg
VLHP/G 0.25 250 67 117 16 251 20 29
VLHP/G 0.5 500 67 117 16 251 20 29
VLHP/G 1 1000 76 117 16 251 27 35
VLHP/G 1.5 1500 86 140 16 495 38 48
VLHP/G 2 2000 86 140 16 495 38 48
VLHP/G 3 3000 102 178 16 391 71 85
VLHP/G 4 4000 102 178 16 391 71 85
VLHP/G 5 5000 117 203 22 860 125 140
VLHP/G 6 6000 117 203 22 860 125 140
yale_vlhp-vlhg_swivel_truck.pdf

(approx. 0.2Mb)
