Heavy Duty Hydraulic Workshop Press, Manual Hydraulic Operation - 12,000kg to 20,000kg

Model:  HDHP-2753

12, 15 and 20 tonne Floor and a <a href="/product/hydraulic-workshop-press-1193.html">Bench Press</a>
Range Of Heavy Duty Hydraulic Workshop Press
Model
Quantity


Choose Your Pricing Currency
Guide Price £ 990.00

NOTE: This item has separate transport costs (£ 70.00)
Part N°: 2753-195393   Add to Quote Request

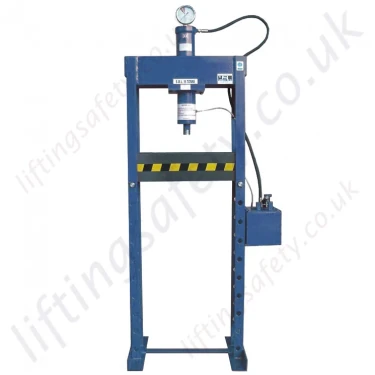

12t, 15t and 20 tonnes. Heavy-duty Hydraulic Workshop Press, Floor Mounted.

All hydraulic cylinder piston rods are fitted with a removable end cap, the end cap is held in place by a concealed ring. This eleminates the need for external fixing screws that can interfere when using the piston rod in a confined space. The press end cap cap is easily removed for fitting mandrels. Mandrels can be manufactured to customer requirements.

Features

  • Gauge positioned for easy reading, calibrated in P.S.I and BAR for accurate control when pressing .
  • Low Pressure Hydraulic System ensuring long life.
  • Hydraulic Ram Fitted with a stroke restrictor valve to prevent damage.
  • Precision built hydraulic pump and ram.

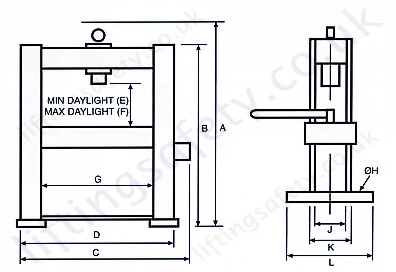

    Technical Diagram

  • All Pumps are fitted with a pressure release valve to prevent damage.
  • all welded heavy duty construction frame.
  • All Presses are compleate with a 100mm dia. pressure guage and one pair of universal "vee" blocks.
  • Each press is overload tested and a test certificate / letter of conformity supplied.
  • Each press has been individually tested as a complete unit.
  • Precise guidance of the piston rod through a high quality self-lubricating guide bush ensures first class pressing, the cylinder is manufactured from top quality hydraulic tube and is an all welded construction.
  • The hydraulic pump and cylinder are manufactured from top quality materials using the selective assembly method, this gives good tolerance and long working life to the press.
  • Comes with a 12 month guarantee.

Specifications

Part Number 2753-195393 2753-195394 2753-195395
Type Floor Floor Floor
Capacity (tonnes) 12 15 20
O/A Frame Height (A) mm 1600 1860 1900
Frame Height (B) mm 1375 1635 1630
O/A Frame Width (C) mm 750 750 830
Frame Width (D) mm 610 610 650
O/A Frame Depth (L) 510 510 520
Min. Daylight (E) mm 120 180 100
Max. Daylight (F) mm 820 1080 1000
Side Clearance between Posts (J) mm 155 155 180
Front Clearance between Posts (K) mm 500 500 500
Ram Stroke mm 100 100 160
Pump type: Double Acting Double Acting Double Acting
Approx. Weight Kg 130 170 270
