MANUAL OR POWERED - Carriage Mounted (Fork Truck Lifting Action) Counterbalanced Workshop Floor Crane, Hand or Powered Lift & Travel. Many options.

Model:  HWFC-2937

Crane Material
Safe Working Load
Height of Lift (mm) ?
Maximum Reach of the Jib Arm (mm) ?
Adjustable Jib Arm ?
Method of Lifting
Further Options ?
 Outriggers
 Forklift Truck Lifting Pockets
 Directional Locking Castors
 Anti-static Castors
 Jacking Feet
 Lifting and Slinging Points
 Painted for Offshore Use
 Powder Coated
 Power Travel
 Auxilliary Adjustable Height Lifting Hook
 Anti-sparking Features
 Removable Jib Arm
Additional Information ?
Quantity


Unit Price £ Quote Only
Part N°: 2937-1673679   Add to Quote Request

Counter-balanced floor crane With Carriage Mounted Vertical Lift column. Optional Stainless Steel. Can be made to customer specification

Standard version (mild steel)

This version of our portable floor crane incorporates the carriage of a fork truck with a telescopic jib arm of a crane (instead of fork tynes) resulting in a fantastic piece of workshop lifting equipment. we offer many options of this crane with safe working loads up to 2000kg.
The advantage of this style of lift is that the lift is true vertical, ie, there is no 'Ark' when the material is lifted or lowered making it easier to judge the best position for the lift; secondly, the hook will go much lower than our standard floor cranes and will raise as high as you need! all achievable because we will make each crane to your required maximum lifting height.

We also make special versions of the crane to our customers own specification with bespoke dimensions and lifting capacities, jib reach and height, please phone our technical staff on 01977 684600 if you require any assistance or further information.

Note: The pictures shown are our artists impression only and are only indicative of our capability. (for display purposes only) All cranes are made individually and the the design may be subject to change according to your required specification; the pictures are not to scale, general arrangement drawings will be issued for approval on receipt of your order.

Features

  • Extremely versatile design.
  • Robust construction for heavy duty industrial use.
  • Totally customizable to customers specification.
  • Battery powered electric drive and lift options.
  • outriggers are particularly suitable for high lifts to give better stability.
  • Load raised by hydraulic hand pump or by hand winch (or electric).
  • Supplied with anti sparking features for offshore use.
  • Stainless steel options.
  • Made in the UK.
  • Each crane has been individually tested to 125% SWL as a complete unit.
  • Test certificate / letter of conformity supplied with each crane.
  • Come with a 12 month guarantee.

For Optional Features and Accessories - refer to the tab above "Optional Features"

Floor Cranes With Spark Resistant Features / Explosion proof.

For Floor cranes to be used in potentially explosive areas / atmospheres such as Zone 1 or 2, SELS can include any anti-sparking features that our customers specify - this will increase its anti-sparking properties and therefore make the crane more suitable for use in a potentially explosive environment!

SELS will not to take the responsibility of supplying our floor cranes described as 'spark proof' as this is ‘too broad’ a term. We believe that total compliance is probably impossible because of the mechanical operation and movement of a floor crane; i.e. we cannot offer a 100% guarantee that no part of the assembly is capable of generating a spark which could ignite a flame!  IE: SELS will supply / manufacture cranes with anti sparking features to our customer’s requirements though will not certified them as sparkproof / explosion proof. Our cranes have been successfully supplied to customers in the offshore Oil and Gas industry in the UK on this basis.

Stainless Steel Vertical Lift Counter Balanced Floor CraneStainless Steel Counter Balanced Floor Cranes With Vertical Lift Jib Arm

Stainless Steel Vertical Lift Counter Balanced Floor/Workshop Crane with Carriage Mounted Vertical Jib Arm.

This stainless version of our portable floor crane incorporates the carriage of a fork lift truck with a telescopic jib arm of a crane making a highly adjustable / flexible piece of workshop lifting equipment. Safe working loads can be supplied up to 2000kg and the lifting action can be by hydraulic hand pump or by hand operated winch.
The real great feature of this type of floor craner is the the hook lifts verticallyu and not in an 'Ark' as it would with one of the standard floor cranes
We also make special versions of the crane to our customers own specification with bespoke dimensions and lifting capacities, powered lifti and travel, jib reach and height, please phone our technical staff on 01977 684600 if you require any assistance or further information.

Features

  • Extremely versatile design
  • Robust construction for heavy duty industrial use
  • Totally customizable to customers specification
  • Battery powered electric drive and lift options
  • outriggers are particularly suitable for high lifts to give better stability
  • Load raised by hydraulic hand pump or by hand winch (or electric)
  • Supplied with anti sparking features for offshore use.
  • Made in the UK
  • Each crane has been individually tested to 125% SWL as a complete unit
  • Test certificate / letter of conformity supplied with each crane
  • Come with a 12 month guarantee

Optional Features and Accessories

Listed below are some additional features that can be added to any of our Vertical Lift counterbalance floors cranes to customise the cranes, making it better suited to your working environment. All these features can also be supplied with our stainless steel cranes.

Out-riggers
Fork lift truck lifting pockets
Directional locking castors or anti static castors
optional outriggers optional fork truck pockets directional locking castors
Horizontal Jib Options - Fixed, Manual or Hydraulic adjustable
Jacking feet Lifting and slinging point for overhead crane
Jib Options optional jacking feet optional certified lifting points
Battery Powered Lift

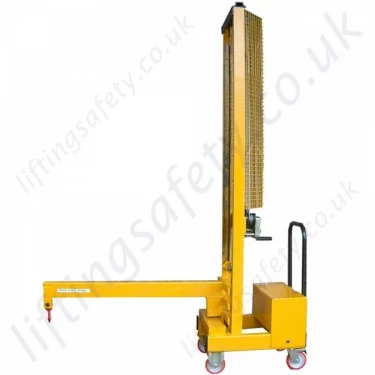

Jib raised by Hand Winch Jib raised by Hydraulic Hand Pump
Battery powered lift
Jib Rasied by Hand Winch Jib Rasied by Hydraulics
Paint finish suitable for offshore use or powder coated Power Travel Removable Jib Arm
Offshore paint spec Power Travel Horizontal Jib Arm
 Auxilliary adjustable height lifting Hook
