Gunnebo GrabiQ "MG2-EGKN" Twin Leg Chain Sling with "Master Link MGD and EGKN Sling Hook" Range from 1.5t to 14t

Model:

MG2-EGKN / GGTL-4009


This Page has now expired. Please view our complete range of Chain Slings Assemblies & Components or Contact us with your requirements for a possible suitable alternative.

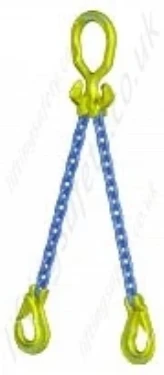

Gunnebo MG2-EGKN ready made twin leg chain slings with a unique master ring and sling safety hook.

Part no WLL α 0°-90° WLL α 90°-120° Master link Chain Hook Weight kgs/eff.length 2m Chain weight kg/m Comp.length mm
MG2-EGKN 6 mm 2.1 1.5 MGD-6-10 KLA-6-10 EGKN-6-10 4.1 2.0 230
MG2-EGKN 8 mm 3.5 2.5 MGD-8-10 KLA-8-10 EGKN-8-10 7.7 3.4 266
MG2-EGKN 10 mm 5.6 4.0 MGD-10-10 KLA-10-10 EGKN-10-10 12.0 5.4 332
MG2-EGKN 13 mm 9.5 6.7 MGD-13-10 KLA-13-10 EGKN-13-10 21.5 8.8 407
MG2-EGKN 16 mm 14.0 10.0 MGD-16-10 KLA-16-10 EGKN-16-10 32.7 13.4 480
  GrabiQ MGD Master Grab Gunnebo GrabiQ KLA Grade 10 Chain GrabiQ EGKN Sling Hook

Individual Components

Below you can find the individual specifications of the three components that make up a GrabiQ MG2-EGKN twin leg chain sling.

MGD Master Grab

The top suspended master link.

Code WLL t
Grabiq Mgd Master Grab Dimensions
L A E H Weight kgs
MGD-6-10 2.1 144 90 60 17 0.75
MGD-8-10 3.5 171 100 75 21 1.31
MGD-10-10 5.6 211 124 90 24 2.33
MGD-13-10 9.5 262 149 105 31 5.2
MGD-16-10 14 310 175 120 35 7.9

EGKN Sling Hook

Code WLL (t)
Grabiq Egkn Sling Hook Dimensions
L (mm) B (mm) G (mm) H (mm) Weight (kg)
EGKN-6-10 1.5 86 24 17 20 0.34
EGKN-8-10 2.5 95 28 17 23 0.53
EGKN-10-10 4 121 35 23 31 1.02
EGKN-13-10 6.7 145 42 28 38 2.27
EGKN-16-10 10 170 52 36 46 3.8
EGKN-20-10 16 209 61 42 60 7.6

KLA Grade 10 Chain

  • Heat Treatment: Hardened and tempered.
  • Note! For chain grade 10 the maximum in service temperature is 200°C.
  • Surface treatment: Blue painted.
  • Marking: 10G.
Code WLL (t) Chain Ø (mm)
Gunnebo Grabiq Kla Grade 10 Chain Dimensions
L (mm)
E (mm)
Weight (kg) MPF Breaking force (kN)
KLA-6-10 1.5 6 18 8 0.842 37 60
KLA-8-10 2.5 8 24 11 1.45 62.5 100
KLA-10-10 4 10 30 14 2.25 100 160
KLA-13-10 6.7 13 39 18 3.76 162 260
KLA-16-10 10 16 48 22 5.64 250 402
KLA-20-10 16 20 60 29 9.4 393 630

Unfortunately this product has been discontinued and/or is no longer available. Please contact us for details on possible alternative products.

This Page has now expired. Please view our complete range of Chain Slings Assemblies & Components or Contact us with your requirements for a possible suitable alternative.

Gunnebo MG2-EGKN ready made twin leg chain slings with a unique master ring and sling safety hook.

Part no WLL α 0°-90° WLL α 90°-120° Master link Chain Hook Weight kgs/eff.length 2m Chain weight kg/m Comp.length mm
MG2-EGKN 6 mm 2.1 1.5 MGD-6-10 KLA-6-10 EGKN-6-10 4.1 2.0 230
MG2-EGKN 8 mm 3.5 2.5 MGD-8-10 KLA-8-10 EGKN-8-10 7.7 3.4 266
MG2-EGKN 10 mm 5.6 4.0 MGD-10-10 KLA-10-10 EGKN-10-10 12.0 5.4 332
MG2-EGKN 13 mm 9.5 6.7 MGD-13-10 KLA-13-10 EGKN-13-10 21.5 8.8 407
MG2-EGKN 16 mm 14.0 10.0 MGD-16-10 KLA-16-10 EGKN-16-10 32.7 13.4 480
  GrabiQ MGD Master Grab Gunnebo GrabiQ KLA Grade 10 Chain GrabiQ EGKN Sling Hook

Individual Components

Below you can find the individual specifications of the three components that make up a GrabiQ MG2-EGKN twin leg chain sling.

MGD Master Grab

The top suspended master link.

Code WLL t
Grabiq Mgd Master Grab Dimensions
L A E H Weight kgs
MGD-6-10 2.1 144 90 60 17 0.75
MGD-8-10 3.5 171 100 75 21 1.31
MGD-10-10 5.6 211 124 90 24 2.33
MGD-13-10 9.5 262 149 105 31 5.2
MGD-16-10 14 310 175 120 35 7.9

EGKN Sling Hook

Code WLL (t)
Grabiq Egkn Sling Hook Dimensions
L (mm) B (mm) G (mm) H (mm) Weight (kg)
EGKN-6-10 1.5 86 24 17 20 0.34
EGKN-8-10 2.5 95 28 17 23 0.53
EGKN-10-10 4 121 35 23 31 1.02
EGKN-13-10 6.7 145 42 28 38 2.27
EGKN-16-10 10 170 52 36 46 3.8
EGKN-20-10 16 209 61 42 60 7.6

KLA Grade 10 Chain

  • Heat Treatment: Hardened and tempered.
  • Note! For chain grade 10 the maximum in service temperature is 200°C.
  • Surface treatment: Blue painted.
  • Marking: 10G.
Code WLL (t) Chain Ø (mm)
Gunnebo Grabiq Kla Grade 10 Chain Dimensions
L (mm)
E (mm)
Weight (kg) MPF Breaking force (kN)
KLA-6-10 1.5 6 18 8 0.842 37 60
KLA-8-10 2.5 8 24 11 1.45 62.5 100
KLA-10-10 4 10 30 14 2.25 100 160
KLA-13-10 6.7 13 39 18 3.76 162 260
KLA-16-10 10 16 48 22 5.64 250 402
KLA-20-10 16 20 60 29 9.4 393 630

Unfortunately this product has been discontinued and/or is no longer available. Please contact us for details on possible alternative products.
