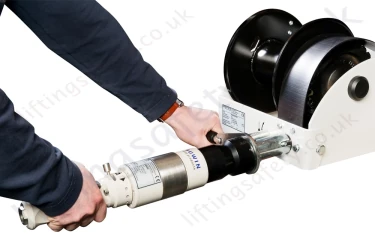

Gebuwin Winch Power Tool

Pneumatic (air) or Electric (230v 1ph) Powered Drive Tool for use with Gebuwin Hand Winches

Model:

GWPT-4757


Description

+

This pneumatic auxiliary motor and electrical auxiliary motors are intended as an alternative to the manual drive and are only used for brief and non-frequent usage. The combination of manual winch and electrical or pneumatic auxiliary motor is not an alternative to an electrical driven winch.

    • Robust slow speed drive units.
    • Easy to operate.
    • Reversible rotation.
    • Suitable for use on the following models: WW1000, 1500, 2000, 3000, 4000, 5000 and 7500.
    • Able to serve various winches on one plant because of a swift and easy connection system.

AM5000 Pneumatic Power Tool

  • Air motor.
  • includes filter and hose fitting.
  • Painted air motor and zinc plated adapter system.

EM5000 Electric Power Tool

  • Electric drill motor 230V-50Hz.
  • Metal gear head with MT4 holder.
  • Including zinc plated winch adapter, additional handle, drift key, suspension eyelet.

Technical Specifications

Model AM5000 EM5000
Power 1200W 900W
Air pressure Max. 6-8 Bar -
Voltage – frequency - 230V-50Hz
Free Speed 140rpm 100rpm
Speed at max. power (torque) 60rpm (60-90 Nm) 60rpm (50-70 Nm)
Dimensions L x H x B (mm) 545 x 76 x 277 510 x 530 x 150
Weight 5kg 13kg
Air Consumption at max. power 2100 l/min -
Min fitting / hose dia. (inside) 10,4/15mm -
Cable length with plug (m) - 2.5m

This pneumatic auxiliary motor and electrical auxiliary motors are intended as an alternative to the manual drive and are only used for brief and non-frequent usage. The combination of manual winch and electrical or pneumatic auxiliary motor is not an alternative to an electrical driven winch.

    • Robust slow speed drive units.
    • Easy to operate.
    • Reversible rotation.
    • Suitable for use on the following models: WW1000, 1500, 2000, 3000, 4000, 5000 and 7500.
    • Able to serve various winches on one plant because of a swift and easy connection system.

AM5000 Pneumatic Power Tool

  • Air motor.
  • includes filter and hose fitting.
  • Painted air motor and zinc plated adapter system.

EM5000 Electric Power Tool

  • Electric drill motor 230V-50Hz.
  • Metal gear head with MT4 holder.
  • Including zinc plated winch adapter, additional handle, drift key, suspension eyelet.

Technical Specifications

Model AM5000 EM5000
Power 1200W 900W
Air pressure Max. 6-8 Bar -
Voltage – frequency - 230V-50Hz
Free Speed 140rpm 100rpm
Speed at max. power (torque) 60rpm (60-90 Nm) 60rpm (50-70 Nm)
Dimensions L x H x B (mm) 545 x 76 x 277 510 x 530 x 150
Weight 5kg 13kg
Air Consumption at max. power 2100 l/min -
Min fitting / hose dia. (inside) 10,4/15mm -
Cable length with plug (m) - 2.5m

Pricing

Guide Price

£3880.00
